Vacuum filling machines for cooked ham & sausages

Achieve precise portioning and enhanced product quality with this advanced vacuum filling solution designed for high-speed, gentle processing of diverse food applications, ensuring minimal waste and exceptional weight accuracy.

Portions and Fills Food and Pet Products

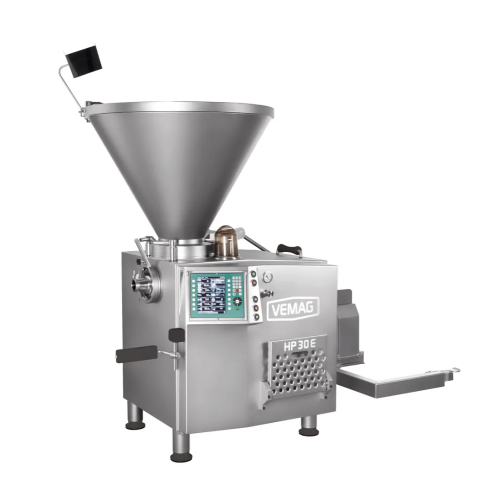

The VEMAG HPnx Series Vacuum Filling Machines provide precision portioning and filling solutions for diverse food and pet food manufacturers. Utilizing a robust double screw and VEMAG Duo Drive system, these machines ensure gentle processing with minimal residue, maintaining product integrity throughout. Ideal for producing end-products like sausages, burgers, and ready-to-eat meals, they feature an expansive filling capacity of up to 8,700 kg per hour. Engineered for seamless integration into automated production lines, they support continuous, high-speed operations with exceptional weight accuracy across varying consistencies. Crafted from corrosion-resistant materials for versatile applications, the machines meet EU food safety regulations, ensuring hygienic processing with straightforward cleaning protocols. Customizable options and comprehensive engineering support ensure optimal adaptation to specific production requirements.

Benefits

  • Enhances production precision, minimizing product waste with accurate portioning.
  • Increases operational efficiency with high-speed, continuous filling capability.
  • Ensures product quality through gentle handling and minimal residue.
  • Supports diverse product lines, from vegetarian to pet food, with versatile processing.
  • Reduces maintenance costs with durable construction and easy cleaning features.

General


Applications
Convenience foods,Baked goods,Snacks,Pet food,Wet pet food,Confectionery,Fine baked goods,Vegan products,Vegetarian products,Cooked ham,Cheese products,Sausages,Fresh meat,Natural raw pet food
End products
Chocolate truffles,Breakfast sausages,Vegan cheese blocks,Vegetarian burger patties,Canned dog food,Whole muscle cooked ham,Kibble for dogs,Cream cheese spreads,Raw chicken pet food,Ground beef patties,Croissants,Bratwurst sausages,Ready-to-eat lasagna,Protein bars,Brioche buns
Steps before
Grinding,Mixing,Emulsification
Steps after
Linking,Hanging,Cutting,Clipping,Packaging
Input ingredients
pasty foods,doughs,soft masses,stiff masses,chunky ingredients,meat doughs,plant-based products,gourmet salads
Output ingredients
cooked ham,sausages,minced meat,dry sausage,convenience foods,vegan products,formed products,multi-lane filled products
Market info
VEMAG Maschinenbau is known for its expertise in manufacturing high-quality machinery for food processing, particularly for meat and bakery products, providing innovative, reliable, and efficient solutions to enhance production capabilities in the industry.

Technical Specifications


Portioning Speed
Up to 820 portions per minute
Filling Capacity
Up to 10 t/h
Filling Capacity
Up to 8,700 kg/h
Portion Size
5 g to 99,999 g
Accuracy
Weight accurate
Vacuum System
Total Vacuum System with TVS149
Outlet Cross-section
100 mm
Drives
VEMAG Duo Drive
Touch Display
12 inch
Operation Mode
Intuitive touch display
Double Screw Technology
Yes

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
Cleaning method
CIP / Manual
CIP/SIP
CIP 121°C / SIP 135°C
Energy efficiency
0.5–2 kWh/kg moisture

Material Compatibility


Abrasion resistance
High abrasion-resistant materials
Biological compatibility
Food-grade materials
Cleanability
Steam and water resistant
Corrosive resistance (e.g. acids)
Stainless steel or equivalent
Density/particle size
Handles various densities and particle sizes

Physical Characteristics


Control panel type
12 inch touch display
Discharge method
Double screw

Custom Options


Control panel type
Intuitive touch display
Integration possibilities
Compatible with all common clipping machines
Drive system
VEMAG Duo-Drive with two separate drives
Machine adaptation
Adaptable to product and customer's requirements
Operation versatility
For small and industrial scale solutions
