Vacuum dissolver for highly viscous products

Efficiently mix and disperse high-viscosity substances under vacuum to ensure uniformity and minimize air inclusions, critical for producing quality coatings, adhesives, and other viscous materials.

Dispenses High-Shear Mixing and Homogenization

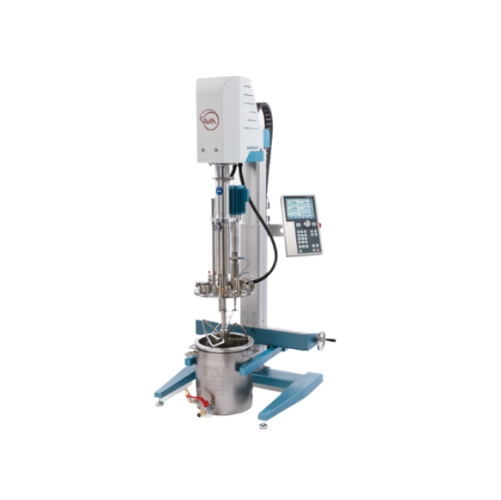

The DISPERMAT® SC Series dissolvers from VMA-GETZMANN excel in high-shear mixing and homogenization for challenging industrial applications. With a robust build, these dissolvers efficiently disperse high-viscosity products such as automotive paints and pharmaceutical compounds. Equipped with powerful, adjustable-speed motors, they handle product volumes ranging from 30 to 2000 liters. The PLC integration ensures precise control and seamless production line integration, while the optional ATEX certification offers explosion protection in hazardous environments. Built from durable materials like stainless steel, these dissolvers reduce energy consumption through optimized motor control, making them ideal for both batch and continuous operations. Customizable features and engineering support ensure you get a solution tailored to your specific needs, while an easy-to-clean design minimizes downtime.

Benefits

  • Enhances productivity with consistent high-shear mixing and homogenization.
  • Lowers operational costs through energy-efficient motor optimization.
  • Ensures safety and compliance with optional ATEX explosion protection.
  • Facilitates seamless integration into diverse production lines with PLC control.
  • Minimizes maintenance downtime with easy-to-clean components.

General


Applications
Natural paints,Sealants,Primers,Textile inks,Silicones,Cosmetics,Automotive paints,Printing inks,Emulsion paints,Latex paints,Carbon materials,Fillers,Architectural coatings,Ceramic coatings,Polishing agents,Wood coatings,Agrochemicals,Fuel cell materials,Screen printing inks,Food products,Pharmaceuticals,Battery materials,Adhesives,Digital printing inks
End products
Over-the-counter vitamin pills,Silicone grease,Acrylic emulsion paints,Hydrogen fuel cell membranes,Exterior wall paint,Polyurethane wood varnish,Polyurethane adhesives,Acrylic sealants,Partially pyrolyzed carbon black,Reactive dye textile ink,Epoxy primers,Synthetic latex paint,Corn herbicides,Automotive base coat,Car wax,Natural face cream,Lithium-ion battery cathode,Uv-curable digital ink,Spice extract blends,Porcelain glaze,Offset printing inks,Poster screen printing ink,Organic lime paint,Polyester fillers
Steps before
Pre-dispersion,Mixing,Raw material preparation,Grinding
Steps after
Fine dispersion,Quality control,Filling,Packaging
Input ingredients
slurries,raw materials,color pigments,active ingredients,excipients,spices,food dyes,nanotubes
Output ingredients
homogeneous distribution,high-quality product,finely ground pigments,uniform color strength,stable dispersion,high-viscosity products,non-flowing substances
Market info
VMA-Getzmann is renowned for manufacturing high-quality dispersing, mixing, and milling equipment, particularly for the chemical, coatings, and inks industries, specializing in engineered-to-order solutions that emphasize innovation, reliability, and technical excellence.

Technical Specifications


Power
15 – 55 kW
Product Capacity
30 – 2000 litres
Control
CN / C / SC / PLC
Speed
30 – 1500 rpm
Torque
20 – 276 Nm
Height Adjustment
Electric
Weight
200 – 250 kg
Product Volume
4 – 14 litres
Repeatability
Constant speed or power input
Data Recording
Graphical indication
Connectivity
USB (Wi-Fi,LAN expected in 2022)
Explosion Protection
ATEX Zone 0/1/2
Software
WINDISP 7©
Safety Module
TÜV Certified

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Cleaning method
CIP / Manual
Energy efficiency
0.5–2 kWh/kg moisture
Process control
Repeatable dispersion results
Automation level
Manual / PLC-controlled

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


TÜV certification
Safety module (EN ISO 13849-1)

Physical Characteristics


Footprint dimensions
81 x 190 x 80 cm
Machine weight
200 - 250 kg
Height adjustment
Electric

Custom Options


Control panel type
CN / C / SC / PLC
Height adjustment
Electric
Connectivity
USB / Wi-Fi / LAN (expected in 2022)
Option
ATEX explosion protection
Software
WINDISP© 7 for documentation,research,and QA
Safety
TÜV certified DISPERSAFE® safety module
