Twin shaft horizontal batch mixers for homogenous material mixing

Achieve consistent and rapid mixing of diverse materials with twin shaft horizontal batch mixers, enhancing batch-to-batch repeatability and flexibility for various production needs while keeping the operational footprint minimal.

Mixes and Homogenizes Diverse Material Types

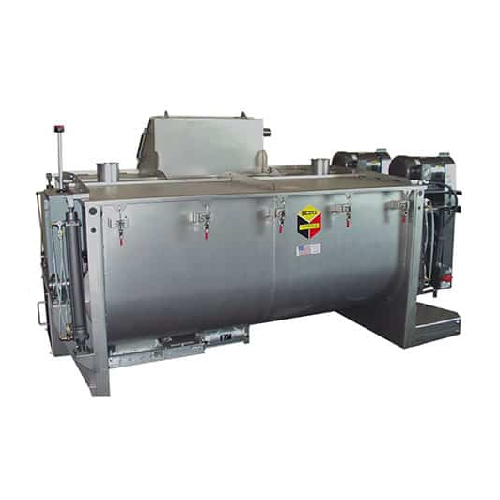

The Twin Shaft Horizontal Batch Mixer from Scott Equipment Company excels in delivering precise mixing and homogenizing for a wide range of materials, including solids, powders, granules, and slurries. Utilizing a dual agitator design with counter-rotating ribbon and paddle features, it ensures balanced, uniform mixing critical for applications such as animal feed production, bakery blends, and chemical compounding. Capable of processing various batch sizes efficiently, this mixer supports rapid cycle times with repeatable results, accommodating a throughput of up to 1500 ft³. Designed for seamless integration into your production line, the TSM Series offers customization in discharge mechanisms and seal configurations to meet specific operational demands. It operates with a Class II standard shaft mount drive and optional gearhead reducer, enhancing energy efficiency. Constructed with sanitary optional seals, it supports rigorous cleaning protocols, ensuring minimal downtime. This mixer complies with industry standards and provides prolonged operational durability, backed by a 10-year warranty on its main shaft.

Benefits

  • Shortens cycle times significantly, enhancing overall production efficiency.
  • Achieves consistent blend quality, ensuring product uniformity and reliability.
  • Adapts to varying batch sizes, optimizing equipment utility across different runs.
  • Simplifies installation with a low-profile design, fitting easily into existing facilities.
  • Enhances operational lifespan with a durable design backed by a 10-year warranty.

General


Applications
Mineral mix,Bakery products,Chemicals,Wood pulp,Bird seed,Potash,Soybean meal,Animal feed,Pet food,Fertilizer,Food ingredients,Plastics,Calcium carbonate,Soil compost,Cement/aggregate,Grass seed,Cereal,Milk replacer,Quick lime,Gypsum,Vitamin premix
End products
Dog biscuits,Concrete mix,Grass turf mix,Lime powder,Pvc compounds,Mineral booster,Granola clusters,Multivitamin tablets,Drywall panels,Calcium supplement,Soy protein isolate,Layer mash,Paper pulp,Pastry mix,Cornflakes,Bird feed blend,Milk powder,Cat food,Bread dough,Plastic resin pellets,Nutritional yeast blends,Fertilizer granules,Bio-compost,Plant nutrients,Pet kibble,Tofu
Steps before
Drying,Grinding,Size Reduction,Ingredient Weighing,Material Preparation
Steps after
Packaging,Coating,Material Handling,Storage,Distribution
Input ingredients
animal feed,bakery products,bird seed,calcium carbonate,cereal,fertilizer,food ingredients,grass seed,gypsum,mineral mix,quick lime,vitamin premix,soybean meal,soil compost,pet food,wood pulp,milk replacer,potash
Output ingredients
homogenous mixture,balanced mixture,efficient mixing results
Market info
Scott Equipment is known for its expertise in custom-designed industrial mixing and processing equipment, catering to diverse industries with a strong reputation for quality, innovation, and customer-focused engineered-to-order solutions.

Technical Specifications


Mixing efficiency
High
Cycle time
2–3 minutes
Mix time
As low as 30 seconds
Mixing Profile
Twin Shaft Horizontal
Batch size range
1 ft³ to 1500 ft³
Paddle and ribbon agitators
Counter-rotating
Height
Low profile
Capacity
Customizable
Profile
Lower overall horizontal mixer profile

Operating Characteristics


Working mechanism
Twin shaft counter-rotating ribbon and paddle agitators
Cycle time
As low as 30 seconds
Batch vs. continuous operation
Batch
Automation level
Manual / PLC
Cleaning method
Adjustable paddles for flexibility
Customization
Variety of discharge gate and seal options
Profile
Low profile design
Material handling
Can mix a wide variety of batch sizes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Batch Size Flexibility
Wide variety of batch sizes

Physical Characteristics


Machine footprint
Low profile due to low diameter to length ratio
Discharge method
Custom-designed gates,ranging from 2″ to 36″
Agitator type
Ribbon and paddle agitators
Batch size range
1 ft³ to 1500 ft³
Cycle time
As low as 2-3 minutes

Custom Options


Discharge gate size
2″ to 36″ in diameter
Control panel type
Customizable
Seal type
ULTRA Sanitary Seal,USDA 3A Dairy standard seal,Air Purge Seal
Agitator type
Ribbon and paddle
Agitator options
Adjustable paddles and speed
Profile design
Low profile for height limitations
