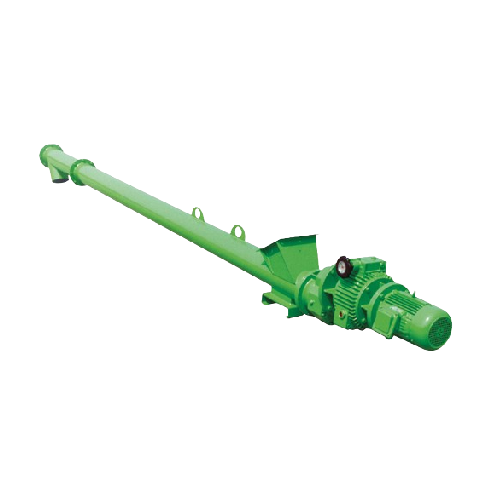

Tubular ribbon flight screw feeder for lime feeding

Experience uniform material flow and precise dosing with this specialized screw feeder designed to handle hydrated lime and bulk solids efficiently in high-speed continuous operations.

Ensures Consistent Dosing and Conveying of Lime

The Tubular Ribbon Flight Screw Feeder PR from WAMGROUP stands out due to its specialized ribbon flight design tailored for precise lime dosing applications. This feeder ensures uniform discharging from silos into dissolvers or micro-feeding devices, catering to industries like chemicals, construction, and food processing. With outside tube diameters ranging from 70 mm to 168 mm, it offers flexibility in integration with various systems. The unit features a direct-mounted WAM gear reduction unit with optional mechanical variable speed control for energy-efficient operation, reducing energy consumption and wear on components. Feeding rates range between 70 to 4,500 liters per hour, making it suitable for both small and large-scale operations across continuous high-speed processes. Constructed with durability in mind, it boasts corrosion-resistant materials ideal for handling hydrated lime and other bulk solids. Maintenance is simplified with standard inspection hatches and a maintenance-free end bearing assembly, ensuring minimal downtime in busy production environments.

Benefits

  • Ensures uniform material flow, enhancing consistency in product quality.
  • Reduces wear and operating costs through energy-efficient variable speed controls.
  • Simplifies maintenance with maintenance-free bearings and accessible inspection hatches.
  • Prevents material flushing, maintaining precise dosing and reducing wastage.
  • Accommodates a broad range of operational capacities, supporting both small and large-scale production.

General


Applications
Food,Chemicals,Feed,Heavy industries,Bulk solids,Hydrated lime,Plastics,Lime dosing
End products
Cosmetic powders,Nutraceutical blends,Lime wash,Polyethylene granules,Epoxy resins,Vitamin pre-mixes,Animal feed supplements,Lime slurry,Industrial detergents,Steel products,Lime mortar,Pvc compounds,Calcium hydroxide powder,Fertilizers,Cement
Steps before
Silo Storage,Hydrated Lime Feeding,Dosing Preparation
Steps after
Dissolving,Micro-Feeding,Dosing Plant Operations
Input ingredients
hydrated lime,material in silo
Output ingredients
dissolver,micro-feeding device,uniform material flow
Market info
WAMGROUP is known for its expertise in manufacturing bulk material handling and processing equipment, including screw conveyors, dust collectors, and valve systems, with a strong reputation for innovation, quality, and global market presence.

Technical Specifications


Outside Tube Diameters
70 mm (2.8 in),82 mm (3.2 in),114 mm (4.5 in),168 mm (6.6 in)
Feed Rates
70 ~ 4,500 litres per hour (0.04 ~ 2.6 cfm)
Installed Drive Power
0.37 kW (0.5 HP) ~ 3.0 kW (4.0 HP)
Uniform Material Flow
Yes
High Feeding Accuracy
Yes
Flange Mounted Electric Motor
Standard
Variable Speed Drive
Optional
Tubular Casing
Standard Flanged Sections
Direct-mounted Gear Reduction Unit
With or Without Mechanical Variable Speed Drive

Operating Characteristics


Material flow
Uniform
Feeding accuracy
High
Automation level
Variable speed drive
Batch vs. continuous operation
Continuous
Energy efficiency
Direct-mounted motor system
Changeover time
Standard inspection hatch

Material Compatibility


Abrasion resistance
High
Corrosive resistance (e.g. acids)
Suitable for hydrated lime
Density/particle size
Variable
Suitable for hydrated lime powder
Cleanability
Standard inspection hatch for maintenance

Physical Characteristics


Outside tube diameters
70 mm (2.8 in),82 mm (3.2 in),114 mm (4.5 in),168 mm (6.6 in)
Tubular casing
Standard flanged sections with one section made to measure
Inspection hatch
Beneath inlet
Ribbon flight screw
Splined shaft couplings
Drive type
Direct-mounted WAM gear reduction unit
Control panel type
Standard flange-mounted electric motor
Feed rates
70 ~ 4,500 litres per hour (0.04 ~ 2.6 cfm)
Installed drive power
0.37 kW (0.5 HP) ~ 3.0 kW (4.0 HP)
Fluidised inlet hopper
Optional
Fluidisation pads
Optional

Custom Options


Control panel type
Standard flange-mounted electric motor
Discharge method
Uniform material flow
Variable speed drive
Available
