Triple shaft mixer for high viscosity products

Achieve uniform mixing and dispersion for high-viscosity materials with triple shaft functionality, ensuring optimal product consistency and efficient heat transfer throughout your process.

Mixes and Disperses High-Viscosity Materials

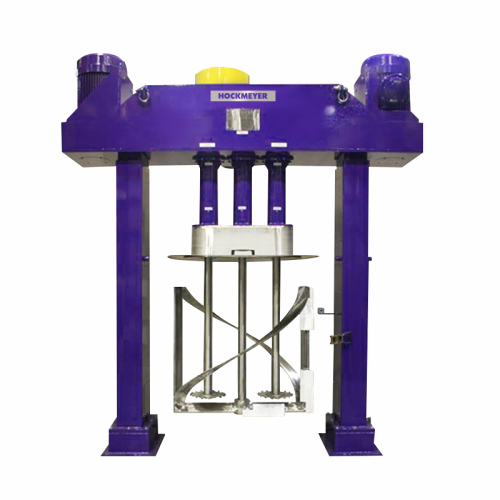

The HHL-III Triple Shaft Mixer/Disperser from Hockmeyer Equipment Corporation is designed to tackle the challenges of processing high-viscosity materials in industries such as chemicals, adhesives, and cosmetics. This equipment excels by integrating a low-speed helical or anchor blade with multiple high-speed dispersion shafts, ensuring thorough mixing and efficient shear forces to achieve uniform dispersion. It is well-suited for applications involving printing inks, sealants, caulks, and more, delivering consistent results in end-products like epoxy sealants and moisturizing creams.

Operating in capacities from laboratory units to 3500 gallons, the HHL-III can be customized with stainless steel or carbon steel construction for corrosion resistance and hygiene. Vacuum, pressure, or atmospheric operation options ensure flexibility in deployment. Energy efficiency is enhanced through inverter-driven motors, reducing energy consumption, and extending the lifespan of components. Compliance with safety standards is assured, making it suitable for hazardous environments.

The mixer’s design facilitates easy cleaning and maintenance with configurations available for different process conditions. With customizable engineering support, the HHL-III can be tailored to meet specific production demands, ensuring an optimal fit into your processing line.

Benefits

  • Ensures uniform product quality with efficient blending and dispersion of high-viscosity materials.
  • Reduces energy costs with inverter-driven motors and optimized tip speeds.
  • Enhances process flexibility with vacuum, pressure, or atmospheric operation options.
  • Minimizes maintenance downtime through easy-to-clean design.
  • Customizable configurations support diverse production requirements and precise process control.

General


Applications
Sealants,Hot melt adhesives,Printing inks,High-viscosity materials,Caulks,Toothpaste,Magnetic media slurry,Lotions,Creams
End products
Lip balm,Packaging ink,Epoxy resin,Anti-aging lotion,Pressure-sensitive adhesive,Epoxy sealants,Moisturizing cream,Whitening toothpaste,Hard disk magnetic fluid,Silicone caulk
Steps before
Ingredient Preparation,Pre-Mixing,Grinding
Steps after
Homogenization,Filling,Packaging
Input ingredients
printing inks,sealants,caulks,hot melt adhesives,magnetic media slurry,creams,lotions,toothpaste,solids,liquids
Output ingredients
dispersed materials,dissolved ingredients,emulsified liquids
Market info
Hockmeyer Equipment is known for manufacturing high-quality industrial mixing and dispersion equipment. They specialize in ETO solutions for industries like paints, inks, and chemicals, renowned for innovation, reliability, and superior engineering.

Technical Specifications


Mixing Capacity
Laboratory units to 3500 gallons
Motor Type
Inverter driven motors
Material of Construction
Stainless steel or carbon steel
Blade Configuration
Helical and anchor sweep low-speed blade,various high-speed blades
Operation Type
Vacuum,pressure,or atmospheric
Environment Suitability
Hazardous or safe environments
Tip Speed
4500 FPM for high-speed,varying for low-speed
Holding Capacity
Varies from 2 to 3190 gallons
Working Capacity
Varies from 1.5 to 1000 gallons
Tank Size
Varies,e.g.,19.25 x 17 inches to 72 x 62 inches

Operating Characteristics


Working mechanism
Triple shaft mixing with low-speed and high-speed blades
Integrated steps
Mixing,dispersion,and shear in one unit
Batch vs. inline flow
Batch
Automation level
Inverter driven motors for adjusted speed
Cleaning method
Manual / CIP
Energy efficiency
Lower horsepower usage

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel or carbon steel material

Product type Characteristics


Viscosity range
Medium to very high
Heat sensitivity
High

Physical Characteristics


Machine footprint
Varies based on model size
Tank size
2 gallons to 1000 gallons
Tank diameter/height
19.25 x 17 inches to 72 x 62 inches
Material of construction
Stainless steel or carbon steel
Configuration
Hoist or tank mounted
Blade type
Helical and anchor sweep low-speed blade,various high-speed blades available
Blade diameter
Varies based on model and blade type

Custom Options


Configuration
Hoist or tank mounted
Material of construction
Stainless steel or carbon steel
Operation type
Vacuum,pressure,or atmospheric
Environment suitability
Hazardous or safe environments
Blade type
Helical and anchor sweep,various high-speed blades
