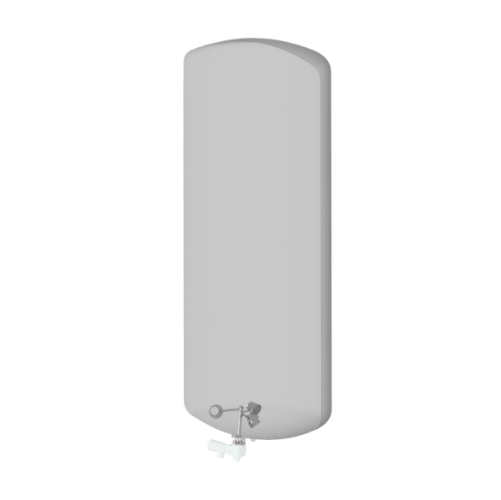

Tank agitator for low-level installation

Efficiently optimize your mixing processes with a bottom-entry tank agitator, designed for easy maintenance and adaptability to a wide range of volumes and viscosities. Enhance your production line by ensuring precise blending, stirring, and mixing, while facilitating seamless integration without compromising on cleanliness and operational safety.

Optimizes Mixing and Stirring in Industrial Tanks

The VISCO JET® VJ600 from VISCO JET Rührsysteme GmbH is a bottom-entry tank agitator designed to enhance mixing performance for a range of industrial applications, including chemicals, pharmaceuticals, and food & beverages. With its robust construction, it handles volumes from 10 to 1,500,000 liters, catering to both pilot and large-scale operations.

What sets the VJ600 apart is its integration of a slow-speed stirring mechanism that reduces energy consumption while maintaining superior mixing results. This agitator supports various VISCO JET® stirring organs, making it adept at processing low, medium, and high-viscosity products such as acrylic paints, face creams, and solvent solutions.

The VJ600 features a maintenance-friendly design with low wear components, ensuring durability and minimal downtime. It meets ATEX Zone 0 requirements for safe operation in explosive environments and is constructed from high-grade stainless steel, offering excellent chemical resistance. For ease of cleaning, it supports CIP solutions.

Compliant with EU directives on machine safety and electromagnetic compatibility, this agitator can be customized with different sealing options based on operational needs. The technical support from VISCO JET ensures seamless integration into your production line, addressing specific process challenges with tailored solutions.

Benefits

  • Enhances product consistency with efficient mixing of high-viscosity media.
  • Lowers operational costs by minimizing energy consumption with slow-speed stirring.
  • Simplifies maintenance with easy access and low wear components.
  • Ensures safety and regulatory adherence with ATEX compliance for explosive environments.
  • Adapts to diverse industrial needs with customizable stirring options.

General


Applications
Chemicals,Paints and coatings,Confectionery,Cosmetics,Food and beverages,Petrochemicals,Mining,Soaps,Paper,Dairy products,Pharmaceuticals
End products
Cheese mixtures,Lubricant additives,Face creams,Mineral processing slurries,Detergent solutions,Active pharmaceutical ingredients (apis),Chocolate coatings,Dyestuffs,Fruit syrups,Acrylic paints,Bleaching pulp
Steps before
Blending,Mixing,Homogenization
Steps after
Filling,Bottling,Sealing
Input ingredients
niedrigviskose Medien,mittelviskose Medien,hochviskose Medien,Lebensmittel,kosmetische Produkte,chemische Stoffe,Automotive Flüssigkeiten
Output ingredients
homogene Mischungen,perfekte Rührergebnisse
Market info
Visco Jet Ruhrsysteme is known for manufacturing advanced mixing and stirring equipment, particularly industrial agitators, which are engineered-to-order for various industries. Their expertise lies in efficient and tailored mixing solutions with a strong reputation for innovation and quality.

Technical Specifications


Antriebsleistung
ab 0,12 kW
Spannungsversorgung
Individuelle Spannung
Wellendurchmesser
ab 15 mm
Rührvolumen
10 bis 1.500.000 Liter
Gleitringdichtung
Einfach- oder doppeltwirkend
Material der Rühreinheit
Edelstahl 1.4301/1.4404/1.4571
Drehzahl
Niedrige Drehzahlen
Energieeffizienz
Langsamlaufendes Rührsystem mit niedrigen Antriebsleistungen

Operating Characteristics


Volume Range
10 – 1,500,00 Liters
Application Flexibility
Food,ATEX areas
Installation Type
Bottom Entry
Maintenance Access
Beneath Tank
Rührorgane Options
Low,Medium,High Viscosity Media
Energy Efficiency
Low Drive Power
Wartungsfreundlich
Low Wear Rate
Cleaning Method
Simple,CIP Suitable
Automation Level
Customizable

Material Compatibility


Corrosive resistance (e.g. acids)
Stainless steel 1.4301/1.4404/1.4571
Cleanability
CIP compatible


ATEX Certification
ATEX Zone 0
CE Marking
2014/34/EU
Machine Safety
2006/42/EU
Electromagnetic Compatibility
2014/30/EU
Electrical Equipment Safety
2014/35/EU

Physical Characteristics


Machine footprint
Compact design

Custom Options


Control panel type
PLC / HMI integration
Compact footprint
Yes
Modular design
Yes
Material finish
Electrolytically polished / Ground
Dosing system
Manual / Automated
Customization of Rührorgane
SPIRAL / CLASSIC / CRACK / STEP3 / CUE
Damping system
Available
Variable speed control
Yes
CIP compatibility
Yes
ATEX certification
Zone 0 compatible
