Tall form dryer for producing large non-agglomerated particles

Achieve precise particle size control and optimal moisture removal with tall form dryers, designed for the continuous production of large spherical particles under gentle, low-pressure conditions.

Produces Large Spherical Powder Particles

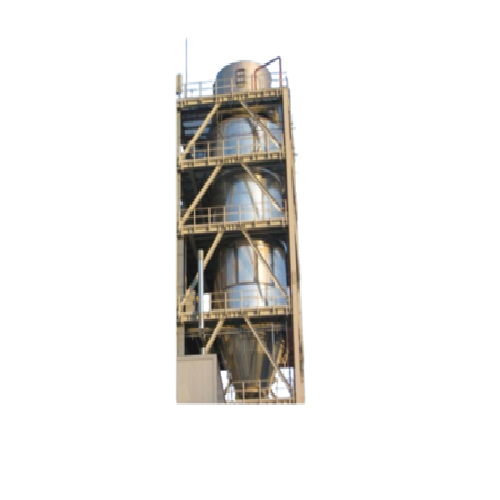

The Anhydro Tall Form Dryer is engineered to meet the specific needs of large-scale powder production across diverse industries, from dairy to pharmaceuticals. Designed for precision, it utilizes low-pressure atomization, introducing drying air as a laminar flow to ensure gentle and uniform particle drying. Tall Form Dryers are particularly suited for applications that require the production of large, non-agglomerated powders, such as milk powder, protein supplements, and pharmaceutical ingredients.

With its robust design, it can handle continuous operation, optimizing processing capacity without sacrificing product quality. The drying system effectively reduces energy consumption by maintaining optimal residence time within its large cylindrical chamber, resulting in efficient moisture removal under controlled conditions. Integration into an existing production line is seamless, with options for further drying or cooling in an external fluid bed.

The equipment is built to withstand the rigors of industrial processing, with material options suitable for various chemical compatibilities. It complies with relevant industrial standards and offers customization in terms of chamber size and operational settings. Maintenance is streamlined with easy access interfaces, and comprehensive engineering support is available to tailor the system to specific production needs.

Benefits

  • Minimizes energy usage through optimized low-pressure drying process.
  • Ensures consistent particle size, enhancing product quality across applications.
  • Facilitates seamless integration with existing systems, supporting process flow continuity.
  • Enhances product safety with materials that meet industry compliance standards.
  • Simplifies maintenance, reducing operational downtime and costs.

General


Applications
Personal care,Beverages,Chemical processing,Pet food,Nutraceuticals,Fats,Plant-based food,Oils,Plant-based drinks and food,Dairy powders,Food processing,Baby food,Pharmaceutical
End products
Active pharmaceutical ingredients,Infant formula,Almond milk powder,Dog food supplements,Fish oil powder,Milk powder,Polymer emulsions,Coconut oil powder,Flavored drink mix,Vitamin-enriched beverages,Protein supplements,Soy protein isolate,Instant coffee,Face powder
Steps before
Purification,Emulsification,Grinding,Mixing,Homogenization
Steps after
Cooling,Fluid Bed Drying,Separation,Packing,Storage
Input ingredients
feed material,atomized feed
Output ingredients
large spherical single particles,non-agglomerated particles,large particles,main powder,fines,dried powder,cooled powder,300-800 microns particles
Market info
SPX Flow is renowned for its expertise in manufacturing industrial ETO equipment, specializing in fluid handling and processing solutions. They are recognized for innovation, reliability, and providing efficient solutions across diverse industries, including food, beverage, and industrial markets.

Technical Specifications


Particle Size
300 - 800 microns
Atomization Pressure
Low-pressure
Drying Air Flow
Co-current
Residence Time
Sufficient for large particles
Discharge Method
At chamber bottom
Air Outlet Design
With a bustle for minimization of dust fraction

Operating Characteristics


Working Mechanism
Atomization at low-pressure co-current with drying air
Integrated Steps
Initial drying in chamber,further drying/cooling in external fluid bed
CIP/SIP
CIP principles
Airflow Type
Laminar flow in the chamber
Particle Size Control
Produces 300-800 microns particles
Dust Fraction Control
Minimized by designing air outlet bustle
Batch vs. Continuous Operation
Details not specified

Material Compatibility


Density/particle size
300–800 microns

Product type Characteristics


Agglomeration risk
Minimized

Physical Characteristics


Machine footprint
Large cylindrical section
Feed method
Low-pressure atomization
Discharge method
Main powder discharged at chamber bottom
Particle size
300 - 800 microns
Shape
Tall form,large cylindrical section

Custom Options


Atomization method
Low-pressure co-current atomization
Discharge method
Chamber bottom discharge with external fluid bed
Separation system
Bustle on cylinder for air outlet
Drying chamber design
Large cylindrical section
Cooling option
External fluid bed cooling
