Tablet coating system for aqueous, solvent, and sugar films

Achieve precision coating with flexible application capabilities for tablets, allowing efficient film layering with minimized marking and uniform finish, essential for diverse production environments.

Coats Tablets and Supplements Efficiently

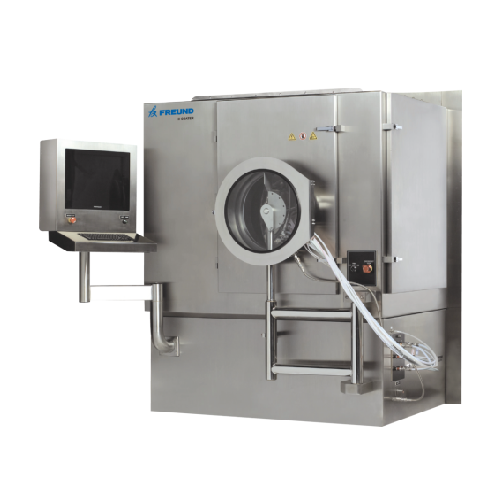

The Fully Perforated HI-COATER® from Freund is designed to meet the diverse coating demands of pharmaceutical and nutraceutical industries. Specializing in the film, sugar, and solvent coating processes, this system enhances coating uniformity and efficiency through its innovative AT-PRO™ Anti-Bearding Spray Gun. It accommodates batch ranges from 10% to 100% of brim volume, making it versatile for varying production needs. Operating with a precise control system, it integrates seamlessly into both batch and continuous operations with options for inline PAT monitoring. The EcoClean™ technology and no-drip design contribute to reduced resource consumption and improved process safety. Engineered for compliance with GMP standards, it features a sanitary mirror-smooth finish for easy cleaning. The system can be further customized with options for the Smart-Safe™ containment system and COMPUTMAutomated Control System, ensuring it meets specific production and regulatory requirements.

Benefits

  • Enhances coating uniformity and efficiency, reducing rework and material waste.
  • Streamlines cleaning processes with removable baffles and EcoClean™ technology, minimizing production downtime.
  • Optimizes resource use through precise control of atomization and pattern air, cutting energy and solvent costs.
  • Provides flexible production capabilities with batch ranges from 10% to 100%, accommodating diverse manufacturing needs.
  • Ensures compliance with GMP standards, supporting regulatory adherence and product quality.

General


Applications
Vitamins,Supplements,Pharmaceutical tablets,Nutraceuticals,Sweets,Coating materials
End products
Ibuprofen tablets,Vitamin d tablets,Herbal supplement tablets,Sugar-coated sweets,Omega-3 capsules,Chocolate-coated candies,Aspirin tablets
Steps before
Granulation,Drying,Continuous Dry Granulation,Wet Granulation,Top Spray Granulation,Powder Coating
Steps after
Packing,Tablet Pressing,Packaging
Input ingredients
aqueous coating materials,solvent-based coating materials,sugar coating materials,tablets,bulk materials with 0.8 g/cc density
Output ingredients
coated tablets,film-coated tablets,sugar-coated tablets,solvent-coated tablets
Market info
Freund is known for its expertise in granulation and coating technology, supplying high-quality industrial equipment for pharmaceutical, chemical, and food industries. Renowned for innovation and reliability, Freund consistently delivers engineered-to-order solutions tailored to client needs.

Technical Specifications


Film Coating Processes
Aqueous,Solvent,Sugar
Batch Range
10% to 100% of Brim Volume
Pan Diameter
1,219 mm (48") / 1,524 mm (60") / 1,676 mm (66")
Spray Guns
4-12
Batch Size
Varies by model
Automation
Automatic (Recipe-Driven) and Manual Modes
Control System
Validatable Control System Optional COMPU™
Coating Uniformity
Precise Control of Atomization and Pattern Air
Energy Efficiency
Improved Thermodynamic Design
Cleaning Method
Continuous Weld Pan Housing
Exhaust Plenum
Streamline for Easy Lifting and Cleaning
Coating Thickness Monitoring
Real Time
Containment
Smart-Safe™ Optional
PAT Monitoring
Inline Optional

Operating Characteristics


Batch vs. continuous operation
Batch
Cleaning method
CIP / Manual
Automation level
Automatic (Recipe-Driven) and Manual Modes
Control system
Color Touch Screen Control System
Temperature control
Improved Thermodynamic Design
Energy efficiency
EcoClean™ Technology Optional
Spray system
AT-PRO™ Anti-Bearding Spray Gun
Coating uniformity
Precise Control of Atomization and Pattern Air
Spray bar calibration
Easily Removable Spray Bar
Real-time monitoring
Inline PAT Monitoring Optional

Material Compatibility


Abrasion resistance
Abrasion Resistant Perforations
Cleanability
Sanitary Mirror-Smooth Finish Pan Interior
Continuous Weld Pan Housing
Corrosive resistance (e.g. acids)
High Pressure – Low Volume Systems
Density/particle size
0.8 g/cc bulk density

Product type Characteristics


Coating type
Film,Sugar,Solvent


ISO Certification
ISO 9001

Physical Characteristics


Pan Diameter
1,219 mm (48") to 1,676 mm (66")
Batch Range Size
9 kg to 1,440 kg
Volume Min/Max
11 L to 1,800 L
Spray Guns
4 to 12
Pan Housing
Continuous Weld,No Seals
Exhaust Plenum
Streamlined for Easy Lifting and Cleaning
Removable Components
Removable Precision Mixing Baffle,Removable Anti-Slide Baffles
Coating Pan Interior Finish
Sanitary Mirror-Smooth
Material Compatibility
Abrasion Resistant Perforations
Footprint
0

Custom Options


Control Panel
Color Touch Screen Control System
Operation Modes
Automatic (Recipe-Driven) and Manual Modes
Automation System
Optional COMPUTM Automated Control System
Spray Bar
Easily Removable for Calibration
Spray Gun
AT-PRO™ Anti-Bearding Spray Gun
Containment
Smart-Safe™ Containment Optional
PAT Monitoring
Inline PAT Monitoring Optional
Process Design
Batch Ranges
Coatings
Film,Sugar and Solvent Coating Available
EcoClean™ Technology
Optional
Exhaust Plenum
Streamline for Easy Lifting and Cleaning
Recipe Handling
21 CFR Part 11 Data and Recipe Handling System
