Supercritical fluid chromatography system for preparative separations

For complex substance formulations requiring rapid, precise compound isolation, this system streamlines purification, ensuring optimal purity levels essential for high-quality end products.

Purifies and Isolates Compounds Using Chromatography

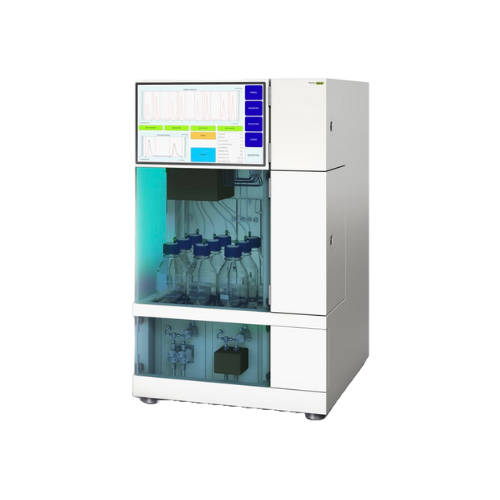

The Sepiatec SFC Systems by BUCHI are fully automated supercritical fluid chromatography solutions designed for efficient compound purification and isolation in pharmaceutical, chemical, and nutraceutical industries. These systems operate on a compact, benchtop design, offering high flexibility in separations, supported by UV, ELSD, and optional mass spectrometry detection. Ideal for applications from drug development to cosmetic formulation, Sepiatec SFC handles a range of solid and liquid products, including active pharmaceutical ingredients and essential oils. Its PLC-controlled interface facilitates easy integration and automation within production lines, while modular design ensures quick maintenance and part replacement. With options for both small and large-scale purification, the systems’ energy-efficient pumps minimize solvent usage, while compliance with industry standards ensures reliability in various operational environments.

Benefits

  • Enhances purification efficiency, allowing for high-quality compound isolation with minimal solvent use.
  • Optimizes laboratory space with compact design suitable for benchtop or fume hood installation.
  • Reduces operating costs and downtime through quick and easy maintenance with modular components.
  • Increases safety and ease of operation with intuitive touchscreen controls and automated processes.
  • Supports a wide range of compound purifications, making it versatile for various industrial applications.

General


Applications
Drugs,Fine chemicals,Specialty chemicals,Fragrances,Nutraceuticals,Cosmetics,Apis,Natural products
End products
Amino acids,Serums,Pharmaceutical tablets,Flavored oils,Aromatic compounds,Fragrance formulations,Organic acids,Vitamin supplements,Skin creams,Cosmetic colorants,Active pharmaceutical ingredients (apis) for medications,Herbal extracts,Specialty dyes,Perfume ingredients,Essential oils
Steps before
Purification,Synthesis,Extraction,Fermentation,Grinding
Steps after
Fraction Collection,Detection,Packing,Screening,Storage
Input ingredients
drugs,natural products,fine chemicals,specialty chemicals,cosmetics,fragrances,organic synthesis extracts
Output ingredients
isolated compounds,purified APIs,purified natural components,purified dietary supplements
Market info
Buchi is renowned for its expertise in laboratory and industrial solutions, particularly in producing high-quality equipment for chemical analysis and lab processes, known for precision and reliability in the pharmaceutical, chemical, and food industries.

Technical Specifications


System Design
Compact and fully automated
Detection
UV,ELSD,and MS (optional)
Pump
Prep SFC mode
Max operating pressure
400 Bar
Total flow rate at 40% modifier
50 ml/min,250 ml/min,660 ml/min
Column dimensions
4-16 mm ID,15-30 mm ID,30-50 mm ID,max 800 mm lengths
DAD wavelengths range
190-720 nm
Injection mode
Multiple and stacked
Sample capacity
mg to gram range
Column storage
Up to 10 columns
Fraction collection
Unpressurized state
CO2recycling
Optional

Operating Characteristics


Ease of use
Intuitive touchscreen interface
Automation level
Fully automated with dedicated software
Space efficiency
Compact,bench-top or fume hood installation
Sample injection method
Multiple and stacked injections
Fraction collection
Unpressurized state
Data entry method
15.6" touchscreen
Detection options
UV,ELSD,MS (optional)
Column handling
Up to 10 columns in oven
Injection mode
Stack mode with isocratic gradient
Instrument setup
Simple setup with exhaust system connection
Flexibility
Handles various sample sizes and conditions
Pump mode
Prep SFC mode
Serviceability
Modular,service-friendly design
Software capabilities
Parameter changes during run

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
Yes
Control panel type
15.6‘‘ touchscreen
Discharge method
Unpressurized state fraction collection
Space saving design
Minimal lab space required

Custom Options


Control panel type
15.6" touchscreen
