Storage tank integrity testing

Prevent costly contamination and streamline your operations with advanced tank integrity testing, detecting cracks in minutes without disrupting production. Ideal for ensuring product safety and quality in liquid processing applications.

Detects and Prevents Tank Contamination

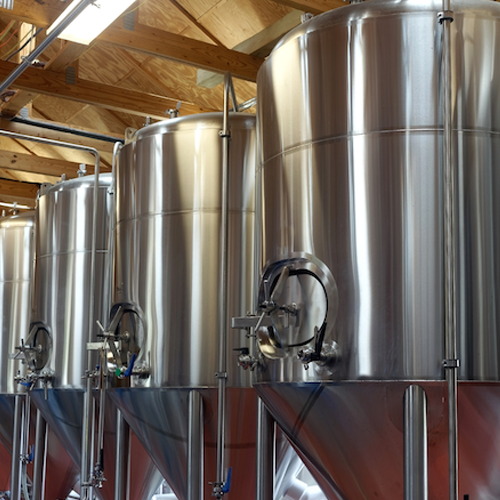

The TankTest+ from Unison Process Solutions is an automatic testing system designed for jacketed tanks in food, beverage, dairy, and chemical industries. Its innovative design allows for continuous integrity checks of tanks, identifying minute cracks within 1-3 minutes to prevent contamination. Utilizing sensors and automated valves, the system conducts daily tests of jacket-to-tank and jacket-to-atmosphere settings without the need for decommissioning. This integration reduces downtime and enhances production safety. Suitable for products like milk, yogurt, cheese, chocolate, and more, TankTest+ increases operational efficiency and supports industry compliance by employing non-destructive testing methods. The system’s integration with SCADA and automation systems allows seamless monitoring, while eliminating confined space entry risks during operations. The TankTest+ offers quick installation and extensive engineering support, ensuring optimal performance and protecting product integrity across various industrial applications.

Benefits

  • Prevents product loss with early detection of tank cracks.
  • Minimizes downtime by enabling daily tests with no decommissioning.
  • Ensures compliance with industry standards through non-destructive testing.
  • Integrates seamlessly with existing automation systems for real-time monitoring.
  • Enhances safety by eliminating the need for confined space entry.

General


Applications
Cheese vats,Milk,Chemical industries,Food and beverage,Spray dryers,Chocolate,Beer,Dairy,Pharmaceuticals
End products
Chocolate syrup,Pharmaceutical liquids,Pharmaceuticals powders,Lager,Spray dried milk powder,Cheese curds,Cheese,Chocolate bars,Chemical solutions,Yogurt,Whipping cream,Non-alcoholic beverages,Ale
Steps before
Storage,Filling,Heating,Cooling
Steps after
Contamination Inspection,Product Quality Assurance,Leak Detection,Crack Detection
Input ingredients
liquids,gases,finished milk,storage vessel contents
Output ingredients
tested liquids,tested gases,quality-assured milk,safe storage
Market info
Unison Process Solutions is known for designing and manufacturing custom-engineered process equipment for the dairy, beverage, and food industries, emphasizing innovation, quality, and tailored solutions to meet specific customer needs efficiently.

Technical Specifications


Tank Testing Method
Non-Destructive Testing (NDT)
Automation
Automatic testing with TankTest+
Testing Frequency
Daily / As required
Testing Duration
1-3 minutes
Detection Sensitivity
Detects cracks as small as 100 microns
Integration Compatibility
SCADA / Email / Text Notifications
Testing Parameters
Internal and External Check
Pressure Generation
Water jacket pressure control

Operating Characteristics


Automation level
Automatic / Manual
Testing frequency
Daily / As needed
Pressure control
Automatic
Downtime requirement
Minimal
Contamination protection
Immediate detection
Integration capability
SCADA / Email / SMS
Non-destructive testing
Yes
Sensitivity
1-3 minutes detection time
Safety compliance
No confined space entry required

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Heat Sensitivity
High / Low

Physical Characteristics


Tank shape
Varied shapes (e.g.,cylindrical)
Tank size
Depends on application
Jacket type
Jacketed tanks
Material type
Stainless steel
Installation type
In-place,no decommissioning needed
Sensors
Internal and external crack detection
Control system
Automated with integration capabilities
Footprint
Compact for integration
Weight
Dependent on tank size and material
Color
Standard metallic

Custom Options


Testing Frequency
Daily/On-demand
