Sterilizing and drying tunnel for pharmaceutical vials

Ensure precise sterilization and depyrogenation of pharmaceutical vials with a high-speed, continuous tunnel that integrates seamlessly into your production line, enhancing safety and efficiency for injectable and lyophilized products.

Sterilizes and Dries Pharmaceutical Vials

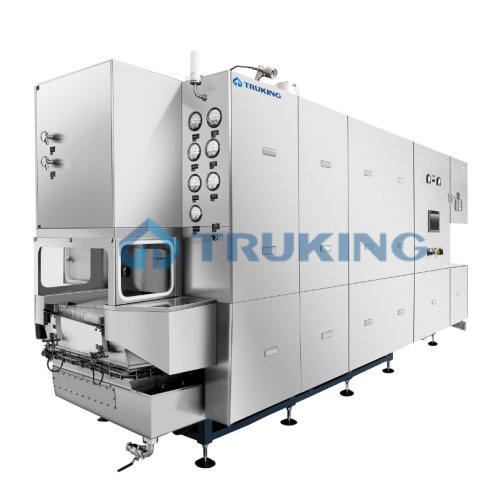

The Sterilizing and Drying Tunnel from TRUKING Technology offers a critical solution for pharmaceutical and biopharmaceutical manufacturers seeking reliable sterilization and drying of vials. This equipment leverages the laminar flow principle and high-speed hot air sterilization to ensure complete aseptic conditions, essential for injectable liquids and lyophilized products. With a high capacity for continuous industrial-scale operations, it employs multi-channel PID control for temperature uniformity, reducing risks of bottle damage. Its negative pressure technologies prevent contamination, while the automatic wind pressure balance system improves process efficiency. Integration into existing lines is seamless, supported by synchronized conveyor systems. Engineered to comply with GMP standards, it features easy-to-maintain chain conveyor mesh belts and is customizable for specific production needs.

Benefits

  • Ensures aseptic conditions, reducing contamination risks and meeting strict pharmaceutical standards.
  • Enhances production efficiency with continuous, automated operation.
  • Minimizes temperature-related damage with consistent heat distribution and multi-channel PID control.
  • Prevents cross-contamination through advanced negative pressure and diversion technologies.
  • Integrates seamlessly into existing lines, improving overall workflow and reducing setup times.

General


Applications
Oral liquid preparations,Lyophilized products,Biopharmaceuticals,Injectable liquids,Pre-filled syringes,Traditional chinese medicine,Pharmaceutical vials,Bioreactors
End products
Insulin vials,Vaccines,Pain relief syringes,Lyophilized plasma,Cough syrup,Herbal extracts,Protein solutions,Antibody vials
Steps before
Washing,Preheating,Depyrogenation
Steps after
Filling,Cooling,Capping,Inspection,Packaging
Input ingredients
vials,ampoules
Output ingredients
sterilized vials,sterilized ampoules
Market info
Truking is known for manufacturing engineered-to-order pharmaceutical equipment, specializing in liquid and solid preparation systems. They have a strong reputation for innovation and quality in the pharmaceutical machinery sector.

Technical Specifications


Sterilization process
Hot air high-speed process
Temperature uniformity
High
Temperature control
Multi-channel PID control
Negative pressure sealing
Yes
Automation
Automatic wind pressure balance system
Conveyor belt speed
Synchronized with bottle washer and filling machine
Cooling system
Automatic wind pressure balance
Depyrogenation
A-grade sealed tunnel
Conveyor type
Chain conveyor mesh belt

Operating Characteristics


Automation level
PLC / SCADA
Airflow control
Laminar flow
Temperature uniformity
High
Negative pressure sealing technology
Yes
Cleaning method
Depyrogenation
Batch vs. continuous operation
Inline Continuous
Wind pressure balance system
Automatic

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Feed/Discharge method
Chain conveyor mesh belt
