Spray drying system for nutritional powders

Enhance production efficiency and product quality with a versatile spray drying system, designed for precise, customized powder formulations across a range of nutritional and dairy applications.

Produces and Dries Nutritional and Dairy Powders

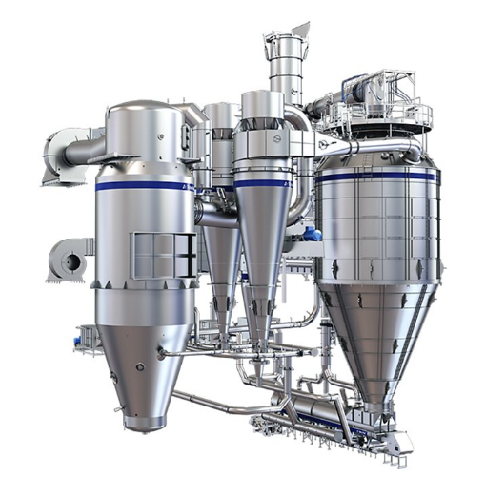

The Tetra Pak® Spray Dryer Tall Wide Body is engineered for manufacturers of nutritional products, including dairy and plant-based powders. It offers a highly flexible and customizable spray drying system, designed to handle capacities from 0.5 to 10 tonnes per hour. This system supports continuous, fully automatic operations, ensuring precise moisture control and optimal powder quality for a wide range of products such as infant formula, protein supplements, and casein powders.

The spray dryer utilizes a straight tube air distributor with integrated high-pressure nozzles for efficient atomization and a chamber roof cooling system that minimizes powder deposits, enhancing energy efficiency. The unit can be integrated with a full Tetra Pak line solution, including wet sections, evaporation, and powder handling, allowing seamless operation across production lines.

To enhance operational stability and product quality, features include customizable swivel adjustable lances and a bag filter system for effective particle separation. Options such as open pressure transport and dehumidification provide additional flexibility to suit specific processing needs. Maintenance is streamlined with CIP-compatible design and multiple feed systems, facilitating round-the-clock production and minimizing downtime.

Benefits

  • Enhances production flexibility with customizable design to match diverse product recipes and properties.
  • Increases operational efficiency by supporting continuous, fully automatic processes.
  • Minimizes energy consumption with optimized spray drying and air distribution systems.
  • Ensures high-quality powder output with precise moisture control and reduced powder deposits.
  • Streamlines maintenance and cleaning with integrated CIP-compatible design and multiple feed systems.

General


Applications
Infant formulations,Dairy powders,Whey powders,Nutritional powders,Plant-based powders,Thermoplastic behaving products
End products
Non-dairy creamer,Infant formula,Plant-based meal replacement powder,Protein supplements,Whey protein isolate,Fortified nutritional beverages,Casein powders,Soy protein powder
Steps before
Concentration,Evaporation,Pre-mixing
Steps after
Agglomeration,Cooling,Powder Handling,Packing
Input ingredients
nutritional formulations,concentrate,thermoplastic behaving products
Output ingredients
nutritional powders,infant formulations,thermoplastic powder products
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
0.5 to 10 tonnes/h
Automation
Fully automatic
Airflow control
Low pressure drop
Spray Pattern Monitoring
Camera system
Drying Stages
Single- and multi-stage
Max Air Inlet Temperature
280˚C

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Energy efficiency
0.5–2 kWh/kg moisture
Cleaning method
CIP

Product type Characteristics


Thermoplastic behavior
Yes
Particle size distribution
Customizable

Physical Characteristics


Machine footprint
Variable
Chamber Shape
Tall Wide Cylinder
Feed/Discharge Method
High-Pressure Nozzle Assembly
Cooling System
Chamber Roof Cooling
Swivel Adjustable Lances
Side-mounted for Safety
Air Distribution
Single or Multi Venturi
Module Design
Modular

Custom Options


Modular Design
Yes
Customization of Dryer Capacity
Multiple venturi deployments
Swivel Adjustable Lances
Yes
Optional Fines Return Capability
Yes
Integration in Full Line Solution
Wet section,evaporation,and powder handling
Multiple Feed Systems
Yes,24/7 production
Spray Monitoring System
Camera system with PC monitor
Temperature Range
Supports maximum air inlet temperature of 280˚C
Open Pressure Transport System
For fines separation
Dehumidifier Option
Yes,for stabilizing product quality
