Slide gate valve

In the powder and bulk handling industries, in-line shut off valves are required to provide uninterrupted smooth bore flow when fully open and seal dust tight when closed.

Remotely shut off full bore material flow completely

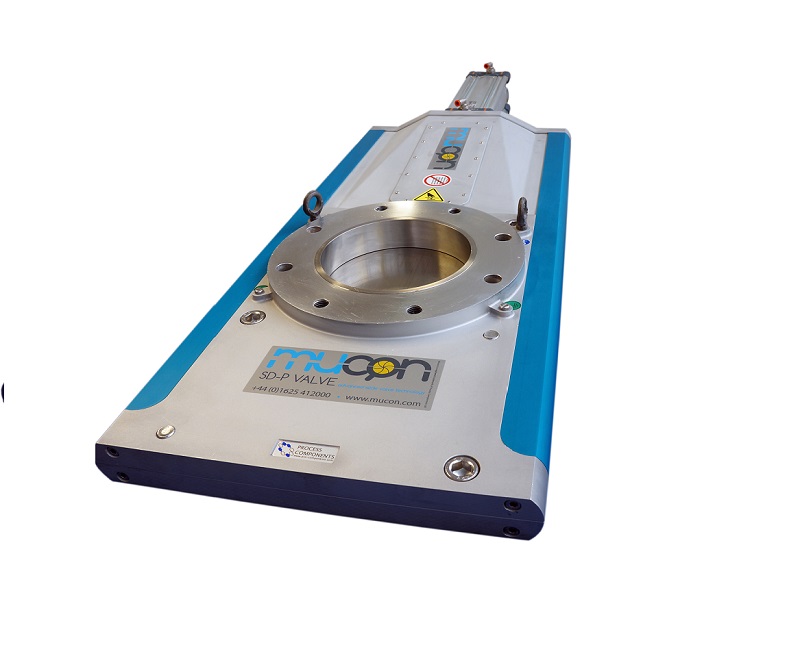

With a patent application that boasts more than 53 innovative claims, the robust but simple Mucon SD-P slide gate valve is one of the most advanced valves of its type on the market today.

For use on low pressure conveying lines, in plastic pellet loading systems or with mixer fill/discharge chutes, the valve is available to discharge smooth flow in bore sizes of 100mm, 150mm, 200mm, 250mm or 300mm.

Powered by a low friction, high efficiency pneumatic cylinder, the slim valve can be remotely operated to achieve effective, fully sealed closure when required.

Benefits

  • Self cleaning slide gate blade
  • Smooth, efficient operation
  • Rated for up to +1 barg conveying pressures
  • Extremely low maintenance
  • ATEX certified to 1D/2D categories
