Sieving system for chocolate processing

Ensure product purity and consistency by seamlessly removing unwanted particles from chocolate and confectionery mixtures, enhancing the quality of your final product with advanced sieving technologies.

Filters and Sieves Chocolate for Purity

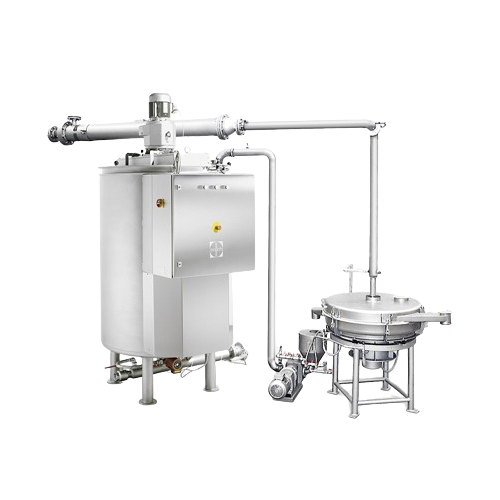

The Sector vibrating sieve type SES, Tumble vibrating sieve type VTS, and Inline filter from SOLLICH are engineered specifically for chocolate and confectionery processing. These sieving systems efficiently filter unwanted particles like nuts and cereals, maintaining product purity and quality. By integrating seamlessly into your production line, these systems support high-speed operations common in chocolate manufacturing. With a throughput capacity of up to 3,000 kg, they ensure consistent output without sacrificing product quality. Available with easily replaceable mesh inserts and various mesh sizes, these sieves offer flexibility and ease of maintenance. Constructed from durable materials suitable for food processing, they provide long-term reliability. Customization and engineering support is available, ensuring the equipment meets your specific production needs.

Benefits

  • Enhances product purity by efficiently removing contaminants from chocolate.
  • Supports high-volume production with up to 3,000 kg throughput capacity.
  • Reduces maintenance time with easily replaceable sieve inserts.
  • Integrates seamlessly with existing processing lines for improved operation flow.
  • Offers flexibility for different applications with multiple mesh size options.

General


Applications
Biscuits,Decorative chocolate articles,Dragees,Pralines,Confectionery,Brittles,Fruit bars,Cereals,Nuts,Candy bars,Cereal bars,Ice cream,Sweets,Chocolate,Protein bars
End products
Chocolate truffles,Muesli bars,Hazelnut brittle,Artisan chocolates,Granola bars,Nougat candy bars,Protein chocolate bars,Decorative chocolate shapes,Jelly candies,Chocolate pralines,Dark chocolate pralines,Dried fruit bars,Chocolate-coated dragees,Milk chocolate bars,Vanilla ice cream bars,Almond-coated chocolates
Steps before
Melting,Mixing,Conching
Steps after
Enrobing,Cooling,Packing
Input ingredients
chocolate mass,foreign particles,nuts,cereals
Output ingredients
sieved chocolate mass
Market info
Sollich is known for manufacturing engineered-to-order equipment for the confectionery industry, particularly chocolate processing and enrobing machines. They have a strong reputation for innovation, quality, and tailored solutions to meet specific customer requirements.

Technical Specifications


Capacity
up to 3,000 kg mass throughput
Mesh Size
Different mesh sizes available
Sieve Type
Sector vibrating sieve,Tumble vibrating sieve
Installation
Installed on top of tank,Inline installation
Sieve Insert
Easily replaceable

Operating Characteristics


Working mechanism
Vibrating sieve
Integrated steps
Inline filtration
Batch vs. continuous operation
Inline Continuous
Cleaning method
Easily replaceable sieve insert
Mesh size flexibility
Different mesh sizes available
Mass throughput capacity
Up to 3,000 kg

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Foreign particle filtration
Effective in removing nuts,cereals
Suitable for
Chocolate mass

Physical Characteristics


Feed Method
Inline Filter,Top Feed

Custom Options


Control panel type
Touchscreen / HMI
Mesh size option
Customizable
Installation type
Top of tank / Inline
Sieve insert replacement
Easily replaceable
Integration possibilities
Pipeline installation
