Side entry mixer for industrial fluid mixing
Optimize your fluid mixing processes with high-speed side entry mixers, designed to enhance homogenization and dispersion in continuous operations, ensuring precise control and reduced processing times for demanding industrial applications.
Mixes and Homogenizes Large Fluid Volumes

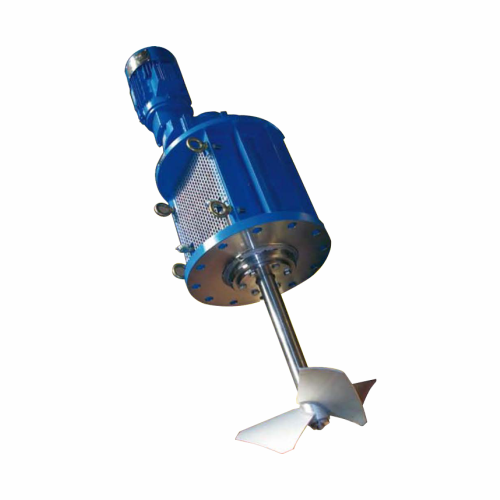

The LUMPP Side-Entry Horizontal Industrial Mixer from HASLER Group is engineered for efficient continuous mixing and agitation of large fluid volumes. Its high-speed rotor generates turbulence, ensuring effective homogenization and limiting dead zones. Designed for a diverse range of industries including chemicals and pharmaceuticals, it supports applications like mixing polymers, resins, and adhesives, as well as wastewater treatment and pH adjustments.
Equipped with a horizontal shaft and customizable propeller configurations, it adapts to varying fluid viscosities and densities, offering precise control over mixing intensity. The system operates with motor power ranging from 0.55 to 55 kW and speeds between 1.5 to 350 rpm, supporting shaft lengths up to 1,500 mm and impeller diameters up to 800 mm.
This mixer’s versatile design includes options for carbon steel, stainless steel, and nickel-based alloys to ensure chemical compatibility. It features an innovative maintenance system that allows seal removal without emptying the tank, reducing downtime. ATEX certification further ensures safe operation in explosive environments, making it an invaluable asset for continuous industrial processes.
Benefits
- Cuts maintenance time with an innovative seal system that keeps tanks full during servicing.
- Ensures consistent product quality by minimizing processing times and eliminating dead zones.
- Saves space and material costs with compact side-entry installation.
- Operates efficiently in a variety of viscosities and densities, reducing energy consumption.
- Certified for ATEX environments, ensuring safety in explosive atmospheres.
- Applications
- Polymers,Chemicals,Pharmaceutical tablets,Granules,Suspensions,Solvents,Adhesives,Resins,Pastes,Wastewater treatment,Syrups,Ph adjustment,Capsules,Powders
- End products
- Polyethylene,Suspension of titanium dioxide,Ibuprofen tablets,Epoxy resins,Polypropylene,Pvac (polyvinyl acetate) adhesive,Ph-balanced disinfectant solutions,Gel capsules,Cough syrups,Acetic acid,Sewage sludge,Sodium hydroxide solution,Wall paste,Acetone,Talcum powder,Vitamin granules
- Steps before
- Purification,Pre-mixing,Grinding,Powder Production,Heating
- Steps after
- Filtration,Centrifugation,Sterilization,Settling,De-aeration
- Input ingredients
- Polymers,Resins,Adhesives,Solvents,Suspensions,Pastes,Wastewater,pH adjustment materials,Powders,Granules,Liquids,Pharmaceutical ingredients
- Output ingredients
- Homogenized fluids,Mixed chemicals,Processed wastewater,Blended pharmaceuticals
- Market info
- HASLER Group is known for manufacturing and supplying industrial engineered-to-order (ETO) equipment, specializing in mixing, filtration, and sealing solutions for various industries, with a reputation for quality and innovation in handling challenging process applications.
- Motor power
- 0.55 to 55 kW
- Speed
- 1.5 to 350 revolutions per minute (rpm)
- Shaft length
- up to 1,500 mm
- Impeller diameter
- up to 800 mm
- Wet parts material
- Carbon steel,stainless steel,duplex steel,nickel-based alloys
- Installation flange types
- DIN or ASME
- Adjustment angle
- Vertical or inclined by 7 to 10°
- Mixing process
- Continuous
- ATEX Certification
- Available
- Operation mode
- Horizontal shaft
- Mixing mechanism
- High-speed rotor with horizontal shaft
- Installation type
- Side-entry
- Flow type
- Continuous mixing
- Energy efficiency
- Energy-saving motor
- Temperature functionality
- High-temperature compatibility
- Maintenance ease
- Simplified servicing with external motor and speed reducer
- Seal removal capability
- Mechanical seal removal without emptying the tank
- Adaptability
- Customizable with different propellers (axial/radial flow)
- ATEX compliance
- For explosive areas
- Space saving
- Compact design for small tanks
- Batch vs. continuous operation
- Continuous
- Installation angle
- Vertical or inclined by 7 to 10°
- Abrasion resistance
- Yes
- Biological compatibility
- No
- Cleanability
- High
- Corrosive resistance (e.g. acids)
- Yes
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Container Orientation
- Side entry on vertical/inclined tanks
- Machine footprint
- Compact
- Tank shape
- Horizontal
- Tank size
- Varies based on application
- Shaft length
- Up to 1,500mm
- Impeller diameter
- Up to 800mm
- Installation flange type
- DIN or ASME
- Installation angle
- Vertical or inclined by 7 to 10°
- Discharge method
- Side-entry
- Optional accessories
- Baffles,flow control devices
- Propeller customisation
- Axial or radial flow
- Installation configuration
- Vertical or inclined (7-10°)
- Sealing system
- Single or double mechanical seal
- Flange options
- DIN or ASME flanges
