Sequentially automated case packer for small products

Efficiently pack diverse small products into large cases with precision and speed, optimizing your production flow and reducing manual labor while seamlessly integrating into existing processes.

Automates and Optimizes Case Packing Process

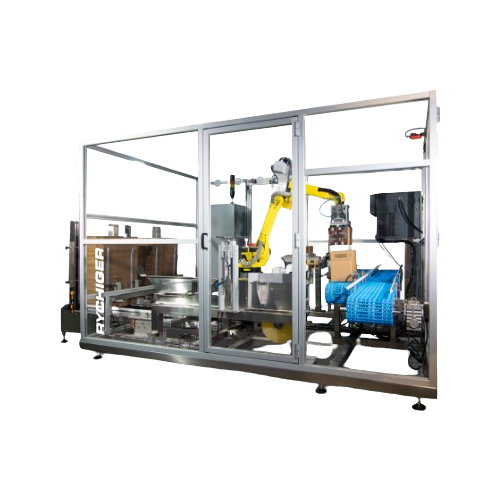

The NRCP-5 from Rychiger is a sophisticated robot-assisted case packer that enhances efficiency in secondary packaging operations across various industries. Designed for food, beverage, and life science sectors, this machine stands out by automating the tedious task of packing numerous small solid products into larger cases, thereby addressing typical production bottlenecks. Equipped with a Fanuc robot, the NRCP-5 ensures continuous operation with minimal manual intervention, featuring programmable case and product sizes for quick changeovers. Ideal for pharmaceuticals, cosmetics, and industrial goods, it processes up to 300 cases per hour with precise sealing and loading capabilities. This case packer integrates seamlessly into existing production lines via its compact design and allows for dual magazine use, facilitating either higher capacity or flexible case size adjustments. The NRCP-5 is engineered to support high-speed automation while reducing operational strain on personnel, delivering a reliable and adaptable packaging solution.

Benefits

  • Increases operational efficiency by automating labor-intensive case packing tasks.
  • Enhances flexibility with programmable case and product sizes for swift changeovers.
  • Streamlines production with dual magazine capability, doubling capacity or accommodating various case sizes.
  • Minimizes worker fatigue by handling heavy payloads with robot-assisted precision.
  • Provides a cost-effective entry into automation, reducing long-term operational costs.

General


Applications
Supplements,Medical devices,Snacks,Pet food,Multi beverage,Coffee,Confectionary,Cosmetics,Industrial goods,Baby food,Tea,Dairy products,Pharmaceuticals
End products
Foil-sealed coffee pods,Chocolate boxes,Tea bags,Sterile syringe kits,Lip balm tubes,Vitamin bottle packs,Jars of baby puree,Blister packs of tablets,Assorted beverage sachets,Packaging for cleaning solutions,Protein bars,Cheese packets,Canned dog food
Steps before
Product Collation,Folding of Cases
Steps after
Conveyor Transport,Case Sealing,Top Flap Folding,Tape or Adhesive Sealing
Input ingredients
folded cases,sealed cartons,small containers,various product types
Output ingredients
packed large cases,sealed cases
Market info
Rychiger is known for engineering high-precision filling and sealing machines for the food and medical industries, offering customized, innovative automation solutions, with a strong reputation for reliability and exceptional engineering expertise in the packaging sector.

Technical Specifications


Output/min
Up to 5
Output/h
Up to 300
Package Length Range
152 - 610 mm
Package Width Range
127 - 406 mm
Package Height Range
100 - 406 mm
Magazine Capacity
150 cases
Size (LxWxH)
2.29 x 3.93 x 2.13 m
Weight
900 kg
Power Requirements
230 V/20A 60 Hz
Air Requirements
90 PSI @ 10CFM
Automation
Robot-assisted

Operating Characteristics


Working mechanism
Sequentially automated
Integrated steps
Case erection,loading,sealing
Automation level
Robot-assisted,PLC-controlled
Changeover time
Programmable for swift switching
Batch vs. continuous operation
Batch operation
Cleaning method
Not specified
Energy efficiency
Not specified

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
2.29 x 3.93 x 2.13 m
Weight
900 kg
Discharge method
Conveyor system
Compact footprint
Yes
Control panel type
Programmable

Custom Options


Programmable case sizes
Yes
Integration possibilities
Easy to integrate into production environments
Magazine capacity customization
Up to 300 cases
Multi-case size capability
Two magazines for different case sizes
Robotic arm customization
Fanuc robot integration
