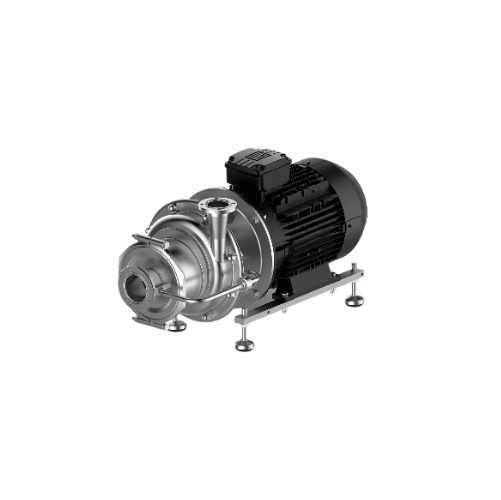

Self-priming centrifugal pump for Cip solutions

Optimize fluid handling and cleaning processes with versatile, self-priming centrifugal technology, perfect for integrating continuous, high-speed operations in food and beverage facilities to streamline product transfer and effective CIP solutions.

Pumps, Mixes, and Conveys Liquid and Gas Media

The GEA Hilge TPS 3050 Series from GEA is a range of hygienic self-priming centrifugal pumps renowned for gentle and efficient handling of liquid and gas media across food, beverage, dairy, and pharmaceutical sectors. This series combines single-stage centrifugal pumping technology with an optimized open impeller design, supporting operation pressures up to 16 bar. Its versatility includes applications in beer, dairy products, and CIP solutions, effectively managing viscosities up to 500 mPas. The pumps integrate seamlessly into production lines with a DIN 11853-2 hygienic connection, minimizing cavitation with low NPSH values and optimizing energy use via speed control or impeller trimming. Constructed with 1.4404 or 1.4409 stainless steel, the series ensures corrosion resistance and high-efficiency operation. The modular design reduces wear part stock requirements, while optional 3.1 certification and EHEDG compliance ensure reliability and safety. The GEA Hilge TPS is equipped with a removable mechanical seal for easy maintenance and supports automation with PLC control ready for integration.

Benefits

  • Ensures seamless CIP process integration, reducing the need for additional equipment.
  • Lowers operational costs with energy-efficient speed control and impeller trimming.
  • Mitigates cavitation risks with a low NPSH value, enhancing pump longevity.
  • Simplifies maintenance with a front-removable mechanical seal, minimizing downtime.
  • Complies with EHEDG standards, ensuring hygienic operation for food and pharmaceutical applications.

General


Applications
Sauces,Liquid formulations,Cip solutions,Oils,Beer,Flavors,Ice-cream mix,Dairy products
End products
Steps before
Mixing,Heating,Blending,Pre-processing
Steps after
Packaging,Filling,Bottling,Cooling
Input ingredients
beer,wort,yeast,water,milk,cream,yoghurt,whey,brine,oils,sauces,stock,flavors,ice-cream mix,CIP solutions
Output ingredients
same as input list.
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Flow
100 m³/h - 120 m³/h
Head
90 m - 100 m
Media temperature
140 °C
Operating pressure
16 bar
NPSH value
Low
Viscosity handling
Up to 500 mPas
Material
1.4404 or 1.4409 (AISI 316L)
Surface roughness
Ra= 0.8 µm
Seal face material
Carbon/Silicon carbide,Silicon carbide/Silicon carbide

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Energy efficiency
0.5–2 kWh/kg moisture
Cleaning method
CIP / Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Surface roughness
Ra = 0.8 µm
Open impeller design
Optimized for gentle product handling
Wetted components material
1.4404 or 1.4409 (AISI 316L)

Custom Options


Impeller trimming
Optimized for speed control
Seal face material options
Carbon/silicon carbide,silicon carbide/silicon carbide
Surface roughness
Ra= 0.8 µm,higher qualities on request
Mechanical seal unit
Removable from the front
Flushing unit retrofit
Easy to retrofit
Metallic stop for seal
Allows defined compression
Sealings compliance
FDA and USP Class IV
Seal sizes
Two sizes for entire pump series
Modular concept
Low wear part stock requirement
