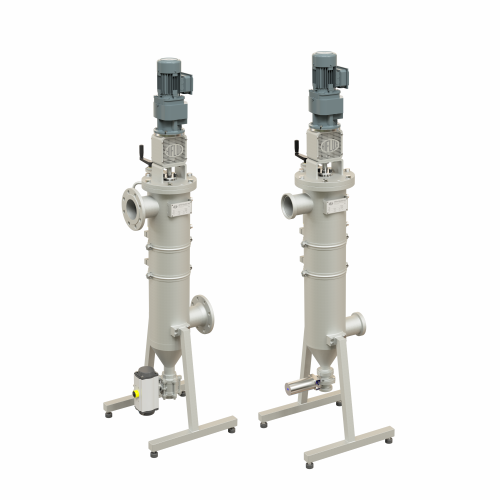

Self-cleaning filter for industrial and hygienic applications
Ensure continuous operation and minimal waste in your liquid processing with a robust, self-cleaning filtration system designed to handle high contamination loads efficiently.

Handles Continuous Filtration and Self-cleaning of Liquids
The Auto-line® XLR Self-cleaning Filtration System from HiFlux Filtration A/S is engineered to offer robust continuous filtration for a diverse array of liquids across industries such as beverage, chemicals, and pharmaceuticals. Featuring a streamlined design, this system uses an automatic self-cleaning mechanism which efficiently manages high contamination loads while minimizing waste. It is suitable for applications like chocolate bars, synthetic resins, and treated wastewater processing. With a capacity ranging from 27 to 110 m³/h and a filtration threshold from 30 to 2000 microns, it supports uninterrupted operations without liquid loss. The system integrates seamlessly into existing production lines, utilizing stainless acid-resistant steel for durability and compliance with rigorous standards such as the Machinery directive and pressure equipment directive. Options for electric or pneumatic actuation ensure flexible integration, while the compact design reduces space requirements and maintenance needs. Configurable and engineered to meet specific customer requirements, it stands as a versatile solution for maintaining efficiency and reliability in demanding production environments.
Benefits
- Ensures continuous production with minimal downtime through self-cleaning operation.
- Minimizes waste and product loss, increasing overall profitability.
- Reduces maintenance costs with a robust design and few moving parts.
- Enhances operational safety and compliance with industry standards.
- Adapts to various industry needs with customizable configurations.
- Applications
- Chemicals,Fat and oil,Polymers,Food,Recycling,Beverage,Paint and coatings,Water processing,Dairy,Pharmaceuticals
- End products
- Cooking oils,Mozzarella cheese,Soft drinks,Beer,Emulsion paints,Ice cream,Pet plastics,Varnishes,Margarine,Yogurt,Polyurethane,Fruit juices,Synthetic resins,Liquid medicine,Polyethylene,Tablet coatings,Treated wastewater,Chocolate bars,Deionized water
- Steps before
- Grinding,Mixing,Pump transportation,Heating
- Steps after
- Sterilization,Cooling,Storage,Packaging
- Input ingredients
- paint,cooling water,waste water,technical water,heat exchanger,chemicals,resins,energy sector liquids,cheese products,chocolate,coffee,honey,egg,beverage,oil and fats,sugar,CIP liquids
- Output ingredients
- filtered paint,filtered cooling water,filtered waste water,filtered technical water,filtered heat exchanger fluid,filtered chemicals,filtered resins,filtered liquids from energy sector,filtered cheese products,filtered chocolate,filtered coffee,filtered honey,filtered egg products,filtered beverage,filtered oil and fats,filtered sugar solutions,filtered CIP liquids
- Market info
- HiFlux Filtration is known for designing and manufacturing high-quality, custom-engineered filtration solutions for industrial applications, renowned for their innovative technology, reliability, and expertise in handling challenging filtration tasks across various industries.
- Filtration Capacity
- 27 - 110 m³/h
- Filtration Range
- 30 - 2000 µm
- Pressure
- 10 bar (16 bar)
- Design Pressure
- 10 bar (16 bar)
- Max Working Temperature
- 150°C
- Volume
- 35.0 liters
- Weight
- 120 kg
- Power Supply (R-E Version)
- 3 x 230/400V,50 Hz
- Air Supply (R-P Version)
- 6 bar,filtered
- Flange Connection
- DN100 EN1092-1/11
- Drain
- Nipple RP2 or DN50 PN16 EN1092-1/11
- Sludge Chamber Volume
- 2.1 liters
- Filtration Elements Micron Ratings
- 30-50-100-150-200-300-500-1000 µm
- Material
- EN 1.4404 Steel
- Differential Pressure
- 3-7 bar
- Working Mechanism
- Self-cleaning automatic filter
- Flow Type
- Continuous operation
- Automation Level
- PLC-controlled
- Batch vs. Continuous Operation
- Continuous
- Cleaning Method
- Automatic without liquid loss
- Energy Efficiency
- Low energy usage due to efficient design
- Contamination Control
- Cross contamination prevention in E version
- Adaptability
- Customizable to specific client needs
- Capacity Range
- 27-110 m³/h
- Pressure Handling
- 10 bar (16 bar)
- Maintenance Ease
- Minimal due to fewer moving parts
- Compact Design
- Suited for height-restricted locations
- Abrasion resistance
- Stainless steel
- Corrosive resistance (e.g. acids)
- Acid-resistant steel EN 1.4404
- Biological compatibility
- Suitable for food contact materials EC1935/2004
- Cleanability
- Complies with hygienic design guidelines from EHEDG
- Density/particle size
- 30–2000 µm
- Hygienic application suitability
- Yes
- Pressure Equipment Directive 2014/68/EU
- Article 4,Section 3
- Filter connections
- Different types
- Add-ons
- Lifting device,sluice system,flush valves,etc.
