Scraped surface sterilizers for food industry products

Optimize your food processing line with high-efficiency sterilization perfect for handling thick and pulpy products, ensuring product safety and preservation in high-speed operations.

Sterilizes and Homogenizes Heat-Sensitive Food Products

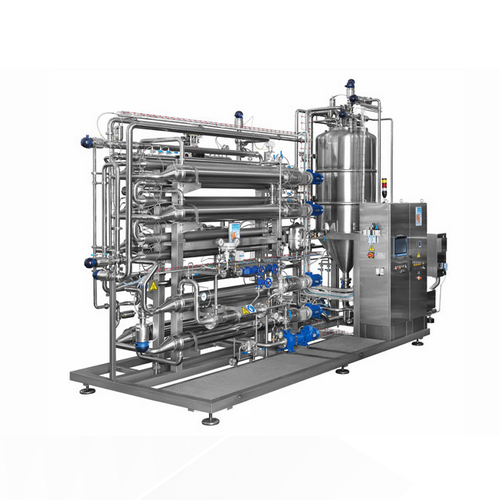

FBR ELPO’s Scraped Surface Sterilizers are engineered to address the challenges of processing heat-sensitive and viscous food products. The equipment utilizes a rotating internal shaft with movable scrapers, ensuring consistent sterilization and homogenization across dense and semi-dense applications like sauces, dairy, and confectionery. Designed for continuous, high-speed operations, these sterilizers efficiently handle liquids and slurries, seamlessly integrating into your existing production line for aseptic filling. Fabricated from AISI 316 stainless steel, the sterilizers offer durability and corrosion resistance, suitable for the food, confectionery, and dairy industries. Equipped with an electric motor and optional speed variator, they adapt to various production capacities and operational conditions. The system supports downstream applications with FBR ELPO’s aseptic fillers, providing comprehensive processing solutions. Optional deaerating and homogenizing modules are available to enhance the operational versatility and product quality.

Benefits

  • Ensures consistent product quality by uniformly sterilizing heat-sensitive and viscous foods.
  • Seamlessly integrates into existing production lines for efficient aseptic filling processes.
  • Minimizes maintenance with corrosion-resistant AISI 316 stainless steel construction.
  • Enhances operational versatility with customizable speed and capacity configurations.
  • Reduces energy costs with an optimized electric motor and variable speed options.

General


Applications
Cream,Ketchup,Sauces,Fruit products,Confectionery products,Tomato products,Ice cream preparations,Dairy products
End products
Caramel cream,Mixed berry sauce,Strawberry jam,Banana puree,Custard filling,Pasta sauce,Vanilla ice cream mix,Cheese sauce,Cream cheese,Marinara sauce,Tomato paste,Bbq sauce,Fruit yogurt
Steps before
Centrifugation,Concentration
Steps after
Aseptic Filling,Homogenization,Deaeration
Input ingredients
ketchup,sauces with pieces,dense products,semi-dense products,concentrated products,pulpy products,fruit centrifuges,tomato centrifuges,cream,ice cream preparations,dairy products
Output ingredients
processed ketchup,processed sauces with pieces,processed dense products,processed semi-dense products,processed concentrated products,processed pulpy products,processed fruit centrifuges,processed tomato centrifuges,processed cream,processed ice cream preparations,processed dairy products
Market info
FBR ELPO is known for its expertise in manufacturing industrial equipment, specializing in engineered-to-order solutions for food and beverage processing, particularly in thermal processing and aseptic technology, and holds a strong reputation for innovation and reliability in the market.

Technical Specifications


Material
AISI 316 Stainless Steel
Module component
Stainless steel external tube
Internal Component
Rotating shaft with movable scrapers
Mechanical seal
Special type with steam barriers
Motorization
Electric with speed variator/reducer and inverter
Application availability
Deaerator and homogenizer
Automation
Electric speed control
Compatibility
Aseptic fillers produced by FBR ELPO

Operating Characteristics


Rotating Shaft Material
AISI 316 stainless steel
Scraper Type
Movable scrapers
Speed Control
Speed variator / Speed reducer and inverter
Aseptic Compatibility
Can be coupled with aseptic fillers
Steam Barrier
Special mechanical seal with steam barriers

Material Compatibility


Abrasion resistance
Yes
Biological compatibility
Food-grade
Cleanability
CIP/SIP capable
Corrosive resistance (e.g. acids)
AISI 316 stainless steel

Physical Characteristics


Machine footprint
Variable,based on model size
Scraper material
Movable scrapers in stainless steel
Shaft material
AISI 316 stainless steel
External tube material
Stainless steel
Discharge method
Integrated with aseptic fillers
Control panel type
Electric motorization with speed variator or speed reducer and inverter
Cooling system
Steam barriers for mechanical seal

Custom Options


External Tube Material
Stainless Steel
Internal Shaft Material
AISI 316 Stainless Steel
Scraper Type
Movable Scrapers
Mechanical Seal
Special seal with steam barriers
Motorization
Electric motor with speed variator or reducer
Integration
Can be coupled with FBR ELPO aseptic fillers
Deaerator and Homogenizer
Available Applications
