Scale hopper for bulk material processing

Optimize your bulk material handling with precise control in separation, filling, and discharge processes, ensuring consistent quality and efficiency across a range of solid and powdered products.

Facilitates Precise Separation and Material Discharging

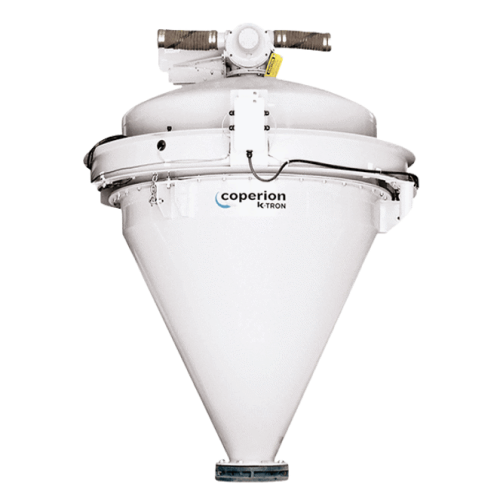

The Coperion K-Tron Scale Hopper offers an optimized solution for handling solid, powder, and granule materials in batch or continuous processing. This hopper is equipped with a tangential entry baffle and Aeropass valve, ensuring effective material-air separation and even filling. With working capacities from 200 to 2900 liters, it is ideal for applications in plastics, chemicals, food, pet food, and pharmaceutical industries, effectively processing polyethylene pellets, epoxy resin compounds, nutritional supplement powders, and more. Its steep 63°-sloped design facilitates efficient discharge of hard-to-handle materials. Constructed from carbon steel with an epoxy-coated interior, this hopper is durable and corrosion-resistant. It integrates seamlessly with existing systems, including Aeropass systems, filter receivers, cyclones, and screw feeders, ensuring flexible material delivery and reliable batch or continuous operations.

Benefits

  • Enhances material handling efficiency with effective air-material separation.
  • Reduces material handling challenges with a steep-sloped discharge design.
  • Supports diverse industrial applications, ensuring operational flexibility.
  • Minimizes contamination risk with enclosed, epoxy-coated interior.
  • Integrates seamlessly into existing systems for streamlined operations.

General


Applications
Chemicals,Food,Pet food,Vacuum or pressure materials,Plastics,Pharmaceuticals
End products
Nutritional supplement powders,Polyethylene pellets,Pharmaceutical tablets,Pvc granules,Powdered detergents,Epoxy resin compounds,Dry pet kibbles,Protein meal blends
Steps before
Material Handling,Feeding,Pneumatic Conveying,Material-Air Separation
Steps after
Discharging,Weighing,Material Transfer,Batch Processing
Input ingredients
bulk materials,powders,granules,materials for plastic applications,materials for chemical processes,food ingredients,pharmaceutical ingredients,vacuum or pressure conveyed materials
Output ingredients
dispensed materials,metered materials,processed bulk materials,discharged materials
Market info
Coperion is known for its expertise in manufacturing industrial compounding and extrusion equipment, bulk materials handling systems, and services for various industries, such as plastics, chemicals, and food processing, with a strong reputation for innovative engineering solutions and customer support.

Technical Specifications


Working Capacity
200–2900 liters (7 to 104 cu.ft.)
Material-Air Separation
Tangential entry baffle
Material Discharge
Steep,63°-sloped hopper
Discharge Flange Compatibility
Knife gate or butterfly gate
Material
Carbon steel
Coating
Epoxy-coated interior
Support Method
Three support lugs for load cells

Operating Characteristics


Material-air separation
Tangential entry baffle
Filling efficiency
Even filling via Aeropass valve
Material delivery method
Closed-loop Aeropass system
Mounting capability
Suspended from load cells
Material discharge slope
63°-sloped hopper
Ventilation method
Internally-filtered vent with check valve
Operation mode
Batch vs. Inline Continuous

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Hopper Capacity
200-2900 liters (7 to 104 cu.ft.)
Material
Carbon steel with epoxy-coated interior
Inlet Design
Tangential entry baffle
Slope
63°-sloped hopper
Support Structure
Three support lugs for load cells
Discharge Design
Matches knife gate or butterfly gate
Interior Finish
Primed
Exterior Finish
Enamel paint

Custom Options


Control panel type
Manual / PLC / SCADA
Discharge method
Knife gate / Butterfly gate
Material compatibility
Carbon Steel / Epoxy-coated
Inlet configuration
Tangential entry baffle
Mounting coupling
High/low level control
