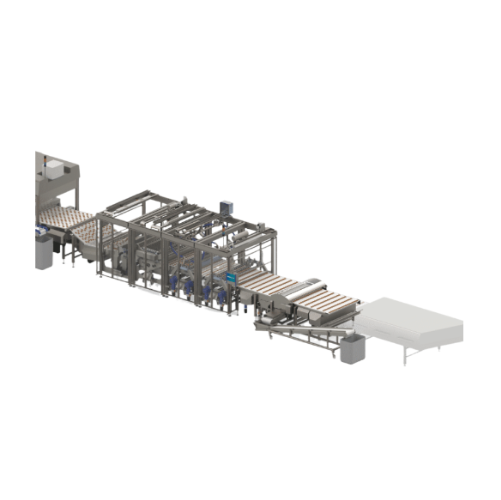

Sandwich and biscuit depositing system

Achieve high-capacity sandwich and biscuit production while maintaining precision with rapid change-overs for various product shapes and fillings, maximizing efficiency in the production line.

Caps and Deposits Fillings for Sandwich Products

The Houdijk Capper series, including the Mark II and Mark III models from Royal Houdijk, offers a powerful solution for high-speed production of filled sandwiches and biscuits, integrating capping and depositing functionalities. This equipment ensures flexibility, allowing seamless transitions between different product sizes and shapes, while accommodating a variety of fillings such as creams, jams, marshmallows, and chocolates.

The Houdijk Capper operates with a throughput of up to 6,000 sandwiches per minute, supported by an efficiency of over 99% with minimal supervision requirements. It adheres to uncompromised food safety standards, making it ideal for food, confectionery, and baking industries.

Both the Mark II and Mark III variants support continuous, high-speed operations with varying belt widths and capacities, accommodating a range of products from cream-filled sandwich cookies to jelly sandwich squares. These systems are designed for easy integration into existing production lines and offer full automation for consistent output. Maintenance is simplified through its accessible design, ensuring minimal downtime and maximum productivity in processing and final conditioning departments.

Benefits

  • Enhances production efficiency with a 99% operation rate and minimal supervision.
  • Supports diverse product formats with easy size and shape changeovers.
  • Ensures high-speed production, achieving up to 6,000 sandwiches per minute.
  • Maintains stringent food safety standards, reducing contamination risks.
  • Integrates effortlessly into existing lines, optimizing space and workflow.

General


Applications
Creamy fillings,Biscuits,Sandwiches,Jams,Marshmallow,Chocolate
End products
Jelly sandwich squares,Jam-filled biscuits,Cream-filled sandwich cookies,Cream-filled doughnuts,Chocolate sandwich biscuits,Marshmallow treats
Steps before
Mixing,Dough Preparation,Ingredient Blending
Steps after
Cooling,Packaging,Quality Inspection
Input ingredients
aerated fat creams,jams,marshmallow,chocolate
Output ingredients
sandwiches,deposited biscuits,base cakes
Market info
Houdijk is known for designing and manufacturing advanced handling and processing equipment for the biscuit and bakery industry, specializing in automated systems to improve efficiency and maintain product quality.

Technical Specifications


Capacity
Up to 6,000 sandwiches/minute
Capacity
Mark II
Capacity
Mark III
Capacity (Rectangular)
Mark II
Capacity (Rectangular)
Mark III
Belt width
Mark II
Belt width
Mark III
Product Shapes
Round,Square,Rectangular,Others
Product Dimensions (Round)
25-100mm
Product Dimensions (Square)
25-100mm
Product Dimensions (Rectangular)
30-130mm,Ratio min. 1.25
Product Height
Minimum thin products > 2.5mm
Output Efficiency
99+%

Operating Characteristics


Changeover flexibility
Ultimate flexibility between product sizes and shapes
Production capacity
Up to 6,000 sandwiches/minute
Automation level
One supervisor
Efficiency
99+%
Food safety standards
Uncompromised

Material Compatibility


Biological compatibility
Suitable for food-grade materials
Cleanability
Meets food safety standards
Corrosive resistance (e.g. acids)
Stainless steel construction
Abrasion resistance
High wear resistance components

Physical Characteristics


Machine footprint
Variable based on configurations
Belt width
1200mm or 1600mm (Mark II),1600mm or 1800mm (Mark III)
Product shapes
Round,square,rectangular,others

Custom Options


Belt width
1200mm,1600mm,1800mm
Product shapes
Round,square,rectangular,others
Product size range (Round)
25-100mm
Product size range (Square)
25-100mm
Product size range (Rectangular)
30-130mm,ratio min. 1,25
