Rotary pressure sterilizer for canned food products
Streamline your canning operations with continuous high-speed sterilization, ensuring product safety and extended shelf life for a wide range of canned goods.
Sterilizes and Agitates In-Container Products

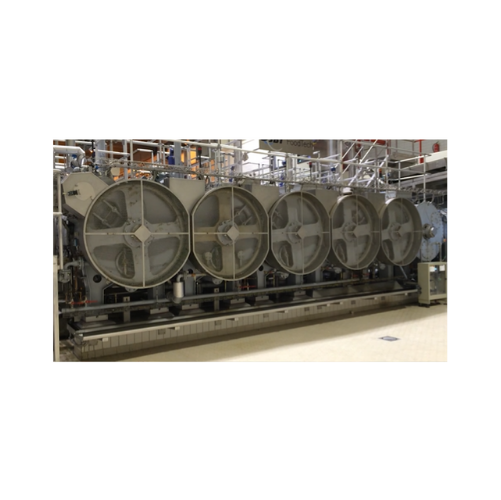

The Rotary Pressure Sterilizer from JBT is engineered for continuous sterilization and agitation of in-container products across the food and beverage industry. Utilizing induced convection technology, it excels in maintaining product quality while processing at speeds from 30 to 1,200 containers per minute. This system accommodates all cylindrical cans, offering flexibility for various applications including evaporated milk, plant-based alternatives, and ready meals. With its ability to handle multiple process combinations, it is particularly efficient in steam and water use, making it environmentally conscious and cost-effective. The PLC-controlled operations ensure seamless integration into existing production lines, while its robust construction in corrosion-resistant materials guarantees long-term reliability. The sterilizer’s design supports energy efficiency, reducing operational costs, and it is available with customizable options to meet specific processing needs.
Benefits
- Enhances product uniformity with induced convection technology.
- Cuts labor costs through continuous, high-speed operation.
- Minimizes resource use with low steam and water consumption.
- Integrates smoothly with existing lines via PLC control.
- Adapts to diverse product types, ensuring processing versatility.
- Applications
- Beverages,Soups,Sauces,Seafood,Ready meals,Meat,Dairy alternatives,Fruits,Oils,Nuts,Dressings,Poultry,Seasonings,Juices,Dairy
- End products
- Olive oil,Roasted almonds,Canned peaches,Tuna in brine,Orange juice,Salad dressings,Evaporated milk,Soy sauce,Canned chicken,Frozen fish fillets,Ready-to-eat lasagna,Marinara sauce,Bottled iced tea,Plant-based milk,Chicken noodle soup
- Steps before
- Preparation,Filling,Seaming
- Steps after
- Cooling,Labeling,Packing
- Input ingredients
- canned food products,cylindrical cans,conventional cans,stackable cans,cans with and without EOE,lithographed cans
- Output ingredients
- sterilized evaporated milk,sterilized cream,sterilized ready-meals,sterilized ready-to-eat soups,sterilized sauces,sterilized vegetables and fruits,sterilized rice-based products,sterilized beans in sauce
- Market info
- JBT is known for manufacturing innovative industrial machinery and solutions, particularly in the food processing and air transportation sectors, renowned for their advanced technology, reliability, and customer-focused engineered-to-order solutions tailored to specific industry needs.
- Operating temperature
- Up to 292°F (135°C)
- Container handling speed
- 30 to 1,200 containers per minute
- Container type supported
- Cylindrical cans (conventional,stackable,with and without EOE,lithographed)
- Steam and water consumption technology
- Lowest per container processed
- Agitation type
- Induced convection technology
- Size options
- Classic (2300mm),1500mm,2134mm,2850mm
- Working mechanism
- Rotary pressure sterilization
- Integrated steps
- In-container sterilization
- Batch vs. continuous operation
- Continuous
- CIP/SIP
- CIP 121°C
- Automation level
- PLC
- Changeover time
- Not specified
- Cleaning method
- CIP
- Corrosive resistance (e.g. acids)
- Yes
- Cleanability
- High
- Density/particle size
- Not relevant
- Heat sensitivity
- Handles up to 292°F (135°C)
- Container size and shape
- All types of cylindrical cans
- Material type
- Canned food products
- Agglomeration risk
- Adapts to various canned food products
- Container type
- Conventional,stackable,with and without EOE
- Viscosity handling
- Includes liquid-based products
- Footprint
- 2300mm,1500mm,2134mm,2850mm
- Container Compatibility
- Cylindrical cans (conventional,stackable,with and without EOE,lithographed)
- Process Combinations
- Multiple within a single unit
- Container compatibility
- Conventional,stackable,EOE,lithographed
- Agitation type
- Convection induced
- Size options
- Classic (2300mm),58-5/16″ (1500mm),84” (2134mm),112″ (2850mm)
