Rotary moulder for ice cream production

Achieve high-speed, precise ice cream moulding with seamless integration into your production line, optimizing efficiency by combining freezing, stick insertion, and coating processes in one compact unit.

Moulds and Freezes Ice Cream Products

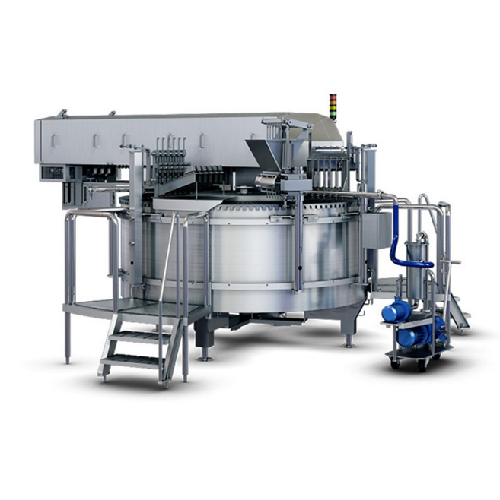

The Rotary Moulder 23 M2 from Tetra Pak is an advanced ice cream moulding machine, ideal for efficiently processing a wide range of frozen treats such as chocolate-coated bars and sherbet sticks. This machine employs mechanically driven linear extraction to ensure high-speed continuous production, managing up to 10,000 products per hour. Equipped with superior mould tables and extractor tongs, it ensures durability and reliability under the demanding conditions of food and dairy industries. The moulder features automation capabilities that adapt to different filling methods, supporting diverse product outputs with minimal manual intervention. Integration into your production line is seamless with three layout options, while the addition of two types of wrappers enhances the hygiene of the operation. Energy efficiency is bolstered by its mechanical drive, providing rapid and consistent movements, and a nozzle plate that optimizes brine-based freezing. Further customization is available through options like an electric brine heater and tong surveillance sensors, promising precise control and operational flexibility.

Benefits

  • Maximizes production efficiency by handling up to 10,000 products per hour.
  • Ensures hygiene with multilane wrapper integration, minimizing product handling.
  • Offers flexibility with adaptable filling methods for diverse ice cream products.
  • Enhances reliability and longevity with durable mould components.
  • Simplifies integration into existing lines with customizable layout options.

General


Applications
Sherbet,Moulded ice cream,Fruit juice ices,Ice cream
End products
Chocolate-coated ice cream bars,Strawberry sherbet sticks,Cream-filled ice cream lollies,Mango fruit pops,Vanilla ice cream popsicles
Steps before
Mixture preparation,Emulsification,Cooling,Pre-freezing
Steps after
Dipping,Dry coating,Wrapping,Packing
Input ingredients
ice cream mixture,sherbet,fruit juice
Output ingredients
moulded ice cream on a stick,sherbet on a stick,fruit juice ices on a stick
Market info
Tetra Pak is renowned for providing innovative packaging solutions, specializing in carton packaging for the food and beverage industry. It is esteemed for high-quality, sustainable, and efficient processing and packaging equipment on a global scale.

Technical Specifications


Capacity
Up to 10,000 products/hr
Layout Options
Three layout options
Mechanical Drive Strokes
28 strokes/minute
Extractor Type
Linear extractor
Product Handling
Multilane wrapper
Coating Application
Dry coating possible
Cooling Temperature
Brine at -40°C
Filling Method
Volumetric/top filler options
Tong Lifetime
Approximately 10 years

Operating Characteristics


Working Mechanism
Rotary Moulding
Integrated Steps
Filling,Freezing,Stick Insertion,Coating
Capacity
Up to 10,000 products/hr
Layout Options
Three Layout Options
Automation Level
Mechanically Driven

Material Compatibility


Abrasion resistance
High
Biological compatibility
Yes
Cleanability
Designed for CIP
Corrosive resistance (e.g. acids)
Stainless Steel construction
Density/particle size
0.7–1.5 g/cm³ / 50–500 µm

Product type Characteristics


Moulded product type
Ice cream,sherbet,fruit juice ices on a stick
Coating capability
Yes
Filling method
Volumetric,time elapse,pencil filler

Physical Characteristics


Mould table size
23 M2
Layout options
Three different layouts
Discharge method
Mechanically driven linear extractor
Wrapper options
Single and double laydown options
Nozzle plate size
23/27 M2
Cooling mechanism
Brine pumped at -40°C
Extractor tong
Adaptable to find and pull up ice cream sticks
Storage carriage capacity
Holds five segments
Optional sensors
Tong surveillance sensor
Production capacity
Up to 10,000 products/hr
Layout integrations
Easy integration into existing production facilities
Ice cream stick handling
Enhanced hygiene with multilane wrapper

Custom Options


Layout integration options
Three layout options
Wrapper options
Single and double lay down
Filling method customization
Volumetric,time elapse top filler,time elapse pencil filler,back suction equipment
Wrapper positioning
Stick facing backward or forward
Brine heating option
Electric brine heater
Tong monitoring option
Tong surveillance sensor
Storage solution
Storage carriage for mould segments
Coating option
Different dry coater options
