Processed cheese stick cutter

Achieve precise and consistent cheese stick production with a machine designed to streamline forming, cutting, and cooling in one seamless process, enhancing efficiency and product uniformity.

Forms and Cuts Cheese Sticks Efficiently

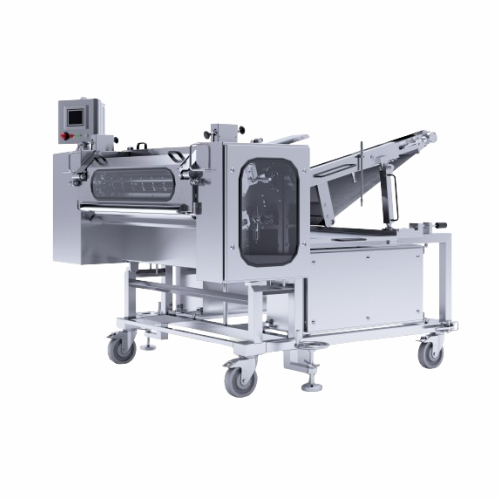

The StickCutter from the Natec Network is an innovative solution for processing cheese sticks with precision and efficiency. This machine excels at forming, cooling, and cutting processed, analogue, and hybrid cheese into uniform sticks, snacks, bars, and strips. Designed for continuous, high-speed operations, it can handle up to 1,800 kg/h with a flexible cutting system that adjusts stick lengths from 50 mm to 135 mm without mechanical changes. Its PLC-controlled system allows for seamless integration into existing production lines, with options for remote monitoring and format customization to suit various product specifications.

Crafted with stainless steel components, the StickCutter ensures durability and hygiene in food processing environments, adhering to CE guidelines. It features manual cleaning for thorough maintenance. Its mobility on rollers aids in flexible plant arrangements. Capable of processing cheese widths from 4 mm to 100 mm and thicknesses from 2 mm to 12 mm, the StickCutter maximizes throughput while minimizing manual intervention, offering a significant advantage for cheese manufacturers seeking consistent quality and production efficiency.

Benefits

  • Increases production efficiency by forming, cooling, and cutting in a single step.
  • Offers flexibility in product specifications with adjustable stick lengths and thicknesses.
  • Ensures consistent product quality through precise, continuous cutting operations.
  • Enhances operational flexibility with its mobile design for easy plant integration.
  • Supports sustainable practices by adhering to CE guidelines for safe and hygienic processing.

General


Applications
Meat products,Soups,Sauces,Mozzarella,Pasta filata,Specialty food,Vegan food,Pet food,Plant-based food,Fruits,Processed cheese,Cream cheese,Dressings,Vegetables,Baby food
End products
Cheese snacks,Cheese strips,Cheese bars,Analogue cheese sticks,Hybrid cheese sticks,Cheese batons,Processed cheese sticks
Steps before
Forming,Cooling
Steps after
Packing
Input ingredients
processed cheese,analogue cheese,hybrid cheese
Output ingredients
cheese sticks,SOS cheese sticks
Market info
Hochland Natec is known for manufacturing innovative engineered-to-order equipment and solutions for the dairy and food processing industry, specializing in cheese production and processing technologies, with a strong reputation for quality and innovation.

Technical Specifications


Size
LxWxH
Power supply
400 V,50 Hz,3 phase / 8 kVA
Capacity
Up to 1,800 kg/h (4,000 lbs/h)
Cutting speed
Up to 150 cuts/min
Stick width
4 mm - 100 mm (0.16" - 4")
Stick length
8 mm - 500 mm (0.3" - 19")
Stick thickness
2 mm - 12 mm (0.08" - 0.5")
Cheese types
Processed cheese,analogue,hybrid cheese
Cleaning method
Manual cleaning
Compliance
According to CE guidelines

Operating Characteristics


Working mechanism
Continuous cutting system
Integrated steps
Forming,cooling,and cutting in one step
Changeover time
Length changes possible without mechanical modification
Automation level
HMI controlled
Movability
Movable on rollers
Cleaning method
Manual cleaning
Batch vs. continuous operation
Inline Continuous

Material Compatibility


Cheese Types Compatibility
Processed cheese,analogue cheese,hybrid cheese
Cleanability
Manual cleaning

Physical Characteristics


Machine footprint (LxWxH)
2,000 x 2,100 x 1,500 mm (78" x 82" x 59")
Movability
Movable on rollers
Stick width
4 mm - 100 mm (0.16" - 4")
Stick length
8 mm - 500 mm (0.3" - 19")
Stick thickness
2 mm - 12 mm (0.08" - 0.5")

Custom Options


Control panel type
HMI with format adjustments
Integration possibilities
Integration with FreeSlice and other SOS cheese systems
Cheese stick length adjustment
50 mm to 135 mm without mechanical modification
Movability
Movable on rollers for flexible placement
Additional functions
Cutting shaft customization according to formats
