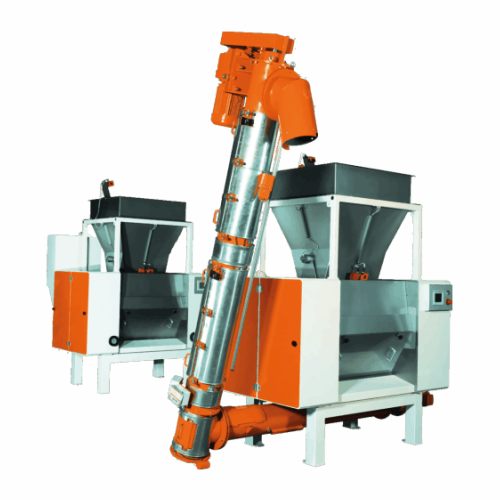

Pre-refiner for chocolate processing

Optimize pre-refining in chocolate and cocoa production with precise fineness control, allowing for seamless integration into your processing line.

Processes Chocolate and Cocoa for Optimal Pre-Refining

The Pre-Refiners HVS from Hamburg Dresdner Maschinenfabriken are designed to enhance your chocolate and cocoa processing. Available in the HVS 140E and HVS 100E models, these pre-refiners stand out for their automatic roller gap settings and compact hydraulic systems with pressure buffers, enabling continuous operation without production interruption. With a capacity of up to 6000 kg/h at 175 µm, these machines efficiently process both dry and soft masses, ideal for producing chocolate bars, cocoa powder, and nut pastes. The pre-refiners integrate seamlessly into your production line, featuring energy-efficient hydraulic units that reduce energy consumption. Made with stainless steel, they ensure durability and hygiene, with a design that supports easy maintenance and cleaning.

Benefits

  • Increases production efficiency by automatically adjusting fineness without halting operations.
  • Enhances flexibility in handling diverse product consistencies from solid to slurry.
  • Lowers energy costs with an optimized hydraulic system that minimizes heat generation.
  • Ensures hygienic operation and easy maintenance with stainless steel construction.
  • Integrates smoothly into existing lines with compact design and automated throughput management.

General


Applications
Grains,Malt,Nuts,Cocoa processing,Seeds,Chocolate
End products
Cocoa butter,Cocoa powder,Nut butter,Malt extract,Chocolate bars,Seed protein flour,Chocolate chips,Nut paste,Malted milk balls
Steps before
Mixing,Pre-Treating,Winnowing
Steps after
Refining,Conching
Input ingredients
dry masses,soft masses
Output ingredients
refined chocolate mixture
Market info
Hamburg Dresdner Maschinenfabriken GmbH is known for expertise in manufacturing industrial machines for the cocoa, chocolate, and confectionery industries, particularly focusing on roasting, grinding, and refining processes. They have a strong reputation for quality and innovation.

Technical Specifications


Capacity
6000 kg/h @ 175 µm
Capacity
4000 kg/h @ 175 µm
Roller Measurements (Working width)
1400 mm
Roller Measurements (Diameter)
400 mm
Roller Measurements (Working width)
1000 mm
Roller Measurements (Diameter)
400 mm
Storage tank capacity
approx. 900 kg
Storage tank capacity
approx. 600 kg
Connected load
50 kW
Connected load
40 kW
Feeding gap setting
automatic / semi-automatic
Roller pressure control
fix
Roller temperature control
automatic

Operating Characteristics


Automatic fineness adjustment
Yes,without interrupting production
Roller gap setting
Automatic/semi-automatic
Flexibility
Processes dry and soft masses
Energy efficiency
Hydraulic unit minimizes energy consumption
Compact setup
Discharge and conveying solutions with screw conveyors
Feeding system
Stainless steel storage/feeding hopper

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Capacity
1400 mm HVS 140E
1000 mm HVS 100E
~4000 kg/h @ 175 µm
Roller Measurements
HVS 140
HVS 100
1000 mm width,400 mm diameter
Storage Tank Capacity
HVS 140
HVS 100
~600 kg
Compact Setup
Discharge and conveying solutions with screw conveyors
Material
Stainless steel storage/feeding hopper
Control Panel Type
Automatic roller gap setting
Energy Efficiency
Energy efficient hydraulic unit

Custom Options


Roller gap setting
Automatic / Semi-automatic
Roller temperature control
Automatic
Feeding gap setting
Automatic / Semi-automatic
Discharge method
Screw conveyors
