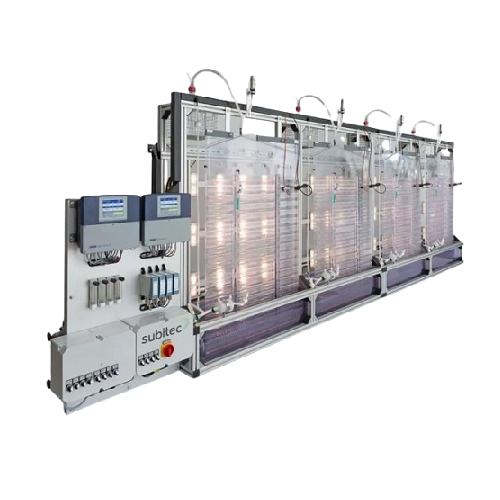

Pre-culture and laboratory systems for microalgae cultivation

Enhance your microalgae cultivation with precise control and scalability, ensuring optimal growth conditions and high-quality biomass production through innovative airlift photobioreactor technology.

Cultivates and Optimizes Microalgae Growth Conditions

Subitec’s Flat-Panel-Airlift Photobioreactor Systems offer a scalable solution for microalgae cultivation, tailored for diverse applications like pharmaceuticals, cosmetics, and carbon capture. These systems leverage air-lift technology, optimizing aeration and CO2 transfer for robust algae growth. With culture volumes ranging from 6 to 180 liters, they suit lab to pre-scale operations. Their hermetically sealed design ensures contamination-free production, ideal for sensitive and high-value microalgae strains. Integrated LED illumination and precise temperature control support high-density cultures. Systems offer easy data monitoring via touchscreen interfaces, making them adaptable for continuous or batch processes in demanding industrial environments.

Benefits

  • Ensures contamination-free cultivation, crucial for high-value microalgae products.
  • Supports scalability, seamlessly transitioning from lab to industrial-scale production.
  • Enhances growth efficiency with precise control over light, temperature, and CO2 levels.
  • Minimizes floor space usage while maximizing productivity per square meter.
  • Offers versatility for various industries, from nutraceuticals to wastewater treatment.

General


Applications
Animal feed,Nutraceuticals,Cosmetics,Pharma,Carbon capture,Wastewater treatment,Food supplements
End products
Chlorella powder,Algae-based bioremediation agents,Algal-derived carbon capture solutions,Astaxanthin capsules,Spirulina tablets,Algal beta-carotene,Algae-based animal feed additives,Algae-based detoxifying face masks,Microalgae biomass for wastewater treatment,Algae-based skincare creams,Algal protein powder,Algal dha supplements,Omega-3 algae oil
Steps before
Inoculation,Media Preparation,Culture Initiation
Steps after
Bioharvesting,Biomass Processing,Product Purification
Input ingredients
microalgae,CO2,light,temperature control
Output ingredients
microalgal biomass,high-density microalgal culture,high-quality microalgal biomass
Market info
Subitec GmbH is known for its expertise in cultivating microalgae using its unique flat-panel airlift (FPA) photobioreactor technology, providing sustainable solutions for biofuel production, bioplastics, and high-value ingredients in various industries.

Technical Specifications


Cultivation volume
6 litres
Photosynthetic surface
0.6 square metres
Lighting type
LED 4000 K / 230 V / 50 Hz / 320 W
LED intensity
80..800 µmol m-2s-1
Illuminated area
400 x 750 mm
Operating volume
6 litres
Cultivation volume
28 litres
Photosynthetic surface
2.3 square metres
LED intensity
max. 800 µmol m-2 s-1
Illuminated area
900 x 1300 mm
Operating volume
28 litres
Cultivation volume
112 litres
Photosynthetic surface
9.3 square metres
LED intensity
160..800 µmol m-2 s-1
Illuminated area
900 x 1300 mm
Operating volume
180 litres
Photosynthetic surface
9.0 square metres
LED intensity
160..800 µmol m-2 s-1
Illuminated area
1800 x 2500 mm

Operating Characteristics


Working mechanism
Flat-Panel-Airlift-Photobioreactor
Integrated steps
Multiphase cultivation process
Batch vs. continuous operation
Continuous
Automation level
Manual / PLC-controlled
CO2 transfer efficiency
Improved CO2 transfer with airlift system
Contamination prevention
Hermetically sealed design
Scalability
Lab to industrial scale
Light control
Dimmable LED grow lights
Temperature control
Precise
Photosynthetic Efficiency
High photosynthetic surface area
Shear stress management
Minimized shear stress
Mixing efficiency
Fast and effective mixing

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Contamination-free production
Hermetically sealed system

Physical Characteristics


Machine footprint
Compact
Cultivation volume
6 litres (LS6),28 litres (LS28),112 litres (LS4x28),180 litres (LS180)
Photosynthetic surface area
0.6 m² (LS6),2.3 m² (LS28),9.3 m² (LS4x28),15 m² (LS180)
Flat-Panel-Airlift-Photobioreactor
Used in all models
LED unit dimensions
400 x 750 mm (LS6),900 x 1300 mm (LS28/LS4x28),1800 x 2500 mm (LS180)
Illuminated area
Per FPA
Modularity
Multiple units (LS4x28 with 4 FPAs)
Pressure regulators
Air and CO2

Custom Options


Control panel type
Touchscreen
LED unit
Integrated,Dimmable
Photosynthetic surface
Customizable (0.6 - 15 square metres)
Airlift photobioreactor configuration
Single and Quad-core Options
Operating volume
Customizable (6 - 180 litres)
Growth environment control
Light,Temperature,CO2 levels
