Pneumatic scrapers for chocolate mould filling

Achieve precise chocolate moulding with pneumatic scrapers that streamline filling and scraping processes while ensuring a perfect finish and consistent quality across each batch.

Fills and Scrapes Chocolate Moulds Efficiently

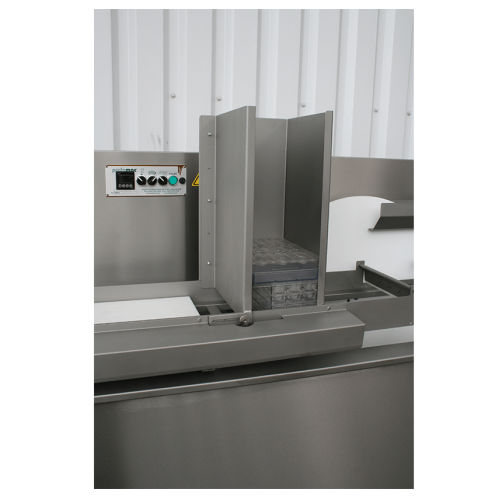

The ADAPT pneumatic scraper from Prefamac Chocolate Machines facilitates precise mould filling and effective chocolate removal, catering specifically to chocolatiers and confectionery producers. This versatile equipment is adaptable to various chocolate mould types, accommodating sizes from 275 x 135 mm to 275 x 205 mm. Its unique integration of pneumatic and vibratory functions ensures excess chocolate is efficiently scraped while the moulds are automatically vibrated for even distribution. Compatible with Prefamac’s MOULDING and CONTINUA tempering machines, it supports seamless integration into existing production lines. Operating on a single-phase electrical supply, the ADAPT can be controlled either automatically or via foot pedals, suiting varied operational preferences. Engineered with full pearled stainless steel construction and food-grade plastic components, the device prioritizes hygiene and durability. Requiring a silent compressor delivering approximately 120 L per minute at 6 bar, it enhances workspace ergonomics with optimally accessible controls and low-height loading. Designed for easy maintenance, the ADAPT can be customized for different mould sizes and capacities, supported by Prefamac’s engineering assistance.

Benefits

  • Enhances production efficiency by seamlessly integrating into existing moulding and tempering processes.
  • Increases product consistency with precise chocolate filling and uniform vibration.
  • Reduces material waste through efficient excess chocolate scraping.
  • Flexible operation options accommodate different workflow needs, improving productivity.
  • Durability and hygiene are ensured with stainless steel and food-grade plastic construction.

General


Applications
Sweets,Confectionery products,Chocolate tablets,Chocolate pralines
End products
Fruit-flavored chocolate bars,Filled chocolate bonbons,Artisan chocolate tablets,Dark chocolate bars,Milk chocolate pralines,Chocolate-coated sweets,Luxury confectionery items,Nut-filled pralines,Layered chocolate pralines,Gourmet confectionery chocolates
Steps before
Chocolate melting,Chocolate tempering
Steps after
Vibrating,Cooling,Demoulding
Input ingredients
chocolate,chocolate moulds
Output ingredients
chocolate tablets,chocolate pralines,outer chocolate layer
Market info
Prefamac is known for manufacturing high-quality chocolate processing equipment, including tempering, enrobing, and cooling machines. The company is recognized for innovative and custom-engineered solutions tailored to the confectionery industry, emphasizing precision, efficiency, and reliability.

Technical Specifications


Weight
25 kg
Dimensions
Height
Power Supply
220-240V 50Hz / 110-120V 60Hz
Tray Capacity
16 moulds or height 50 cm
Mould Length
275 mm
Mould Width Range
135 mm - 205 mm
Compressor Requirement
Approximately 120 L per minute at 6 bar
Vibration Extension
Optional 40cm

Operating Characteristics


Automation level
Foot operated / Automatic
Batch vs. continuous operation
Batch
Changeover time
Quick switch between mould types
Cleaning method
Manual cleanability
Energy efficiency
Standard electrical usage
Integrated steps
Scraping and vibrating
Operating mechanism
Pneumatic operation

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine Footprint
Height 540 mm,Length 1640 mm,Width 370 mm
Weight
25 kg
Material Construction
Full pearled stainless steel
Scraper Material
Food-grade plastic
Tray Capacity
Standard for 16 moulds or height 50 cm
Mould Dimensions
Length 275 mm,Width 135-205 mm

Custom Options


Compatibility with mould types
Type 1000,Type 2000,Type 3000
Control type
Foot operated / Automatic
Height adjustability
Yes
Integration with machines
Prefamac MOULDING MACHINE,CONTINUA tempering machine
Tray capacity
Standard 16 moulds
Electricity version
220-240V 50Hz / 110-120V 60Hz
Compressor requirement
120 L/min at 6 bar
Material of construction
Full pearled stainless steel
