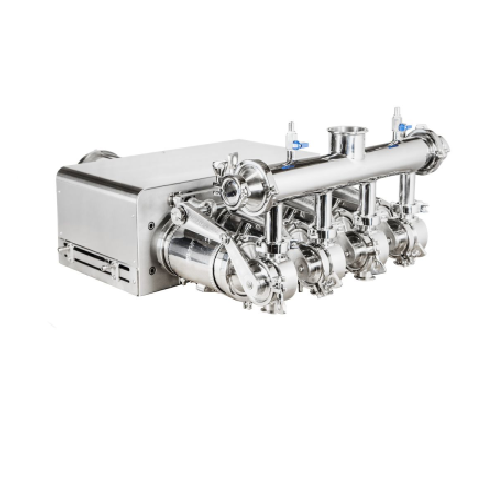

Pneumatic syringe dosing system

Streamline your liquid dosing process with precision and efficiency, ensuring each application receives the exact amount needed with minimal waste.

Dispenses Precise Liquid Quantities

Tenco’s Pneumatic Dosing Syringes offer a precise and reliable solution for liquid filling across various industries, including beverages, cosmetics, food, chemicals, and pharmaceuticals. These syringes operate using compressed air and feature intuitive controls for adjusting aspiration and dispensing speeds, ensuring a dosing accuracy of +/- 1%. With models ranging from 0 to 5000 ml, they accommodate a wide range of container types, including glass, PET, and metal. The syringes are crafted from AISI 316 stainless steel, providing superior corrosion resistance, and all product-contact parts can be easily disassembled without tools for efficient cleaning and maintenance. Designed for seamless integration, they connect easily to automated production lines and can function independently on mobile bases for flexible configurations. Ideal for applications like filling fruit juices, shampoos, sauces, cleaning agents, and liquid medicines, they support manufacturers in maintaining product consistency and operational efficiency.

Benefits

  • Ensures precise dosing with +/- 1% accuracy, minimizing product waste and ensuring consistency.
  • Saves cleaning time with tool-free disassembly, enhancing maintenance efficiency.
  • Integrates seamlessly into existing automated lines, reducing installation costs and downtime.
  • Offers versatile applications across multiple industries, expanding operational capabilities.
  • Made from corrosion-resistant AISI 316 stainless steel, ensuring longevity in harsh environments.

General


Applications
Food,Beverages,Chemicals,Cosmetics,Pharmaceuticals
End products
Sauces,Olive oil,Detergents,Perfumes,Hair conditioners,Cough syrup,Salad dressings,Dairy creams,Liquid medicine,Energy drinks,Liquid supplements,Shampoo,Cleaning agents,Liquid soap,Hand sanitizers,Fruit juices,Body lotions
Steps before
Product mixing,Formulation adjustment
Steps after
Packaging,Sealing,Thermoforming,Thermosealing
Input ingredients
compressed air,liquids,cosmetic ingredients,food ingredients,chemical components,pharmaceutical products
Output ingredients
glass bottles,jars,vials,plastic bottles,jerrycans,PET bottles,PET trays,aluminum trays,metal cans,tinplate cans,paper and cardboard bottles,flexible bags without spout,flexible bags with already welded spout,syringes,ceramic bottles,ceramic jars
Market info

Technical Specifications


Power supply
Pneumatics
Capacity
0–40 cc,2 to 100 cc,5 to 250 cc,5 to 380 cc,20 to 680 cc,50 to 1300 cc,50 to 1500 cc,200 to 5,000 ml
Accuracy
±1%
Dosage adjustment
Handwheel with graduated scale
Material
AISI 316 stainless steel
Integration capability
Automated packaging lines,thermoforming and thermosealing machines
Positioning
Free (to be installed on lines or trolleys)
Adjustability
Single handwheel for multi-head units
Cleaning method
Disassemblable without tools

Operating Characteristics


Working Mechanism
Pneumatic actuator
Integrated Steps
Simultaneous handling of multiple syringes
Batch vs. Continuous Operation
Batch
Control Type
Handwheel with graduated scale
Cleaning Method
Manual (easily disassembled without tools)
Automation Level
Can be integrated into automated packaging lines
Operation
Compressed air

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Container type
Glass,PET,Aluminum,Paper

Physical Characteristics


Footprint
Compact design for integration
Material
AISI 316 stainless steel
Control Mechanism
Handwheel with graduated scale
Disassembly
Tool-free for easy cleaning
Integration Options
Automatic production and packaging lines
Portability
Base/trolley with wheels
Dosage Range
0-40 cc to 200-5000 ml
Actuation
Single pneumatic actuator

Custom Options


Control panel type
Intuitive controls
Integration possibilities
Integrated into automated packaging lines
Integration possibilities
Can be integrated into thermoforming and thermosealing machines
Integration possibilities
Multiple dosing units for existing production lines
Customization
Customizable based on customer needs and specifications
Positioning
Free (to be installed on lines or trolleys)
