Planetary ball mills for fine grinding of materials

Optimize particle size and surface area in your samples with high-energy input and rapid pulverization for advanced material development and precise research applications.

Pulverizes and Homogenizes Materials for Research Applications

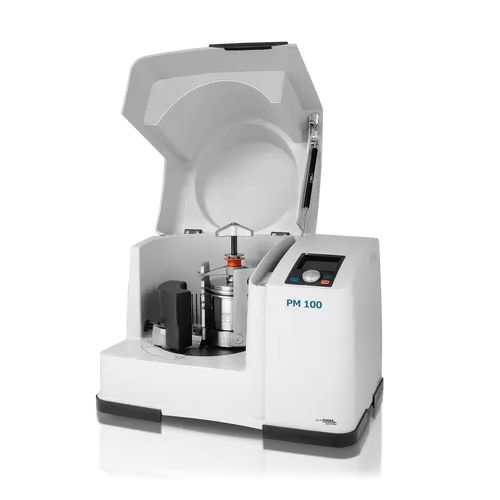

The Planetary Ball Mill PM Series, from Retsch, is designed for high-precision material pulverization and homogenization, catering to R&D laboratories, pharmaceutical manufacturers, and nanotechnology companies. Utilizing a counter-rotating jar mechanism, these mills generate significant centrifugal forces to rapidly reduce particle size to colloidal levels. Common applications include processing protein powders, APIs, and lithium-ion battery cathode materials. The PM Series offers batch processing capabilities with adjustable speed ratios from 1:-2 to 1:-3, providing flexibility for mechanochemical applications and co-crystal screening. Engineered for efficient processing, these mills operate with minimal energy consumption and are equipped with options for various jar and ball materials, including zirconium oxide for contamination-free grinding. Each model supports easy integration into lab environments, offering customizable grinding stations and PLC control for precise operation. With Retsch’s robust construction and ease of maintenance, the PM Series is a reliable choice for advanced material science research.

Benefits

  • Enables precise particle size control for consistency in end-products.
  • Supports diverse materials without contamination, ensuring clean analyses.
  • Reduces processing times with high centrifugal and Coriolis forces.
  • Customizable configurations fit specific research needs and production objectives.
  • Lowers operational costs through energy-efficient design and minimal maintenance requirements.

General


Applications
Metal powders,Pharmaceutical tablets,Fine chemicals,Nutraceuticals,Pharmaceutical powder,Agrochemicals,Biopharmaceuticals,Coating materials,Minerals,Batteries
End products
Protein powders,Herb extracts,Aspirin,Active pharmaceutical ingredients (apis),Tablet coatings,Lithium-ion battery cathode materials,Herbicides,Iron powder,Quartz powder
Steps before
Sample Preparation,Material Sizing,Homogenization,Pre-mixing
Steps after
Particle Size Analysis,Screening,Co-crystal Testing,Sample Collection
Input ingredients
soft materials,hard materials,brittle materials,fibrous materials,sample materials,sewage sludge,limestone,lapis lazuli,carotene
Output ingredients
fine particles,colloidal grinding,ultrafine particles,nanometer scale particles,co-crystals
Market info
Retsch is renowned for manufacturing high-quality laboratory equipment, specializing in milling, sieving, and assisting technologies for sample preparation and characterization, known for precision, reliability, and innovation in the scientific and industrial laboratory markets.

Technical Specifications


Material feed size
< 10 mm
Final fineness
< 1 µm,for colloidal grinding < 0.1 µm
Speed ratio
1
Grinding stations
1 / 2 / 4
Pressure measurement
0-5 bar
Temperature measurement
-25 °C - +90 °C

Operating Characteristics


Working Mechanism
Planetary motion with centrifugal and Coriolis forces
Batch vs. continuous operation
Batch
Speed ratio
1
Sample size flexibility
Soft,hard,brittle,fibrous materials
Grinding jar rotations
Dual rotation (opposite direction to sun wheel)
Energy input control
High energy input with adjustable speed ratio
Sample processing mode
Dry and wet grinding
Application versatility
Routine tasks,mechanochemistry,co-crystal screening
Grinding stations
1,2,or 4 available
Jar and ball material compatibility
Various sizes and materials

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Product type Characteristics


Grinding Mode
Dry / Wet

Physical Characteristics


Grinding stations
1,2,4
Material feed size
< 10 mm,< 4 mm
Final fineness
< 1 µm,< 0.1 µm
Speed ratio
1
Grinding jar material
Zirconium oxide,Tungsten carbide

Custom Options


Grinding stations
1,2,4
Speed ratio
1
Grinding jar materials
Steel / Zirconium oxide / Tungsten carbide
Ball material
Steel / Zirconium oxide / Tungsten carbide
Measurement system
GrindControl
Pressure measurement
0-5 bar
Temperature measurement
-25 °C - +90 °C
