Pilot unit for processed cheese slices

Perfect for R&D and small-scale production, this adaptable unit offers high flexibility in cheese slicing without requiring extensive setup, thanks to its plug-in design with integrated cooling.

Forms, Slices, and Cools Cheese Products Efficiently

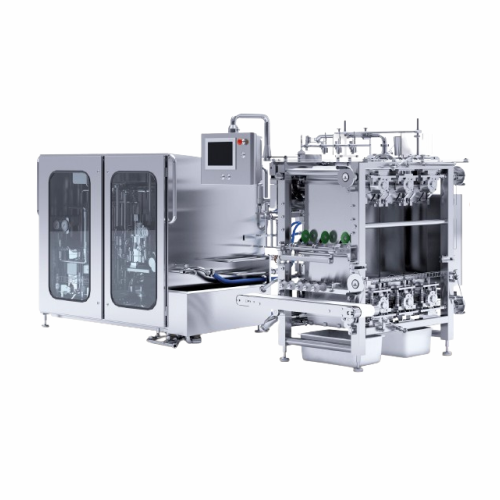

The FreeSlice 300 from Natec Network is a versatile cheese forming and slicing system designed for dairy processors, cheese manufacturers, and food production companies. This stand-alone unit excels in producing Slice-on-Slice (SOS) cheese products, cubes, shreds, and sticks through its comprehensive cooling, forming, and cutting capabilities. Ideal for pilot and small production setups, it offers a plug-in operation without the need for external cooling media. With a throughput of up to 275 kg/h, it efficiently handles processed, analogue, and hybrid cheeses, providing flexibility with adjustable thickness and multiple format options. Its PLC-controlled system ensures seamless integration into existing production lines, while offering options like diagonal cuts and oil-spraying for further customization. Built according to CE guidelines, the FreeSlice 300 emphasizes easy cleaning and maintenance, making it a reliable choice for R&D and operational settings.

Benefits

  • Enhances production versatility by accommodating various cheese types and formats with easy modular add-ons.
  • Minimizes setup time with its plug-in design requiring no external cooling medium, facilitating rapid deployment.
  • Increases output efficiency with up to 360 slices per minute, optimizing production rates.
  • Simplifies maintenance through its easy-to-clean design, supporting manual and CIP cleaning practices.
  • Supports R&D and pilot scale production, allowing for flexible testing and development of new cheese products.

General


Applications
Meat products, Soups, Sauces, Mozzarella, Pasta filata, Specialty food, Pet food, Fruits, Plant-based, Processed cheese, Cream cheese, Dressings, Vegetables, Vegan, Baby food
End products
Cheese cubes, Hybrid cheese slices, Cheese sticks, Analogue cheese slices, Cheese shreds, Slice-on-slice (sos) cheese
Steps before
Emulsification, Grinding, Blending / feeding, Cooking, Pasteurising
Steps after
Cutting, Stacking, Grouping, Packing
Input ingredients
processed cheese, analogue cheese, hybrid cheese, compressed air, fresh water
Output ingredients
Slice-on-Slice (SOS) cheese, cheese slices, cheese cubes, cheese shreds, cheese sticks
Market info
Hochland Natec is known for manufacturing innovative engineered-to-order equipment and solutions for the dairy and food processing industry, specializing in cheese production and processing technologies, with a strong reputation for quality and innovation.

Technical Specifications


Size (LxWxH)
1, 250 x 1, 080 x 2, 000 mm
Power Supply
400 V, 50 Hz, 3 phase / 30 kVA
Capacity
Up to 275 kg/h
Slicing Speed
Up to 360 slices/min
Compressed Air Requirements
1 m³/h at 6 bar
Width of Cheese Ribbon
Up to 400 mm
Cheese Thickness Range
2.0 mm - 10 mm
Cleaning Method
Manual cleaning, CIP circle = cooling circle

Operating Characteristics


Automation level
Manual / PLC / SCADA
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
Manual cleaning, CIP circle = cooling circle
Energy efficiency
Not specified
Changeover time
Not specified
Cleaning method
CIP / Manual
Working mechanism
Slice-on-Slice (SOS) production
Integrated steps
Cooling and forming
Flexibility
Formats and cheese types

Material Compatibility


Cleanability
Manual / CIP
Corrosive resistance (e.g. acids)
Stainless steel
Biological compatibility
Food-grade materials
Abrasion resistance
High durability materials


CE marking
Yes
FDA materials
Yes
GMP Compliance
Yes

Physical Characteristics


Machine footprint
1, 250 x 1, 080 x 2, 000 mm (49" x 43" x 79")
Width of cheese ribbon
Up to 400 mm (16")
Standard thickness
Infinitely adjustable from 2.0 mm - 10 mm (0.08" - 0.5")

Custom Options


Plug-in system
Stand-alone unit
Format flexibility
Various cheese slice formats
Additional modules
CubeCutter, CrossCutter
Modularity
Adaptable add-ons
Execution options
Diagonal cut device, Oil spraying unit
Cheese type versatility
Processed, analogue, hybrid
Cooling system
Integrated cooling unit
