Multipiston food filling machine
Experience precise and versatile portion control with high-speed, servo-driven piston depositing, ensuring gentle handling of particulates and the ability to fill a wide array of products, from sauces to bakery fillings, without compromising quality or integrity.
Deposits, Fills, and Portions with Precision

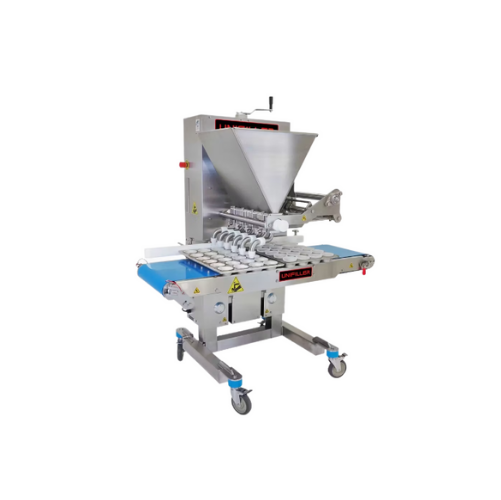

The MultiStation Servo Driven High-Speed Piston Depositor from Unifiller Systems delivers precision and versatility in food and pharmaceutical processing. This robust depositor utilizes a servo-driven mechanism to achieve accurate portion control, vital for consistent product quality across a range of applications, including sauces, dips, lasagna, and bakery fillings. Capable of depositing up to 60 cycles per minute, the Multistation handles diverse product viscosities from liquids to solids and slurries, even managing chunks up to 1/2” without damage.
Designed for seamless integration into existing production lines, the Multistation supports automated operations with its PLC controls and optional built-in conveyor. Energy-efficient and operator-friendly, its tool-free quick-change design lowers maintenance time and costs. An 11 US gallon (42 liters) hopper ensures continuous productivity, while the choice of nozzles and product cylinders allows customization to meet specific production needs. Whether in food, baking, pharmaceutical, or pet food industries, this machine’s compliance with hygiene standards and easy washdown feature ensures it meets the demands of modern processing environments.
Benefits
- Enhances product consistency with precise multi-piston depositing control.
- Minimizes maintenance with a tool-free, quick-change design.
- Increases operational efficiency by handling chunks and inclusions without product damage.
- Saves time with a high-speed output of up to 60 cycles per minute.
- Ensures flexibility in production lines with customizable nozzle and cylinder options.
- Applications
- Lasagna,Sauces,Dips,Fruit type fillings,Bakery products
- End products
- Apple pie filling,Spinach artichoke dip,Fruit danish,Strawberry filling,Cream cheese dip,Blueberry filling,Tomato basil sauce,Hummus dip,Beef lasagna,Marinara sauce,Cheese lasagna,Chocolate croissants
- Steps before
- Ingredient Preparation,Mixing,Pre-Cooking
- Steps after
- Packaging,Cooling,Labeling
- Input ingredients
- fruit type fillings,sauces,lasagna,dips,delicate products,chunks,inclusions,stiff heavy products
- Output ingredients
- precise portion control,multi-piston depositing,chunky inclusions,spread and fill products
- Market info
- Unifiller Systems is known for manufacturing innovative and precise food processing and bakery equipment, specializing in automated portioning and depositing solutions that enhance efficiency and consistency for bakeries and food production lines globally.
- Cycle Speed
- Up to 60 cycles per minute
- Deposit Range
- 0.25 oz – 8.75 oz per nozzle
- Particle Size
- Up to 1/2″(13 mm) of fruit type fillings
- Power Requirements
- Air
- Electrical
- 220 VAC
- Hopper Capacity
- 11 US gal (42 liters)
- Automation
- Computer controlled servo drive
- Nozzle Configuration
- Choice of 6 or 8 across nozzles
- Product Cylinders
- 3 product cylinders
- Working mechanism
- Servo-driven piston depositor
- Integrated steps
- Multi-piston depositing
- Batch vs. continuous operation
- Inline Continuous
- Changeover time
- Quick-change design
- Cleaning method
- Easy washdown
- Automation level
- Computer controlled
- Tool requirements
- No tools required
- Cleanability
- Easy Washdown
- Compact footprint
- Yes
- Machine footprint
- Compact
- Nozzle configuration
- 6 or 8 across
- Product cylinders
- 3
- Hopper capacity
- 11 US gal (42 liters)
- Discharge method
- Multiple pistons
- Conveyor integration
- Available with or without built-in conveyor
- Control system
- Computer controlled servo drive
- Nozzle configuration
- Choice of 6 or 8 across nozzles
- Product cylinders
- 3 product cylinders
- Communication control
- Central Console Communication Control Box (optional)
