Multi-stage centrifugal pump for hygienic applications

Ensure optimal hygiene and performance in your liquid processing with this multi-stage centrifugal pump, designed to handle continuous high-speed operations while maintaining strict cleanliness standards.

Pumps and Maintains Hygiene in Liquid Processes

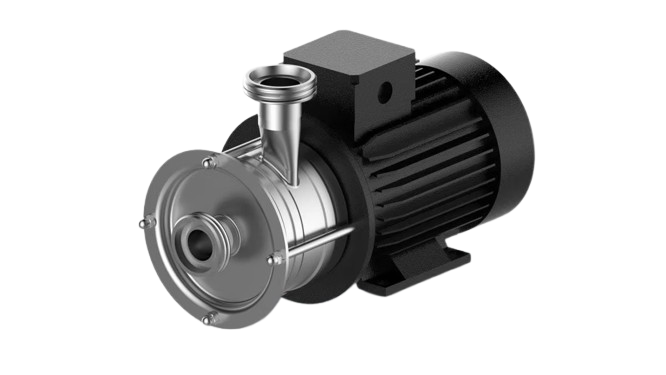

The GEA Hilge DURIETTA multi-stage centrifugal pump is engineered to meet the rigorous hygiene requirements of the food, beverage, and pharmaceutical industries. This pump stands out due to its CIP and SIP capabilities, ensuring hygienic operation throughout processes such as centrifuging, pumping, and cleaning. Crafted from stainless steel AISI 316L, it provides excellent corrosion resistance and durability, making it suitable for applications ranging from fruit juice processing to pharmaceutical production.

With a flow rate of up to 8 m³/h and a head capacity of 75 m, the DURIETTA supports high-speed, continuous operations effectively. It integrates seamlessly into existing production lines with connection options like DIN threads and TRI-CLAMP flanges. The pump’s semi-open impeller design allows for easy cleaning and maintenance, while multiple mechanical seal options enhance reliability under varying operational conditions. Compliant with DIN 12462 standards, the DURIETTA ensures adherence to stringent industry regulations, and customization options are available to tailor performance to specific process demands.

Benefits

  • Ensures optimal hygiene with CIP and SIP capabilities, minimizing contamination risks.
  • Enhances operational efficiency with a high flow rate and head capacity for faster processing.
  • Reduces maintenance downtime through easy cleaning with semi-open impeller design.
  • Offers versatile integration with various connection options to fit existing systems.
  • Provides durability and corrosion resistance with stainless steel construction, ideal for demanding environments.

General


Applications
Food,Food processing plants,Microbreweries,Drinking water systems,Beverage,Personal care industries,Pharmaceutical and related industry,Cip systems,Dairies,Bottling systems
End products
Sauces,Bottled water,Milk,Facial cleanser,Prepared meals,Protein shakes,Hand sanitizer,Nutritional supplements,Process water,Cip cleaning solutions,Beer,Yogurt,Liquid soap,Carbonated soft drinks,Fruit juices,Pharmaceuticals
Steps before
Purification,Emulsification,Grinding
Steps after
Sterilization,Packing
Input ingredients
food,beverages,drinking water,pharmaceutical ingredients,semi-conductor materials,personal care ingredients
Output ingredients
processed food,processed beverages,clean drinking water,processed pharmaceutical products,processed semi-conductor products,processed personal care products
Market info
GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.

Technical Specifications


Flow
8 m³/h
Head
75 m
Operating Temperature
95 °C
Operating Pressure
max. 8 bar
Material
Stainless Steel AISI 316L
Mechanical Shaft Seal
Single / Double (tandem)
Installation Type
Horizontal
Pump Type
Single- and Multi-Stage
Connection Type
Threads DIN 11851,SMST,DIN 11864-1,Flanges EN 1092-1,DIN 11864-2,TRI-CLAMP
Impeller Type
Semi-open

Operating Characteristics


Working mechanism
Centrifugal
Batch vs. continuous operation
Batch / Inline Continuous
CIP/SIP
CIP 121°C / SIP 135°C
Automation level
Manual / PLC / SCADA
Cleaning method
CIP / Manual

Product type Characteristics


Industry applications
Food,Beverage,Pharmaceuticals
Product applications
CIP systems,drinking water systems


CIP/SIP capability
CIP 121°C / SIP 135°C

Physical Characteristics


Material
Stainless Steel AISI 316L
Pump Type
Single- and Multi-stage Centrifugal
Installation Type
Horizontal
Impeller Type
Semi-open
Footprint
Compact
Shaft Type
Plug-in

Custom Options


Shaft Seal Arrangement
Single mechanical seal / Double mechanical seal (tandem)
Connection Type
Threads DIN 11851 / Threads DIN 11864-1 / Flanges EN 1092-1 / Clamps TRI-CLAMP
Material of Construction
Stainless Steel AISI 316L
Installation Type
Horizontal installation
Design Variant
GEA Hilge DURIETTA K,GEA Hilge DURIETTA K-SUPER
