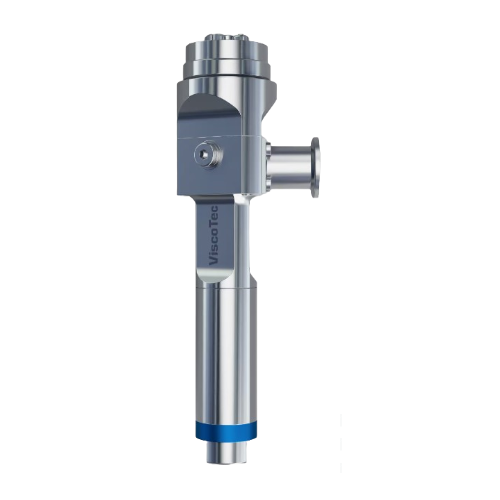

Modular dispenser for dosing adhesives and abrasive media

Streamline your production line with a modular dispenser designed to enhance precision dosing and reduce downtime through rapid maintenance and adaptable configurations for various applications.

Dispenses and Mixes Liquids and Slurries

The vipro-PUMP series from ViscoTec GmbH sets a new standard in modular dosing solutions, offering adaptability for diverse industry needs. Its core innovation lies in a separable rotor assembly, allowing fast installation and efficient maintenance, reducing downtime. With variable rotor and stator materials, it caters to both abrasive media and standard applications, such as adhesives. The system features an enlarged pump inlet for improved flow and easy hose connection, while two larger bleed openings ensure air-free dosing. Available in multiple sizes with dosing volumes from 0.14 to 5.2 ml/rev, it integrates seamlessly into automated production lines across industries like dental, electronics, and pharmaceuticals. The optional M6 sensor provides precision in pressure and temperature monitoring, ensuring optimal performance.

Benefits

  • Minimizes operational downtime with quick and easy maintenance features.
  • Ensures precise dosing and material consistency across various applications.
  • Enhances production flexibility with modular design and customizable components.
  • Improves safety and performance monitoring with optional real-time pressure and temperature sensors.
  • Supports integration into automated systems, maximizing production efficiency.

General


Applications
Food,Automotive,E-mobility,Consumer goods,Cosmetics,Dental,Aerospace,General industry,Medical technology,Electronics,Pharmaceuticals
End products
Adhesive tapes,Aerospace lubricants,Battery electrolytes,Liquid pharmaceuticals,Printed circuit boards,Automotive sealants,Lip balms,Bottled skincare serums,Electric vehicle coolants,Chocolate fillings,Industrial sealants,Medical gels,Dental composites
Steps before
Material Preparation,Mixing,Pre-treatment
Steps after
Quality Control,Assembly,Final Packaging
Input ingredients
abrasive media,adhesives
Output ingredients
bubble-free dosing,material flow
Market info
Visco Tec is known for its precision dispensing and dosing technology, specializing in equipment for viscoelastic fluids, offering reliable, high-quality solutions for industries like pharmaceuticals, food, cosmetics, and general manufacturing, renowned for engineering excellence and innovation.

Technical Specifications


Dosing volume
0.14 to 5.2 ml/rev
Pressure measurement
up to 40 bar
Temperature measurement
up to 50°C
Modular design
Yes
Rotor and stator materials
Ceramic,HVC
Bleed openings
Two larger modular
Pump inlet
Enlarged

Operating Characteristics


Working mechanism
Separable rotor assembly
Modularity
Variable rotor and stator materials
Air bubble prevention
Dual bleed openings
Installation and maintenance speed
Fast installation/removal of components
Automation level
Variable drive attachment with locking ring

Material Compatibility


Abrasion resistance
Ceramic rotor with matching stator
Cleanability
Yes

Custom Options


Modular design
Separable rotor assembly
Variable rotor and stator materials
Ceramic rotor,HVC rotor
Material outlet fitting
M6 pressure and temperature sensor
Drive attachment
Locking ring and coupling
