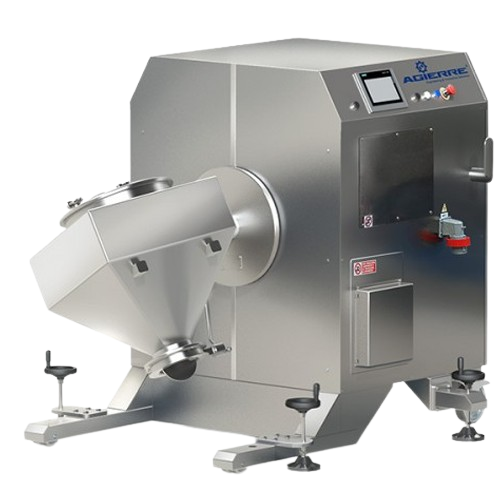

Mobile bin blender for mixing and homogenizing dry powders

Ensure thorough powder uniformity and eliminate cross-contamination risks with a mobile solution designed for precise mixing and homogenizing in dynamic production environments.

Mixes and Homogenizes Powders Efficiently

The Mobile Bin Blender from AGIERRE is designed for precise mixing and homogenizing of dry powders, primarily serving the pharmaceutical and chemical industries. It features a mobile, PLC-controlled system that ensures secure and efficient operations with variable-speed adjustments between 4 to 20 rpm for optimal mixing. This equipment is tailored for handling pharmaceutical excipients, APIs, vitamin supplements, and more, directly within the bin to avoid contamination.

The blender’s advanced design incorporates a 30° incline for enhanced mixing performance and a robust motor capable of clockwise and counterclockwise bin rotation. Constructed from durable carbon steel and stainless steel AISI 304, the blender ensures easy cleaning and inspections. It meets cGMP guidelines and complies with UNI EN ISO and ATEX standards, making it a reliable choice for safe operations. The system can be customized to client specifications, offering flexibility in processing bins from 5 to 300 liters with a maximum load capacity of 150 kg.

Benefits

  • Enhances batch consistency by ensuring thorough powder homogenization.
  • Minimizes contamination risk with direct bin processing and efficient sealing.
  • Supports flexible operations with variable-speed control for diverse powder types.
  • Simplifies cleaning and maintenance with easy-to-access design and high-quality materials.
  • Ensures regulatory compliance with adherence to cGMP and ATEX standards.

General


Applications
Chemical powders,Detergents,Fine chemicals,Nutraceuticals,Pharmaceutical powder
End products
Active pharmaceutical ingredients (apis),Vitamin supplements,Fine chemical catalysts,Herbal extracts,Protein powder blends,Chemical fillers,Pharmaceutical excipients,Cleaning detergents
Steps before
Grinding,Pulverizing,Drying
Steps after
Packing,Sterilization
Input ingredients
dry powders,BIN,IBC,plastic containers,pharmaceutical powders,chemical powders
Output ingredients
homogenized powders,mixed powders
Market info
Agierre is known for its expertise in designing and manufacturing customized engineered-to-order industrial equipment, with a strong reputation for innovation, quality, and delivering tailored solutions to meet specific client needs in various industries.

Technical Specifications


Capacity
5–300 L
Portata massima
150 kg
Rotation Speed
4–20 rpm
Automation
PLC-controlled
Material
Stainless steel AISI 304
Inclination Angle
30°

Operating Characteristics


Working Mechanism
Rotational mixing
Automation Level
PLC-controlled
Batch vs. Continuous Operation
Batch
Rotation Speed
4–20 rpm
Safety Features
Electro-locking system
Cleaning Method
Manual

Material Compatibility


Cleanability
High
Corrosive resistance (e.g. acids)
Stainless steel AISI 304
Density/particle size
Varied for dry powders

Product type Characteristics


Container Size
5–300 liters
Main Application
Pharmaceutical,Chemical

Physical Characteristics


Machine footprint
Compact/mobile
Bin Capacity
5 to 300 liters
Bin Inclination
30°
Material of Construction
Stainless Steel AISI 304
Maximum Load Capacity
150 kg
Rotation Speed
4 to 20 rpm
Mobility
Antistatic wheels with brakes
Control Interface
Touch panel

Custom Options


Control panel type
Touch panel
Bin capacity range
5–300 liters
Rotation speed
4–20 rpm
Material options
Stainless steel AISI 304
Frame material
Galvanized carbon steel
Custom design
Based on client process requirements
