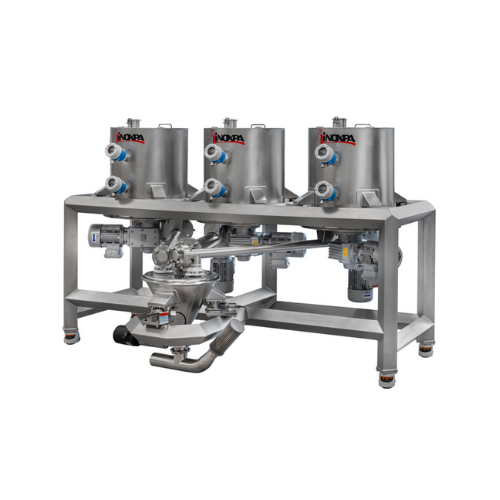

Micro ingredients loading station for solid additives

Optimize precision dosing and ensure smooth transfer of powdered ingredients with a versatile loading station, tailored for seamless integration into your production line.

Precisely Doses and Transports Micro Ingredients

The Micro Ingredients Loading Station from INOXPA is engineered for precise dosing and efficient transportation of powdered ingredients across various industries, including food, dairy, bakery, beverages, cosmetics, and pharmaceuticals. It integrates seamlessly into your production line, ensuring controlled dosing via a worm screw mechanism and facilitating transportation through rotary valves, butterfly valves, and vibrators. This unit supports applications like muffin mix, whey protein powder, and pharmaceutical powders. Its modular design offers flow rates between 60 to 180 kg/hour, customizable to your installation needs. Constructed with AISI 316 and 304 stainless steel, it ensures durability and resistance to corrosion. The station is equipped with a micro ingredient sieve to prevent contamination and features options like semi-automatic tank loading and automatic aspiration systems. Designed for both semi-automatic and manual operations, the Micro Ingredients Loading Station ensures compliance with industry standards while maintaining ease of maintenance and integration.

Benefits

  • Ensures accurate ingredient dosing, enhancing product consistency and quality.
  • Reduces labor involvement with semi-automatic operation, lowering overall production costs.
  • Provides corrosion resistance with AISI 316/304 stainless steel, extending equipment lifespan.
  • Meets industry regulations, supporting compliance in food and pharmaceutical manufacturing.
  • Offers flexible integration into existing production lines for streamlined operations.

General


Applications
Food enhancers,Sugar,Bakery ingredients,Gums,Cosmetic powder,Dairy powder,Flour,Beverage additives,Salt,Non-food solid powders,Pharmaceutical powders
End products
Detergent powder,Antibiotic powder,Granulated sugar,Xanthan gum,Cake flour,Sea salt,Msg seasoning,Beverage flavoring powders,Muffin mix,Face powder,Whey protein powder
Steps before
Grinding,Purification,Drying
Steps after
Transportation,Mixing,Blending,Packing
Input ingredients
enhancers,sugar,flour,salt,gums,powdered ingredients,minor ingredients,non-food powders,starch,grain
Output ingredients
dosed micro ingredients,ingredient blend,raw material transfer,powdered materials
Market info
INOXPA is known for its expertise in manufacturing stainless steel components and equipment, particularly for the food, dairy, cosmetic, and pharmaceutical industries. They are reputed for high-quality, hygienic, and reliable processing solutions.

Technical Specifications


Dosing type
Manual / Auto
Flow rate
60–180 kg/hour

Operating Characteristics


Working mechanism
Controlled dosing via worm screw
Integrated steps
Micro ingredient transport and dosing
Batch vs. continuous operation
Batch
Automation level
Manual / Semi-automatic options
Cleaning method
Manual
Energy efficiency
Depends on product and installation
Flow rate
60–180 kg/hour
Scale accuracy
Based on system settings
Material handling
Sifters,rotary valves,vibrators
Powder aspiration
Manual or automatic options

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm
Materials in contact with product
AISI 316
Other stainless steel parts
AISI 304
Guards
AISI 316
Seals
TR08 FDA cellular silicone


FDA materials
TR08 FDA cellular silicone
ATEX certification
Non-standard ATEX marking

Physical Characteristics


Machine footprint
Depends on the number of tanks
Tank shape
Loading tanks
Feed method
Manually operated powder aspiration system
Discharge method
Worm screw,rotary valves
Sieve included
Micro ingredient sieve

Custom Options


Automatic powder aspiration system
Available
Manual powder aspiration system
Available
Semi-automatic tank loading system
Available
Non-standard ATEX marking
Available
Micro ingredient loading tanks
Number based on customer requirements
