Liquid/liquid extraction mixer-settler plant
Optimize your extraction processes with a highly efficient mixer-settler system that ensures precise separation and integration in continuous multi-stage operations, ideal for producing high-purity extracts and intermediates.

Performs Multistage Liquid-Liquid Extraction

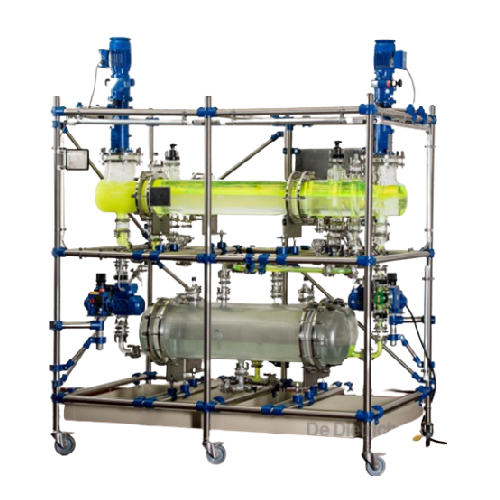

The Mixer-Settler Plant from De Dietrich Process Systems is an engineered solution designed for efficient multistage liquid-liquid extraction. It features a QVF® mixer-settler system, utilizing high-speed turbine stirrers or optional suction stirrers made from borosilicate glass 3.3 and PTFE for optimized mixing and phase separation. Ideal for industries such as pharmaceuticals and fine chemicals, it accommodates the extraction of active pharmaceutical ingredients, vitamin E, curcumin extracts, and more. With flow rates up to 4000 l/h and density differences down to 5%, this system ensures precise control and flexibility across a wide operational range. The unit is housed in a tubular steel structure with EX-rated options for safe operation in explosive environments. Energy efficiency is boosted by the adjustable stirrer speed, while its components are compatible with the QVF® SUPRA-Line system, enhancing customization and integration into existing setups. Maintenance is straightforward with easy access to components and compliance with TA-Luft standards ensures high corrosion resistance and minimal emissions.
Benefits
- Enhances production efficiency with continuous and reliable multistage extraction.
- Ensures precise chemical separation, improving product purity and yield.
- Lowers maintenance costs with corrosion-resistant materials and easy accessibility.
- Increases operational safety with EX-rated options for hazardous environments.
- Facilitates customizable integration, aligning seamlessly with your existing systems.
- Applications
- Specialty chemicals,Agricultural chemicals,Fine chemicals,Bio-pharmaceuticals,Pharmaceuticals
- End products
- Agricultural herbicides,Active pharmaceutical ingredients,Botanical extracts,Extraction of alkaloids,Pharmaceutical grade solvents,Drug formulation ingredients,Agrochemical intermediates,Vitamin e extracts,Specialty dye intermediates,Curcumin extracts
- Steps before
- Heating,Dosing,Pumping,Intermediate Storage
- Steps after
- Phase Separation,Intermediate Storage,Purification,Packing
- Input ingredients
- heavy phase,light phase
- Output ingredients
- raffinate phase,extract phase
- Market info
- De Dietrich is renowned for manufacturing high-quality engineered-to-order (ETO) equipment, specializing in chemical process systems, glass-lined reactors, and filtration technologies, with a strong reputation for innovation, reliability, and safety in the chemical and pharmaceutical industries.
- Flow Rate
- Up to 4000 l/h
- Density Difference
- Up to 5%
- Material
- Borosilicate Glass 3.3,PTFE
- Speed Range of Stirrer
- 0 - 60 or 0 - 80 r/min
- Electrical Capacity per Stirrer Drive
- 0.09 - 0.55 kW
- Length x Depth x Height of 2-Mixer-Setter Stages
- 1500 x 800 x 1500 mm to 3000 x 1500 x 1900 mm
- Capacity per Dosing Pump
- 30 - 1140 l/h
- Volume of Intermediate Receiver
- 50 - 300 l
- Pump and Stirrer Drives
- EX-rated
- Corrosion Resistance
- High
- Intermediate Receiver Materials
- Borosilicate Glass 3.3
- Control System
- Available
- Compliance
- TA-Luft
- Options
- Coalescers,Jacketed version,Suction stirrers
- ATEX Zone
- Up to Zone 1 IIC
- Automation level
- Manual / PLC
- Batch vs. continuous operation
- Continuous
- Cleaning method
- Manual / Easy to clean
- Corrosion resistance
- High
- Pumping capacity
- EX-rated areas supported
- Process optimization transparency
- Yes
- Density difference handling
- Down to 5%
- Phase separation efficiency
- High mixing performance
- Flexibility in operation
- Wide operating range
- Customization options
- Easy to modify
- Component integration
- QVF® SUPRA-Line compatible
- Corrosion resistance
- Highly corrosion resistant for universal use
- Cleanability
- Easily accessible for cleaning
- Density/particle size
- Difference in density up to 5%
- Acid resistance
- Borosilicate glass 3.3 and PTFE construction
- ATEX certification
- Zoned for EX-rated areas
- FDA materials
- PTFE with FDA material certificates
- TA Luft certification
- Certified tightness of complete flange couplings
- Nominal Diameter of Mixer-Settler
- DN100 - DN450
- Length x Depth x Height of 2-Mixer-Setter Stages incl. Structure
- 1500 x 800 x 1500 mm to 3000 x 1500 x 1900 mm
- Volume of Intermediate Receiver
- 50-300 L
- Material Construction
- Borosilicate glass 3.3,PTFE
- Settler Capacity
- 200 l/h to 4000 l/h
- Discharge Method
- Free overflows
- Control panel type
- Standard / Customized
- Integration possibilities
- Compatible with QVF® SUPRA-Line
- Jacketed version for tempering
- Available
- Additional QVF® mixer-settler stages
- Modular
- Coalescers for the settlers
- Optional
- Suction stirrer material
- Borosilicate glass 3.3
