Laboratory type ball mill for chocolate and bakery applications

Optimize your R&D processes with precise grinding and mixing, essential for developing artisanal chocolate and confectionery products in a laboratory setting.

Grinds and Mixes Chocolate and Confectionery

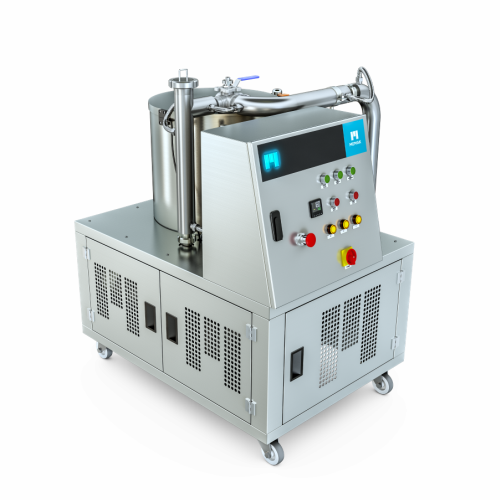

The Laboratory Type Chocolate Ball Mill MKLV-50 from Memak Professional Chocolate and Bakery Machines is designed to efficiently grind and mix chocolate and confectionery products. Featuring a compact and robust design, it is tailored for use in R&D laboratories and pilot-scale operations. The unit utilizes a powerful 1.1 kW mixer motor and a 0.75 kW chocolate pump motor to deliver precise control over particle size and product texture. With a capacity of 50 kg per batch, it supports the development of a wide range of chocolate forms and confections, such as truffles, pralines, and nougat. Its seamless integration into existing production lines makes it ideal for small-scale product testing and batch production. The MKLV-50 offers efficient energy use and straightforward maintenance, ensuring consistent performance with minimal downtime. It aligns with industry standards, providing an essential tool for chocolate manufacturers and confectionery producers aiming for excellence in product innovation.

Benefits

  • Enhances product development with precise control over chocolate consistency and texture.
  • Integrates effortlessly into existing R&D workflows, enabling seamless batch testing.
  • Minimizes energy usage through efficient motor control, lowering operational costs.
  • Supports a diverse range of chocolate and confectionery products, broadening production capabilities.
  • Simplifies maintenance with user-friendly design, ensuring consistent reliability and performance.

General


Applications
Chocolate,Sweets,Candies,Bakery products
End products
Chocolate truffles,Chocolate candies,Filled chocolate shells,Fudge,Pralines,Ganache,Toffee,Chocolate coating,Chocolate bars,Confectionery fillings,Chocolate chips,Nougat sweets
Steps before
Mixing,Pre-mixing,Conching
Steps after
Tempering,Moulding,Cooling,Wrapping
Input ingredients
chocolate mass,raw chocolate
Output ingredients
thinned chocolate mass,refined chocolate
Market info
Memak is known for manufacturing high-quality, engineered-to-order equipment primarily for the food processing industry, with a reputation for innovation, precision engineering, and reliable customer support.

Technical Specifications


Capacity
50 kg / 2-4 h
Power of Mixer Motor
1.1 Kw 72 rpm
Chocolate Pump's Motor Power
0.75 Kw 100 rpm
Total Power
4.5 Kw

Operating Characteristics


Working mechanism
Ball milling process to thin mass
Batch vs. continuous operation
Batch

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Capacity
50 kg / 2-4 h

Custom Options


Mixing speed adjustment
Variable
Batch size flexibility
50 kg
Material options for construction
Stainless Steel
Power configuration
4.5 Kw
User interface language
Multilingual
