Laboratory dispersion reactor for 10l batch processes

Enhance precision and efficiency in lab-scale liquid formulations with a versatile dispersion reactor, perfect for achieving consistent mixing and homogenization across a wide range of applications.

Manages Dispersion, Mixing, and Homogenization Processes

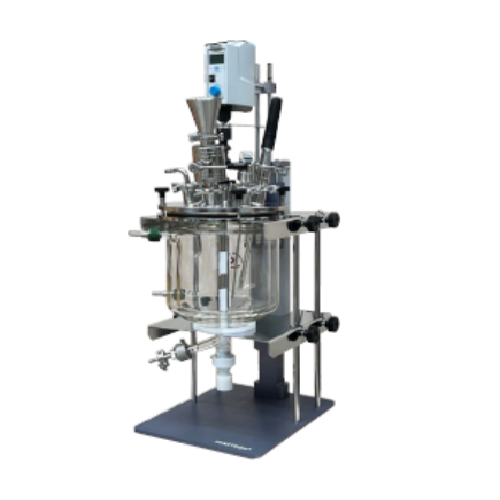

The RT 10 ELS dispersion reactor from Kinematica AG offers a robust solution for laboratory-scale dispersion and mixing tasks. Featuring a modular design, the RT 10 ELS integrates seamlessly into research and development environments, accommodating biopharmaceuticals, fine chemicals, and cosmetics production. The reactor employs a jacketed vessel option, available in borosilicate glass or stainless steel, to manage process temperatures effectively. Its telescopic stand powered by an electrical hub simplifies handling and maintenance. You benefit from high torque mixing through a maintenance-free gearbox and an anchor stirrer, ensuring uniform macro and micro-mixing. Suitable for creating biologics, APIs, or emulsions, this reactor supports precise process control critical for scale-up operations. Designed with GMP compliance in mind, it offers various customization options, including material selection to meet process-specific requirements.

Benefits

  • Ensures precise process control, facilitating smoother scale-up from laboratory to production.
  • Enhances process flexibility with configurable mixing vessels and tool options.
  • Simplifies maintenance with an integrated telescopic stand for easy access and cleaning.
  • Supports diverse applications with material options for chemical compatibility.
  • Increases operational efficiency through a maintenance-free high torque mixing system.

General


Applications
Biofuels,Liquid formulations,Fine chemicals,Nutraceuticals,Chemical compounds,Cosmetics,Biopharmaceuticals,Food products,Life sciences,Pharmaceuticals
End products
Biologics,Sauces,Specialty chemicals,Flavored beverages,Active pharmaceutical ingredients (apis),Monoclonal antibodies,Cell culture media,Emulsions,Facial serums,Biodiesel
Steps before
Purification,Emulsification,Grinding
Steps after
Sterilization,Packing,Cleaning,Dismantling
Input ingredients
borosilicate glass,stainless steel,process vessels,homogenisers,mixing systems,macro-mixing,micro-mixing
Output ingredients
mixed solutions,dispersed materials,homogenized substances
Market info

Technical Specifications


Usable Capacity
10 liters
Material
Borosilicate glass or stainless steel
Automation
Electrical stand
Stirrer Type
Anchor stirrer
Gearbox Ratio
1
Vessel Type
Jacketed vessel
Temperature Control
Single and double wall for temperature optimization
Sealing
Sealed centrical lead-through fitting
Stand Type
Telescopic with electrical hub

Operating Characteristics


Batch vs. continuous operation
Batch
Control mechanism
Telecoping stand with electrical hub
Automation level
Integrated controls
Cleaning method
Easy cleaning with integrated telescopic stand
Modular construction
Modular design with easily interchangeable components
Operating mode
Laboratory level

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Modular design
Tank shape and size
10L Jacketed vessel
Material of construction
Borosilicate glass / Stainless steel 316L
Feed/Discharge method
Bottom outlet valve
Stand type
Telescopic stand with electrical hub

Custom Options


Material of mixing vessels
Borosilicate glass / Stainless steel
Stand type
Telescopic stand with electrical hub
Vessel size
10 liter
Jacketed vessel
Yes
Vessel cover material
Stainless steel 316L
Drive flexibility
Range of dispersers drives and generators
Tri clamp connections
Several
Modular design
Yes
