Laboratory disperser for powder induction and wetting

Optimize your pilot and laboratory processes with a high-speed disperser that efficiently incorporates powders into liquids, eliminating dust and ensuring consistent, high-quality results.

Induces, Mixes, and Disperses Powders and Liquids

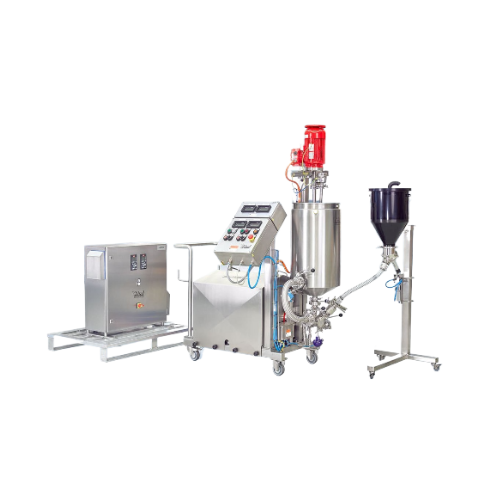

The YSTRAL PiloTec/PiloTec-Plant is a versatile lab and pilot-scale disperser designed to integrate seamlessly into R&D and production processes. It features Conti-TDS technology for efficient powder induction, dispersion, and emulsification under vacuum, promoting dust-free and loss-free operation. This multifunctional equipment supports a range of processes, including homogenizing, wet grinding, and de-agglomeration, with a flexible capacity from 5 to 200 liters. Its modular design allows for easy expansion, incorporating powder and liquid handling systems, automation, and more. Crafted from AISI 316 L stainless steel, it ensures corrosion resistance and is CIP-capable for hygienic operations. The PiloTec is ideal for chemical, pharmaceutical, food, and cosmetics industries, providing reliable scale-up from laboratory tests to production. Customization options include explosion-resistant designs and specific voltage or power configurations, backed by comprehensive engineering support.

Benefits

  • Ensures consistent results with scalable lab-to-production transfer.
  • Reduces operational costs with dust-free, loss-free powder handling.
  • Enhances product quality through complete de-agglomeration and efficient emulsification.
  • Offers flexibility with easy swappable tool changes for diverse processes.
  • Streamlines hygiene maintenance with CIP-capable design.

General


Applications
Food, Inks, Coatings, Cosmetics, Chemical, Household, Paints, Pharmaceutical
End products
Steps before
Powder Induction, Colloidal Wetting, Powder Handling, Liquid Handling
Steps after
Emulsifying, Homogenising, Wet Grinding, Mixing
Input ingredients
powder, liquids, difficult to wet powders, spontaneously swelling powders, high-foaming powders, adhesive powders, colloidal materials, raw materials
Output ingredients
emulsions, dispersed materials, homogenized mixtures, wet ground products, de-agglomerated raw material
Market info
Ystral is known for its expertise in mixing, dispersing, and powder wetting technologies, providing high-quality engineered-to-order equipment solutions for industries such as chemicals, pharmaceuticals, and food, renowned for innovation, reliability, and efficiency in process optimization.

Technical Specifications


Power
4 kW
Voltage
230 / 400 V, 50 Hz, custom voltages
Speed
Stepless up to 12, 000 min-1 with frequency converter
Material
Stainless steel 1.4404 (AISI 316 L)
Liquid throughput
0.2 - 14 m³/h
Suction power powder
Up to 15 kg/min
Shear rate
Up to 60 m/s
Batch size
Flexible from 5 l up to 200 l

Operating Characteristics


Working mechanism
Conti-TDS, Multi-Z or Z-Inline
Integrated steps
Powder induction, wetting, dispersing under vacuum
Batch vs Inline operation
Batch and Inline
Swappable tools
Multi-Z and Z-Inline system
Dust-free operation
Yes
CIP capability
Yes
Vacuum operation
Colloidal wetting
Flexibility in operation
Quick switch between processes
Energy input
Specific, independent of batch size

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Dispersion chamber material
Stainless steel 1.4404 (AISI 316 L)
Batch size
Flexible from 5 l up to 200 l

Custom Options


Control panel type
PLC-controlled
Integration possibilities
Modular components
Swappable tools
Multi-Z or Z-Inline
Explosion-resistant design
Available
Batch size
Flexible from 5 l up to 200 l
