Lab-scale filtration system for micro- and ultrafiltration

Simplify complex microfiltration and ultrafiltration tasks with a versatile benchtop system designed for easy setup and high adaptability, ensuring efficient process development and seamless integration into existing workflows.

Enables Continuous Filtration and Membrane Screening

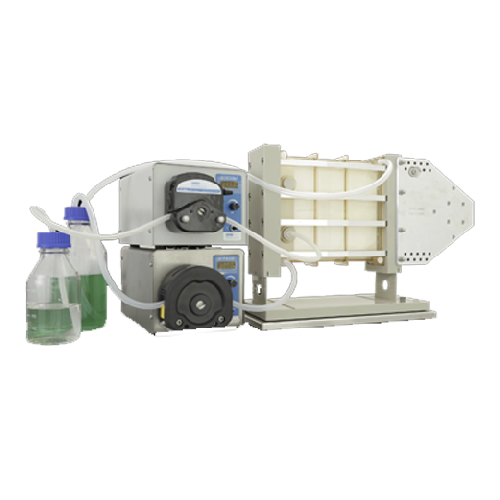

The Vibro-Lab3500 from SANI Membranes is a versatile benchtop vibro membrane filtration system designed for precise microfiltration and ultrafiltration needs. Utilizing patented Vibro® technology, it simplifies continuous filtration by eliminating the need for crossflow pumps, reducing setup complexity and operational footprint. Ideal for applications in algae, biotech, pharmaceuticals, and dairy, it efficiently processes Spirulina extracts, omega-3 supplements, and other liquid products. With a membrane area of 3500 cm² and a drainable working volume of up to 600 mL, the system supports small to pilot-scale operations, capable of handling volumes from 2 to 100 liters. Its transparent housing allows for easy inspection and monitoring of the membrane performance, while quick membrane replacement facilitates rapid adaptation to different process needs. The Vibro-Lab3500’s modular design integrates seamlessly into existing laboratory and production environments, allowing for easy connections and minimal downtime.

Benefits

  • Streamlines setup and process monitoring with transparent design and simple connections.
  • Enhances process flexibility with interchangeable membrane cartridges for various filtration needs.
  • Reduces operational costs by eliminating the need for cooling and crossflow pumps.
  • Facilitates rapid product development with easy scalability from laboratory to pilot scale.
  • Minimizes membrane fouling risk with unique Vibro® technology, ensuring longer operational cycles.

General


Applications
Liquid food,Biotech,Algae,Dairy,Pharmaceuticals
End products
Probiotic cultures,Plant-based milk,Omega-3 supplements,Vegetable protein concentrate,Spirulina extract,Whey protein isolate,Lactoferrin
Steps before
Media Preparation,Mixing,Pre-treatment
Steps after
Membrane Cleaning,Product Collection,Quality Control
Input ingredients
process media,feed materials
Output ingredients
filtered product,permeate,retentate
Market info
Sanimembranes is known for innovative membrane filtration solutions in the industrial and biotechnological sectors, emphasizing energy efficiency and sustainability. They specialize in crossflow membrane designs for ultrafiltration and microfiltration processes.

Technical Specifications


Membrane area
3500 cm²
Drainable working volume
600 mL
Ideal process volume
2-100 liter
Footprint
51 x 16 cm
System pressure
up to 2 bar
Flow rate
0-6 l/min
Membrane pore size
1 kDa to 1.2 µm

Operating Characteristics


Working mechanism
Vibro®technology
Automation level
Manual / Simple Setup
Batch vs. continuous operation
Continuous
Energy efficiency
Reduces complexity and cost
CIP/SIP
Easy cleaning with transparent housing
Changeover time
Carts replaceable in 5 minutes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Compact footprint
51 x 16 cm
Membrane area
3500 cm²
Drainable working volume
600 mL
Ideal process volume
2-100 liter
Replaceable cartridges
Yes
Setup instructions
1/2 pumps,1 feed pump and 1 permeate pump
Transparency
See-through housing
Connection type
Push-in fittings
Membrane replacement time
5 minutes

Custom Options


Compact footprint
51 x 16 cm
Membrane area
3500 cm²
Control panel type
Manual setup
Membrane replacement time
5 minutes
Push-in fittings
6 mm / 8 mm
Connection type
Push-in fittings
