Lab nutsche filter for small scale filtration
Efficiently manage filtration and drying needs in fine chemical and pharmaceutical production, ensuring high-purity end products with versatile glass-lined vessels adaptable for various batch sizes.
Filters, Dries, and Mixes Chemical and Pharmaceutical Products

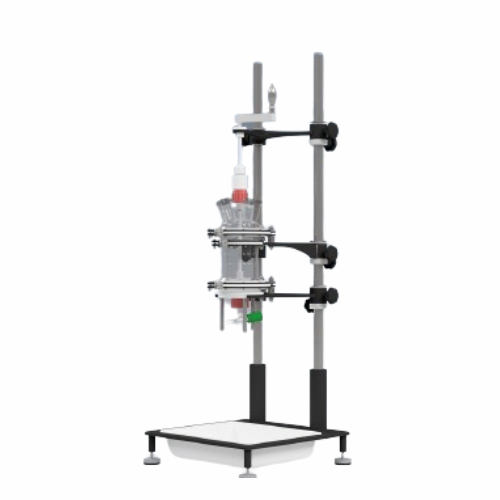

The Lab Fast Pro Nutsche Filter from NORMAG is an adaptable bench-top solution designed for chemical and pharmaceutical processing. It features a universal support frame capable of handling vessels from 100ml to 10 liters, facilitating swift swaps of glassware to minimize downtime. Its full-jacketed design ensures efficient heating and cooling, essential in processes involving temperature-sensitive reactions. The filter accommodates a wide range of applications, such as the production of active pharmaceutical ingredients, vitamin C supplements, and essential oil extracts, through its versatile filtration, drying, and mixing capabilities.
The Lab Fast Pro operates manually and supports pilot operations, making it ideal for laboratory and research environments. Its unique tool-free clamping mechanism, chemical resistance with glass and PTFE components, and integrated tilting mechanism for effortless product discharge underscore its engineering quality. With options for additional modules like distillation and liquid dosing, and a unique stirrer guide preventing PTFE flaking while maintaining chemical resistance, the system promises precise control over the production process. Customizable features and engineering support enhance its integration into existing setups, ensuring that it meets specific processing needs.
Benefits
- Enhances operational efficiency by allowing quick vessel changes, reducing downtime.
- Ensures product purity with chemically resistant components, suitable for sensitive formulations.
- Facilitates precise temperature control for consistent processing results.
- Offers flexible integration with customizable modules and third-party compatibility.
- Supports scalable laboratory and pilot processes, bridging development to production.
- Applications
- Chemical processing,Liquid formulations,Fine chemicals,Nutraceuticals,Pharmaceutical powder,Biopharmaceuticals,Essential oils
- End products
- Biopesticides,Essential oil extracts,Antibiotic powders,Active pharmaceutical ingredients,Chemical reagents,Vitamin c supplements,Plant-based extracts,Antioxidant formulations,Liquid syrups,Pain relief medications
- Steps before
- Mixing,Reaction,Dosing
- Steps after
- Drying,Filtration,Distillation
- Input ingredients
- chemical solutions,vapors,liquids,solids,high-viscosity media,solvent,membrane pump dosed liquids
- Output ingredients
- filtered liquids,dried sediment,reaction products,excess solvent,processed chemicals
- Market info
- GMM Pfaudler is known for manufacturing glass-lined equipment, reactors, and engineered-to-order (ETO) solutions for the chemical, pharmaceutical, and allied industries, recognized for their innovation, quality, and global presence.
- Capacity
- 1l to 10l
- Temperature Range
- -90ºC to +200ºC
- Main Flange Size
- DN100,DN150,DN200
- Vessel Filtration Area
- 0.008m² to 0.030m²
- Pressure Range
- Slight overpressure down to 7 mbars
- Material Exposed to Media
- PTFE,Glass,PEEK
- Plug,Play Packs
- Reflux,liquid dosing
- Stirrer Material
- PEEK-to-Glass Sealing
- Support Frame Compatibility
- Vessels 100ml to 10l
- Liquid Dosing Speed
- 0.03 ml/min
- Filter Materials Thickness
- up to 1 mm
- Batch vs. continuous operation
- Batch
- Automation level
- Manual / Customizable
- Cleaning method
- Manual
- Temperature range
- -90ºC to +200ºC
- Vessel size compatibility
- 100ml to 10 liters
- Material contact
- Glass and PTFE
- Stirring capability
- Manual with adjustable position
- Heating and cooling efficiency
- Full-jacketed with deflector
- Filter material accommodation
- Thickness up to 1mm
- Corrosive resistance (e.g. acids)
- Yes
- Cleanability
- Easy clean (CIP)
- Density/particle size
- 0.5–2.5 g/cm³
- Filter material compatibility
- Glass and PTFE
- Discharge method
- Tilting mechanism
- Machine footprint
- Universal support frame for vessels from 100ml to 10l
- Temperature range
- -90ºC to +200ºC
- Main flange sizes
- DN100,DN150,DN200
- Filtration area
- 0.008m² to 0.030m²
- Design type
- Full-jacketed and non-jacketed
- Stirrer guide
- PEEK-to-Glass sealing
- Lid necks
- 1 central and 5 peripheral
- Discharge method
- Tilting mechanism for easy discharge
- Material contact
- Only glass and PTFE
- Support Frame Size
- 1l to 10l vessels
- Main Flange Sizes
- DN100,DN150,DN200
- Temperature Range
- -90ºC to +200ºC
- Plug,Play Packs
- Reflux,liquid dosing,etc.
- Vessel Design
- Full-jacketed and non-jacketed
- Customization Options
- Additional customization upon request
- Stirrer Guide Material
- PEEK-to-Glass sealing
- Lid Sizes
- DN100,DN150,DN200
- Lid Neck Configuration
- 1 Central and 5 Peripheral Necks
- Module Options
- Drain valves,distillation,liquid dosing,etc.
- Stirrer Shaft Options
- Additional rotors for high viscosity
- Funnel Volumes
- 50ml to 1000ml
- PTFE Lids
- For heavy equipment
- Bottom Drain Connectivity
- Easy connection to receivers,filters,etc.
