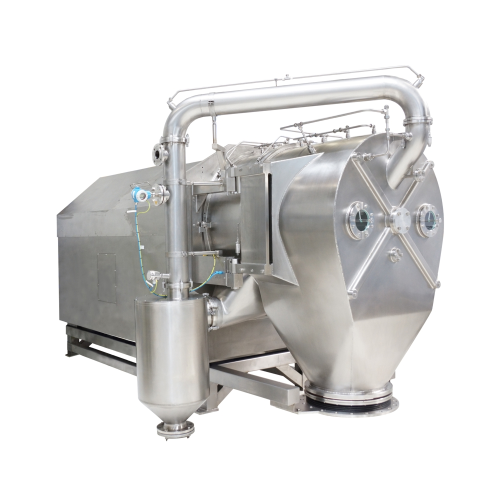

Inverting filter centrifuge for high-potent Api products

Achieve optimal separation and reduce residual moisture with precision in high-potency active pharmaceutical ingredients and specialty chemicals, ensuring efficient and continuous operations in demanding processing environments.

Processes and Separates Slurries into High-Purity Solids

The HEINKEL Drying & Separation Group’s Inverting Filter Centrifuge HF Series is designed for the rigorous demands of pharmaceutical, chemical, and fine chemical industries. This centrifuge series offers a hermetically closed design ideal for continuous and fully automated operation, ensuring no residual heel during discharge and exceptional moisture reduction. Its unique inverting filter system efficiently processes and separates a range of slurries into high-purity solids, making it indispensable for producing active pharmaceutical ingredients (APIs), specialty chemicals, and high-purity polymers.

With applications spanning pharmaceuticals to metal recycling, the HF Series supports productive capacity with basket diameters ranging from 300 mm to 1300 mm and centrifugal forces up to 1,500 x g, depending on the model. It is particularly effective in handling high-potent products with minimum installation needs, thereby maximizing product yield and quality. Engineered for seamless integration into production lines, it features PLC-controls that facilitate remote monitoring and process optimization.

The centrifuge is energy-efficient, utilizing pressure-added centrifugation to enhance performance while minimizing power usage. Available in durable stainless steel, it offers excellent corrosion resistance. Furthermore, it complies with stringent industry standards, making it suitable for GMP-regulated environments. For ease of maintenance, the HF Series includes a design that allows quick cleaning and minimal downtime, enhancing productivity and lifecycle management. Customization options, including adjustable rotor speeds and chamber dimensions, are available to meet specific operational needs.

Benefits

  • Enhances product yield by eliminating residual heel during discharge.
  • Ensures high-purity outputs with effective moisture reduction.
  • Supports continuous, automated operation to boost productivity and reduce labor costs.
  • Facilitates compliance with industry standards, ensuring safe use in GMP-regulated environments.
  • Offers robust corrosion resistance, suitable for aggressive chemical processing.

General


Applications
Chemicals,Surface coating,Fine chemicals,Metal recycling,Food products,Pharmaceuticals
End products
Recycled aluminum concentrate,Protein powders,Specialty chemicals,Active pharmaceutical ingredients (apis),Metal oxide powders,High-purity polymers,Copper grains,Biopharmaceutical powders,Surface coating pigments,Flavoring agents
Steps before
Mixing,Separation,Emulsification
Steps after
Drying,Residual moisture reduction,Final purification
Input ingredients
difficult to filter products,high potent API products,chemical products,pharmaceutical products
Output ingredients
residual heel free product,high product yield,reduced residual moisture products
Market info
Heinkel is known for manufacturing high-quality industrial equipment, specializing in centrifuges, dryers, and other engineered-to-order machinery for the chemical, pharmaceutical, and environmental sectors, with a reputation for innovation and reliability.

Technical Specifications


Basket Diameter
300–1300 mm
Filter Area
0.16–2.04 m²
Nominal Volume
6.5–435 L
Max. Speed
1,000–3,000 1/min
Centrifugal Force
720–1,500 x g
Length
2,500–5,950 mm
Width
1,000–2,600 mm
Height
1,100–3,300 mm
Weight
1,400–10,700 kg
Automation
Fully automated

Operating Characteristics


Working mechanism
Inverting filter centrifuge
Automation level
Fully automated
Batch vs. continuous operation
Continuous
Product discharge
Residual heel free
Filtration method
Thin cake filtration
Hermetically sealed design
Yes

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Varies by type,e.g.,HF 300.1
Basket diameter
300mm to 1,300mm
Nominal volume
6.5L to 435L
Max speed
1,000 to 3,000 1/min
Centrifugal force
720 x g to 1,500 x g
Weight (kg)
1,400kg to 10,700kg
Discharge method
Residual heel free

Custom Options


Control panel type
PLC-controlled
Discharge method
Residual heel free discharge
System integration
Hermetically closed design
Operation type
Fully automated,continuous operation
Moisture reduction method
Pressure added centrifugation (PAC)
