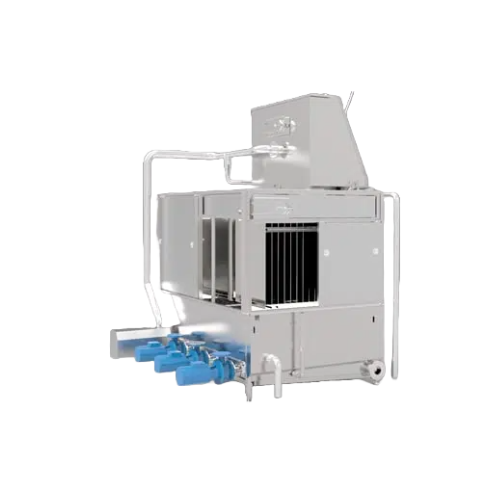

Industrial water chiller for efficient cooling

Achieve precise temperature control and efficient heat transfer with this water chiller, ideal for maintaining product integrity during processing and storage.

Cools and Circulates Liquid for Processing

The Baudelot Chiller from Cabinplant is an engineered-to-order cooling solution designed for the food processing industry. Utilizing a falling film technology, this chiller efficiently distributes water over stainless steel plates for uniform cooling, ideal for seafood, meat, and dairy applications. Inside the plates, refrigerant boils along a computer-designed path, maximizing heat transfer while minimizing pressure drops. The system offers automatic level control with a fresh water connection and recirculation pumps for consistent supply to your processes. Engineered for continuous operation, the chiller integrates seamlessly into pre-processing and main processing stages, optimizing chilling and freezing of liquid-based products. Its open construction ensures easy maintenance and cleaning, with optional rotating or parabolic screen filters to enhance filtration. Customizable for various capacities, this chiller presents a robust solution for efficient, energy-saving cooling in diverse food production lines.

Benefits

  • Enhances process efficiency by achieving near-refrigerant temperatures for liquid cooling.
  • Minimizes maintenance efforts with user-friendly open design for easy cleaning.
  • Optimizes resource usage through automated level control and recirculation features.
  • Supports diverse food processing applications, reducing the need for multiple systems.
  • Lowers operational costs with energy-efficient refrigerant path design.

General


Applications
Seafood,Dairy food,Convenience food,Pet food,Meat,Fruits,Vegetables,Poultry,Fish
End products
Salmon fillets,Chicken breasts,Broccoli florets,Milk,Beef steaks,Dog food pellets,Shrimp cocktail,Ready-to-eat meals,Mixed berry medley
Steps before
Weighing,Grading/sorting,Preparation
Steps after
Packaging,Storage
Input ingredients
Output ingredients
Market info
Cabinplant is known for designing and manufacturing tailored processing solutions for the food industry, specializing in fish, seafood, fruits, and vegetables. They are reputed for their innovative technology and efficiency in delivering customer-specific engineered-to-order equipment.

Technical Specifications


Cooling Type
Baudelot (falling film)
Material
Stainless steel
Cooling Method
Water chiller
Film Coefficient
High outside film coefficient
Pressure Drop
Low pressure drop
Refrigerant Path
Computer-designed
Automatic Level Control
Yes
Plate Design
Computer-designed cooling plates
Recirculation Pumps
Yes
Chilling Element Access
Easy access for cleaning
Built-in Filter System
Yes
Dimensions (LxHxW)
3050 mm x 3470 mm x 2830 mm
Capacity
Depends on cooling design
Enclosure
Fully enclosed operation
Cleaning Requirement
Opening needed only for cleaning

Operating Characteristics


Working mechanism
Falling film type
Automation level
Automatic level control
Cleaning method
Open construction for easy cleaning
Batch vs. continuous operation
Continuous inline

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
3050 mm x 2830 mm
Height incl. filter
3470 mm
Tank shape
Stainless steel collection tank
Feed/discharge method
Overhead distribution trough

Custom Options


Control panel type
PLC-controlled
Cooling medium
Water
Distribution method
Overhead trough
Filter system
Built-in
Cleaning access
Open construction for easy cleaning
Pump type
Recirculation pumps
