Industrial tablet press for high output production

Achieve precise control and efficient production with advanced rotary tablet presses, designed for high-speed compression and flexible operation across diverse solid dosage forms.

Compresses and Layers Pharmaceutical Tablets Efficiently

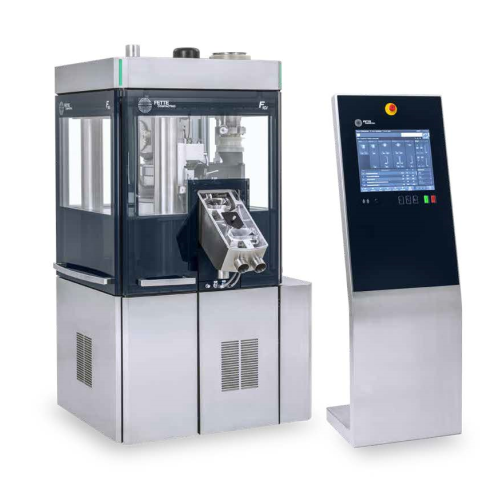

The i Series from Fette Compacting is an advanced line of rotary tablet presses, designed to meet the rigorous demands of pharmaceutical and biotech manufacturers. This series features single and double rotary presses, adaptable for both single and double-layer tablet production. Key innovations include RFID operator login for precise machine settings based on preset recipes, enhancing process reliability and reducing human error. The SmartInterface allows real-time process monitoring remotely, ensuring optimal tablet production even under high-speed continuous operation.

With models like the F10i, F20i, and F30i, the series is capable of handling large throughput, producing up to 1,584,000 tablets per hour, depending on the model. The series complies with GMP and FDA standards, offering both containment options and cross-generation system compatibility for seamless integration into existing processes. Built for efficiency, they utilize variable speed motors that contribute to energy savings while maintaining high output quality.

These machines are ideal for producing a wide range of end products, such as paracetamol and vitamin tablets, fish oil capsules, and herbal supplements, making them suitable for pharmaceutical, nutraceutical, and supplement applications. Enhanced by intuitive TRI.EASY design, the i Series ensures user-friendly operation and minimal maintenance, with customizable options to suit specific production needs, supported by Fette Compacting’s engineering expertise.

Benefits

  • Enhances production flexibility with quick turret changeovers, reducing downtime during product shifts.
  • Ensures operator precision and process stability with RFID-enabled automatic component identification.
  • Facilitates real-time process monitoring and data access remotely via SmartInterface, boosting operational efficiency.
  • Meets strict pharmaceutical standards, ensuring regulatory compliance and product safety.
  • Minimizes operation errors and improves ease of use through TRI.EASY design, optimizing user experience.

General


Applications
Nutraceuticals,Vitamins,Supplements,Pharmaceutical tablets
End products
Vitamin d tablets,Vitamin c tablets,Fish oil capsules,Herbal supplement tablets,Magnesium tablets,Multivitamin tablets,Calcium tablets,Omega-3 capsules,Iron supplements,Paracetamol tablets
Steps before
Material Sourcing,Formulation Development,Powder Blending,Granulation
Steps after
Tablet Coating,Quality Control,Packaging,Labeling
Input ingredients
tablet press components,mechanical settings,preset recipes,pharmaceutical powder,tablet production materials
Output ingredients
single-layer tablets,double-layer tablets,compressed tablets,dust-tight tablets,high-efficiency tablets
Market info
Fette Compacting is renowned for its advanced tablet press technology, offering high-performance machines and process equipment for the pharmaceutical and nutraceutical industries, emphasizing innovation, quality, and efficiency in tablet production.

Technical Specifications


Stations
45,66,110
Tablet output
324,000 - 1,584,000 tablets per hour
Tablet size
25 mm max
Dimensions and Weight
Varies per model,e.g.,Height
Width
1,112 mm
Depth
925 mm
Weight
approx. 2,100 kg
Automation
RFID Operator Login
Changeover system
Innovative turret changeover
Containment option
Available
Control integration
SmartInterface compatible
Interface software
HMI-Software Visual 8
System compatibility
Cross-generation

Operating Characteristics


Automation level
Intuitive operation / RFID Operator Login
Batch vs. continuous operation
Single and double layer tablets
Changeover time
Minimal with turret changeover system
Cleaning method
Facilitated handling / TRI.EASY design
System compatibility
Cross-generation system compatibility
Data connectivity
SmartInterface / real-time data
User interface
HMI-Software Visual 8

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine Height
1,875–2,030 mm
Machine Width
1,112–1,394 mm
Machine Depth
925–1,394 mm
Machine Weight
2,100–4,600 kg
Tablet Output
324,000–1,584,000 tablets per hour
Tablet Size Capacity
Up to 34 mm
Stations
45–110 max.
Footprint
Compact,space-saving design
Configuration
Single and double rotary presses
Layer Capability
Single and double layer tablets

Custom Options


Control panel type
HMI-Software Visual 8
Integration possibilities
Compatible with SmartInterface,Cross-generation system compatibility
Design flexibility
Single and double rotary presses,Single- and double-layer tablets
Turret changeover capability
Innovative turret changeover system
RFID integration
RFID Operator Login
Size options
Compact footprint
