Industrial stir fryer for food production

Maximize cooking efficiency with a multi-function stir fryer that excels in continuous stir-frying, mixing, and seasoning. Ideal for creating diverse dishes, this equipment ensures even heat distribution and prevents ingredient mushiness, making it a versatile choice for high-speed food production.

Stir-Fries, Mixes, Coats, and Bakes Foods

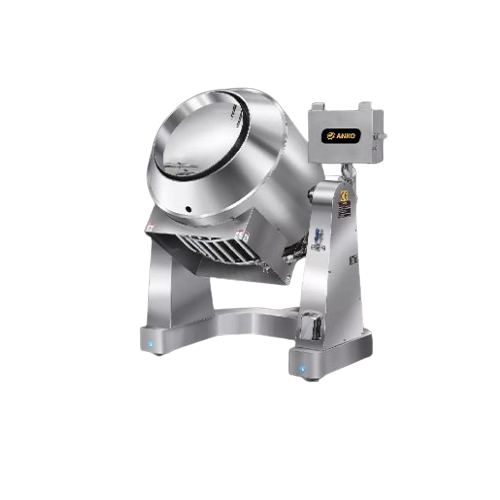

The SF Series from ANKO Food Machine is a versatile stir fryer designed for diverse culinary applications, including noodles, rice, and confectionery. Featuring a rotating spherical barrel with electronic ignition, it enables continuous, even stir-frying for high-quality outcomes. Capacities range from 1 L to 120 L, accommodating various commercial needs. The SF Series is ideal for food manufacturers and processors, facilitating stirring, mixing, baking, and seasoning operations. It boasts electronic speed control for precision and a unique inner barrel to prevent mushiness in delicate ingredients. The unit supports easy loading/unloading and offers dual rotation, enhancing operational flexibility. Constructed to withstand rigorous food production environments, options are available for different materials to ensure longevity and adherence to safety standards. Energy-efficient design and high-speed processing make it an essential component of modern food production lines.

Benefits

  • Enhances production efficiency with continuous high-speed operation.
  • Minimizes ingredient waste through precise electronic temperature control.
  • Adapts to various production scales with multiple capacity options.
  • Reduces processing time with dual-direction rotation capability.
  • Simplifies cleaning and maintenance, ensuring hygiene and safety compliance.

General


Applications
Meat products,Sauces,Snacks,Confectionery,Noodles,Sweets,Rice,Vegetable dishes
End products
Coffee blends,Baked biscuits,Seasoned vegetable stir-fry,Sesame snacks,Mushroom and vegetable stir-fry,Diced meat stir-fry,Fluffy fried rice,Stir-fried noodles,Chow mein,Stir-fried vermicelli,Peanut candies,Mixed vegetable dishes,Fried rice
Steps before
Ingredient Preparation,Slicing,Dicing,Shredding,Seasoning
Steps after
Cooling,Packaging,Freezing,Quality Control,Distribution
Input ingredients
rice,noodles,rice noodles,vermicelli,meat,vegetable,sesame,peanut,diced meat,shredded meat,coffee,pea,candy,biscuit,pistachio,herb
Output ingredients
fried rice,fried noodle,dry food,baked food
Market info

Technical Specifications


Capacity
1 L,2 L,120 L
Power
0.75 kW,0.2 kW
Dimensions
1,250 (L) x 1,400 (W) x 1,600 (H) mm
1,000 (L) x 850 (W) x 1,450 (H) mm
Barrel size
760 (Dia.) x 880 mm
502 (Dia.) x 570 mm
Barrel capacity
60 L,20 L
Gas consumption (LPG)
278,400 BTU/H
96,000 BTU/H
Gas consumption (Natural gas)
Max
Max
1.85 m³/ HR,Min
Weight (net)
425 kg,170 kg
Weight (gross)
660 kg,275 kg

Operating Characteristics


Working mechanism
Round inner cooking barrel
Integrated steps
Electronic ignition and even heat distribution
Batch vs. continuous operation
Continuous
Automation level
Electronically controlled
Direction of rotation
Clockwise and counterclockwise


Taiwan Patent No.
44252
USA Patent No.
DES366.182
Germany Patent No.
Nr. M9406112.2
Japan Patent No.
8-13067
France Patent No.
946232
China Patent No.
ZL93403731.X
England Patent No.
2040842

Physical Characteristics


Machine Footprint
SF-60
Barrel Size
SF-60
Barrel Capacity
SF-60
Weight (net)
SF-60
Weight (gross)
SF-60
Heating Nozzles Count
SF-60

Custom Options


Control panel type
Electronic Ignition System
Integration possibilities
Turnkey Planning
Spherical cooking barrel
Yes
