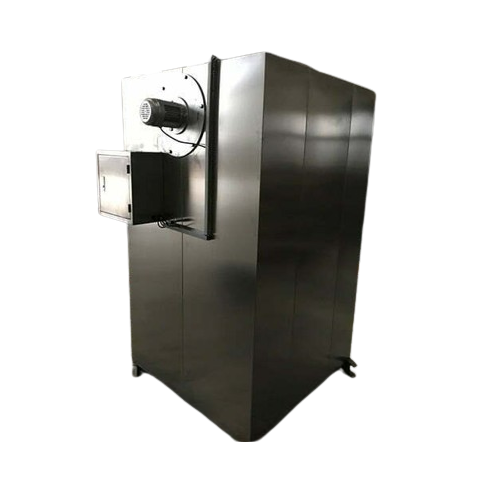

Industrial food drying oven

Achieve efficient dehydration and heat curing with precision control, ensuring uniform drying across various solid products, and reducing energy consumption significantly in continuous or batch operations.

Dries and Dehydrates Solids for Diverse Industries

The CT Series from Zhengzhou Taizy Machinery Co., Ltd. offers an industrial solution for drying and dehydrating solid materials across various sectors, including pharmaceuticals, food processing, and heavy industry. Engineered for both batch and continuous operations, these machines utilize a hot air circulation system to optimize heat transfer and moisture evaporation. Applications include processing herbal medicines, dried fruits, and chemical powders, making them versatile for end-products like jerky and patisseries. With models such as the CT-Ⅰ and CT-C-Ⅳ, capacities range to suit different scale requirements. Integration is seamless with automatic control options, enhancing productivity and reducing labor demands. The energy-efficient design includes options for using biomass pellets and air energy heat pumps, significantly lowering operational costs. Constructed in durable materials for various corrosive environments, the system ensures longevity and minimal maintenance, supported by optional custom engineering to fit specific operational needs.

Benefits

  • Enhances efficiency with up to 70% thermal efficiency, reducing energy costs.
  • Allows precise control over drying conditions, improving product consistency.
  • Adapts to a wide range of applications with versatile heating sources, like steam and infrared.
  • Facilitates seamless integration with batch or continuous operations, boosting productivity.
  • Minimizes environmental impact with closed-loop dehumidification, eliminating waste emissions.

General


Applications
Chemicals,Light industry,Heavy industry,Meat,Eggs,Fruits,Agricultural products,Nuts,Vegetables,Food products,Pastries,Aquatic products,Pharmaceuticals
End products
Fruit leathers,Chemical powders,Dehydrated vegetables,Dried pasta,Dried seafood,Smoked meats,Dried herbs,Jerky,Patisseries,Dehydrated eggs,Dried nuts,Fish meal,Herbal medicines,Dried fruits like mangoes and oranges
Steps before
Cleaning,Slicing,Pre-processing,Peeling
Steps after
Packaging,Storing,Quality Checking,Distribution
Input ingredients
fruits,vegetables,mangoes,oranges,kiwis,agricultural products,pharmaceutical materials,chemical materials,aquatic products
Output ingredients
dried fruits,dried vegetables,dried mangoes,dried oranges,dried kiwis,dehydrated agricultural products,dried pharmaceutical materials,dried chemical materials,dried aquatic products
Market info
Taizy Food Machinery is known for manufacturing industrial food processing equipment, specializing in engineered-to-order (ETO) machinery. They have a reputation for innovative, high-quality solutions tailored to meet various customer specifications globally.

Technical Specifications


Thermal Efficiency
35-70%
Drying Temperature
50–150°C (steam),50–350°C (electricity)
Automation
Automatic Temperature Control
Capacity
1000–4000 kg/once
Power
0.45–2.8 kW
Air Volume
3400–13800 m³/h
Baking Tray Count
24–192 pcs
Size (L×W×H)
1430×1200×2375 mm to 4380×2200×2620 mm
Supporting Drying Car Count
2–8 pcs
Steam Pressure
0.02-0.8 Mpa
Upper and Lower Temperature Difference
±2°C

Operating Characteristics


Working mechanism
Hot air circulation
Integrated steps
Automatic temperature control
Batch vs. continuous operation
Batch
Energy efficiency
35-45% thermal efficiency
Environment control
Closed circulatory system
Automation level
Automatic / Manual
Cleaning method
Manual

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm

Physical Characteristics


Machine footprint
Varies by model (e.g.,2430×1200×2375 mm for CT-I)
Control panel type
Automatic / Programmable
Discharge method
Tray discharge
Compact footprint
Yes
Baking trays
Up to 144 pcs depending on model
Supporting drying car
1-8 pcs depending on model
Tray size
Uniform / Interchangeable
Casing structure
Fully enclosed

Custom Options


Control panel type
Automatic/Manual
Heating source options
Steam/Electric/Infrared
Temperature control system
Automatic/Computer-controlled
Air distribution panel
Adjustable
