Industrial dissolver for high viscosity products

Optimize high-viscosity product dispersion with a robust dissolver designed for seamless integration into your production line, ensuring consistent, controlled processing even under demanding conditions.

Processes High-Viscosity Dispersions and Mixes Efficiently

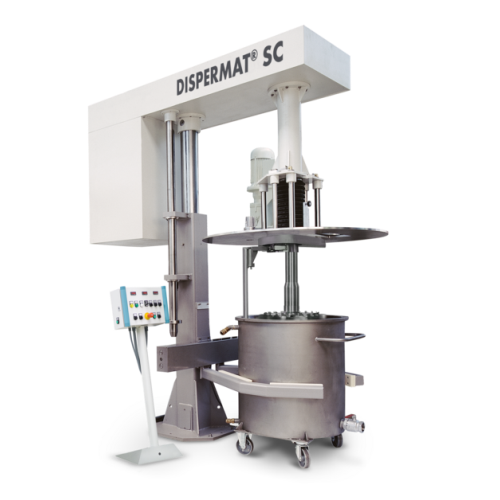

The DISPERMAT® SCA6 dissolver from VMA-GETZMANN is designed for versatile applications across various industries, including agrochemicals, automotive, and pharmaceuticals. Utilizing a robust hydraulic stand and advanced scraper technology, it ensures efficient dispersion and mixing even for high-viscosity substances. Its integrated spring-pressure scraper system continually redirects product towards the center of large containers, supporting volumes from 400 to 2000 liters. The equipment is PLC-controlled, offering precise process control with options for speed and safety system integration. Constructed with options for stainless steel, it caters to stringent chemical compatibility needs and meets safety directives for industrial operations. Customizable with accessories such as LED lighting and temperature sensors, the DISPERMAT® SCA6 is suitable for any demanding production line requiring reliable and repeatable dispersion results.

Benefits

  • Enhances efficiency with precise processing of high-viscosity materials using advanced scraper technology.
  • Decreases operational costs through reliable PLC-controlled automation and process repeatability.
  • Adapts seamlessly to diverse production environments with customizable configurations and accessories.
  • Increases safety and compliance with integrated safety equipment meeting industry regulations.
  • Simplifies maintenance and cleaning, reducing downtime and ensuring continuous productivity.

General


Applications
Biotechnology,Road marking paints,Printing inks,Architectural coatings,Ceramic / glass,Agrochemicals,Polishing agents,Liquid crystal displays,Cosmetics,Fuel cells,Ceramic pigments,Conductive coatings,Adhesives and sealants,Food products,Automotive paints,Batteries,Teflon coatings,Pharmaceuticals
End products
Teflon non-stick coatings,Lens polishing compounds,Anode slurry for batteries,Spice pastes,Silicon sealants,Porcelain tableware,Hydrogen fuel cells,Fertilizer concentrates,Exterior emulsions,Automotive base coats,Ceramic glazes,Facial creams,Screen printing inks,Silver conductive inks,Automotive clear coats,Cathode slurry for batteries,Oled screens,Protein biologics,Traffic line paints,Pain relief ointments
Steps before
Grinding,Pre-mixing,Dispersion,Size Reduction
Steps after
Coating,Packing,Quality Control,Documentation
Input ingredients
paints,varnishes,pigments,additives,printing inks,chemicals,plastics,construction chemistry,electronics,adhesives,coatings,pharmaceutical ingredients,cosmetic ingredients,microbiology samples,agrochemicals,ceramics
Output ingredients
dispersed paints,homogeneous varnishes,fine pigments,well-mixed additives,ready to use printing inks,processed chemicals,plastics formulations,homogenized construction materials,electronic components,adhesive solutions,coating layers,pharmaceutical formulations,cosmetic products,prepared microbiology samples,agrochemical solutions,ceramic products
Market info
VMA-Getzmann is renowned for manufacturing high-quality dispersing, mixing, and milling equipment, particularly for the chemical, coatings, and inks industries, specializing in engineered-to-order solutions that emphasize innovation, reliability, and technical excellence.

Technical Specifications


Power
15 – 55 kW
Product Capacity
30 – 2000 litres
Speed
100 - 985 rpm
Torque
876 – 1069 Nm
Container Capacity
500 – 2500 litres
Height Adjustment
Hydraulic
Control Type
PLC / SC / CN / C
Scraper System
Integrated spring pressure
Cover Type
Stable with product feed system
Process Control
DISPERWHEEL® speed adjustment,DISPERSAFE® TÜV-certified
Data Recording
USB Connectivity
Software Compatibility
WINDISP© 7
Height Measurement
Adjustable working range
Weight
4300 kg
Dimensions W x H x D
140 x 400 x 310 cm
Container Clamping Range
Ø 80 ‒ 150 cm
Container Height
85 ‒ 176 cm
Optional Accessories
LED lighting,PT100 temperature sensor,Liquiphant level switch,sight glasses,filling funnels

Operating Characteristics


Automation level
Manual / PLC / SC
Batch vs. continuous operation
Batch
Height adjustment
Hydraulic
Integration with control systems
PLC control option
Scrapper system type
Spring pressure integrated
Safety standards
Directive 2006/42/EC compliant
Process control features
DISPERWHEEL® speed adjustment
Modularity
Modular systems available
TÜV certification
DISPERSAFE®

Material Compatibility


Density/particle size
0.5–2.5 g/cm³ / 50–1000 µm


ATEX certification
Yes
Directive 2006/42/EC
Yes
TÜV Certification (EN ISO 13849-1)
Yes

Physical Characteristics


Machine footprint
140 x 400 x 310 cm (W x H x D)
Container capacity
500 ‒ 2500 litres
Container clamping range
Ø 80 ‒ 150 cm
Container height
85 ‒ 176 cm
Height adjustment
Hydraulic
Weight
4300 kg
Control panel type
Foil keyboard

Custom Options


Control panel type
CN / C / SC / PLC
Stand type
T6 Hydraulic Stand
Scraper arm
Exchangeable for different container sizes
Cover options
Integrated product feed system,LED lighting,PT100 sensor
