Industrial cooling system for packaging temperature control
Achieve precise temperature control and maximize energy efficiency in your production line with a robust cooling system designed to swiftly bring products to optimal packaging conditions while maintaining their quality.
Cools and Conveys Pasta and Snack Products

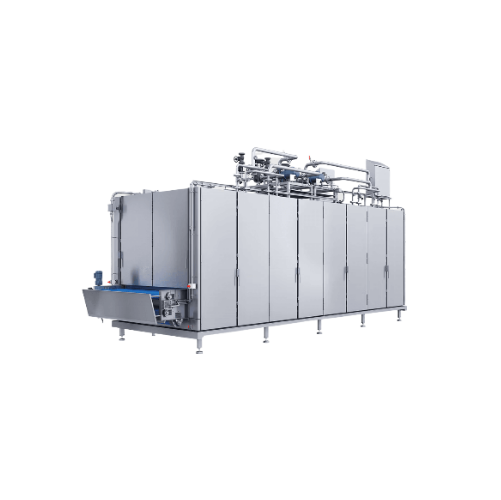

The F – Cooler from GEA is an industrial cooling conveyor designed to precisely cool and convey pasta and snack products like fusilli, potato chips, and cornflakes. Featuring a robust ventilation system with inverter-controlled ventilators, it utilizes freon/glycolyzed water to maintain optimal cooling. This equipment integrates seamlessly into food processing lines, supporting continuous, automated operations for efficient throughput. With stainless steel construction and rinsing ramps, maintenance is straightforward and contamination-free. Its versatile design can handle diverse product types, accommodating belt widths from 1500 to 2000 mm and cooling chamber lengths ranging from 4 to 12 meters, while offering up to 20 minutes of production accumulation. Ideal for food, beverage, and pharmaceutical industries, the F – Cooler supports maximum energetic efficiency and streamlined integration.
Benefits
- Enhances production efficiency with continuous, automated cooling and conveying.
- Reduces energy consumption by optimizing ventilation with inverter control.
- Maintains product quality with precise temperature control and up to 20 minutes of accumulation.
- Simplifies maintenance and cleaning with stainless steel construction and rinsing ramps.
- Easily integrates into existing lines, supporting a range of product sizes and cooling lengths.
- Applications
- Food,Snacks,Pasta,Fresh pasta,Breakfast cereals
- End products
- Muesli base flakes,Spaghetti,Shell pasta,Cornflakes,Instant noodles,Fusilli pasta,Tortilla chips,Cheese curls,Potato chips,Elbow macaroni,Breakfast bars,Granola,Oat clusters,Penne pasta
- Steps before
- Cooking,Heating,Portioning
- Steps after
- Packing,Packaging,Storage
- Input ingredients
- fresh pasta,snacks,breakfast cereals
- Output ingredients
- packaged fresh pasta,packaged snacks,packaged breakfast cereals
- Market info
- GEA is known for its expertise in engineering innovative and sustainable equipment and solutions, focusing on sectors such as food, beverages, pharmaceuticals, and energy, with a reputation for quality, efficiency, and advanced technological applications in industrial processing.
- Number of belts
- 3-6
- Belt width
- 1500-2000 mm
- Cooling chamber length
- 4-12 m
- Ventilation system
- Freon/glycolyzed water
- Structure material
- Stainless steel
- Energy efficiency
- High
- Collecting surface capacity
- Up to 20 minutes of production
- Machine washing feature
- Rinsing ramps,inclined bottom panel
- Cooling type
- Air cooling
- Working mechanism
- Conveying belts with ventilation system
- Integrated steps
- Cooling and transporting
- Automation level
- PLC-controlled ventilators
- Cooling method
- Freon/glycolyzed water air cooling
- Cleaning method
- CIP with stainless-steel structure
- Batch vs. continuous operation
- Continuous
- Energy efficiency
- Optimized treatment times
- Density/particle size
- 0.5–2.5 g/cm³ / 50–1000 µm
- Machine Footprint
- Varies based on belt size and cooling chamber length
- Belt Width
- 1500-2000 mm
- Cooling Chamber Length
- 4-12 m
- Number of Belts
- 3-6
- Structure Material
- Stainless Steel
- Accessibility
- Openable lateral panels hinged for accessibility
- Discharge Method
- Conveying belts transport
- Washing Process
- Rinsing ramps for reduced machine washing time
- Drainage
- Inclined bottom panel for water drainage
- Control panel type
- PLC,HMI integrated
- Belt configuration
- 3-6 belts
- Accessibility features
- Openable lateral panels
- Collecting surface capacity
- Up to 20 minutes of production
