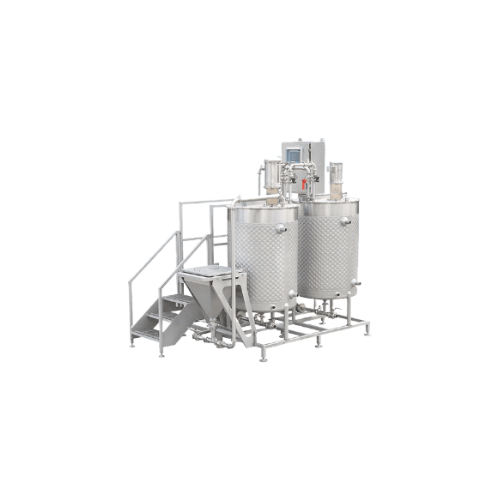

Industrial brine mix and chill system

Streamline your production with a versatile system that seamlessly blends and chills brine solutions, marinades, and sauces, ensuring consistent quality and efficiency for diverse food applications.

Mixes and Chills Brine for Food Processing

The MEPSCO Brine Mix and Chill System, from JBT FoodTech, offers a versatile solution for food processors requiring efficient brine and marinade preparation. This system stands out with its high-shear mixers and load cell technology, ensuring precise ingredient incorporation and consistent end-product quality. It’s engineered for applications in meat, poultry, seafood, and ready meals, producing items like teriyaki marinades and BBQ seasonings. With tank capacities ranging from 50 to 1,200 gallons, it supports continuous, customizable operations, seamlessly integrating into existing production lines with its modular design. The touch-screen control panel allows for easy parameter adjustments, and with stainless steel construction, it ensures hygienic processing and straightforward cleaning.

Benefits

  • Ensures consistent product quality through precise ingredient mixing with load cell technology.
  • Reduces production downtime with customizable, modular tank configurations.
  • Enhances operational efficiency by integrating seamlessly into existing workflows.
  • Maintains high hygiene standards with stainless steel construction and easy-clean design.
  • Increases production flexibility with customizable settings for various brine and marinade types.

General


Applications
Ready meals,Sauces,Food additives,Marinades,Meat processing,Seafood processing,Dressings,Poultry processing,Seasonings,Brine solutions
End products
Shrimp marinade,Turkey breast brine,Pickle brine,Béchamel sauce,Frozen ready meals,Teriyaki marinade,Flavor enhancers,Bbq seasoning mix,Chicken brine injection,Italian dressing
Steps before
Ingredient Preparation,Water Measuring
Steps after
Injection,Packaging,Storage
Input ingredients
brine,marinade,water,various ingredients
Output ingredients
mixed brine,chilled brine,uniform mixture
Market info
JBT is known for manufacturing industrial ETO equipment, specializing in food processing and airport ground support systems. They are reputed for innovative solutions and reliable service in industries requiring sophisticated automated systems and machinery.

Technical Specifications


Capacity
50–1,200 gallons
Tank material
Stainless-steel
Mixing method
High-shear mixers
Control panel type
Touch-screen
Configuration
Multiple configurations
Load cells
For weighing
Power options
2hp,5hp,7hp
Automation
Programmable touch-screen control panel
Cleaning
Open concept for easy cleaning
Eductor size
Two-inch
Chilling options
Jacketed tanks,heat exchanger

Operating Characteristics


Automation level
PLC / Touch-screen
Batch vs. continuous operation
Batch / Continuous
CIP/SIP
Manual / CIP
Cleaning method
CIP / Easy cleaning
Configuration flexibility
Modular / Customizable
Load cell integration
Yes
Mixing speed control
Variable / Adjustable
Sanitary design
Stainless steel
User interface
Touch-screen control panel
Temperature control
Jacketed tanks / Heat exchanger

Material Compatibility


Cleanability
High due to stainless-steel construction
Corrosive resistance (e.g. acids)
Stainless-steel construction provides resistance
Density/particle size
Adaptable to various brine densities

Physical Characteristics


Tank size options
50 to 1,200 gallons
Material
Stainless steel
Control panel type
Touch-screen
Load cells
For weighing water and ingredients
Modular design
Adaptable settings
Mix tank configuration
Multiple options
Jacketed tanks
Improved chilling speeds
Eductor
Two-inch,floor level access

Custom Options


Control panel type
Touch-screen
Tank size options
50 to 1,200 US gallons
Modular design
Yes
Mix tank configurations
Multiple configurations available
Motor sizes
2hp,5hp,7hp
Eductor size
Two-inch
Heat exchanger options
Available
Load cell integration
Yes
