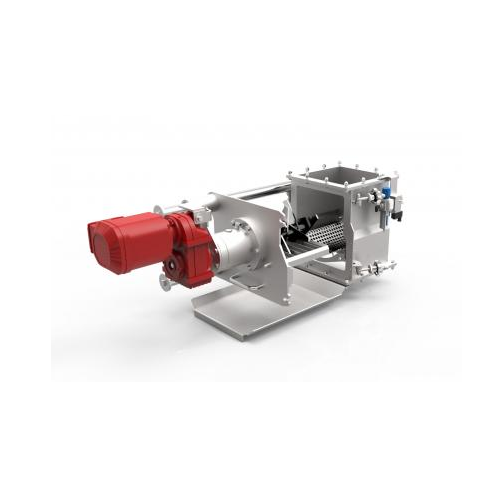

Industrial breaker for reducing large lumps and agglomerates

Efficiently break down challenging materials with a robust solution designed to reduce bulk solids to desired particle sizes while minimizing energy consumption, ensuring optimal integration within your processing line.

Reduces and Processes Large Materials into Finer Sizes

The Dinnissen Breaker is engineered to handle challenging milling tasks across various industries, including food, pharma, and chemicals. Featuring a robust rotor/stator principle, this breaker efficiently processes large chunks into smaller grains, ranging from 10 mm to 150 microns. Dinnissen’s design ensures high throughput capacities of up to 80 tons per hour, using low rotational speeds to minimize energy consumption and prevent excess heat generation, crucial for processing moist or greasy products like cocoa and filter cake.

Integration into existing production lines is seamless, with options for automated control systems and remote monitoring. Constructed from high-quality stainless steel, it meets EHEDG hygiene standards, making it ideal for sensitive applications such as infant food and pharmaceutical granules. The unit’s dust-proof design and easy-access sliding drawer simplify cleaning and maintenance, reducing downtime for operators.

With customizable rotor versions and the flexibility to test products at Dinnissen’s D-Innocenter, this equipment offers tailored solutions to meet precise production needs, supported by comprehensive engineering and after-sales support.

Benefits

  • Optimizes energy use with low-speed operation, lowering operational costs.
  • Enhances productivity by processing up to 80 tons per hour with minimal heat generation.
  • Ensures consistent quality for sensitive products with EHEDG-certified hygienic design.
  • Minimizes maintenance time through easy-access cleaning features, boosting uptime.
  • Customizable configurations meet specific production requirements, increasing process efficiency.

General


Applications
Food,Chemicals,Feed,Pet food,Pharma,Infant food,Cocoa cake,Minerals,Filter cake,Cinnamon sticks,Aquafeed,Recycling
End products
Cinnamon powder,Cocoa powder,Infant formula,Recycled plastic granules,Ceramic powders,Animal feed pellets,Fish feed pellets,Pet biscuits,Mineral dust,Pharmaceutical granules
Steps before
Grinding,Intake,Conveying,Handling
Steps after
Sifting,Screening,Packaging,Filling
Input ingredients
large chunks,lumps,agglomerates,moist products,greasy products,elastic materials,tough materials,fibrous structure
Output ingredients
smaller chunks,grains,dust particles,fine powders,fineness from 150 microns to 10 mm
Market info
Dinnissen is renowned for its expertise in process technology, specializing in innovative solutions for powder handling, mixing, and bulk materials processing for various industries, including food, feed, and chemicals, with a reputation for quality and custom engineered solutions.

Technical Specifications


Capacity
100 kg to 80 tons per hour
Fineness
150 microns to 10 mm
Rotor/Stator Principle
Yes
Energy Consumption
Low
Material Compatibility
Moist and greasy products
Sifting System
Optional,removable
Construction
Robust,long service life
Design
Hygienic and dust-proof
EHEDG Version
Available
Automation
In-house production,quality control,and testing
Cleaning
Easy,rotor is mounted on one side
Capacity Range
Depending on product and fineness

Operating Characteristics


Working mechanism
Rotor/Stator principle
Batch vs. continuous operation
Batch / Inline Continuous
Low rotational speed
High capacity with low energy consumption
Material compatibility
Hard,elastic,tough,fibrous
Rotor versions
Different options available for desired fineness
Sifting section
Optional removal with sliding drawer
Cleaning method
Easy cleaning and inspection
Hygienic design
EHEDG certification available
Energy efficiency
Minimum energy consumption,high capacity
Flexibility
Handles from large chunks to fine powders

Material Compatibility


Abrasion resistance
High
Biological compatibility
Suitable for food and pharma
Cleanability
Hygienic,EHEDG version available
Corrosive resistance (e.g. acids)
High

Product type Characteristics


Breaking Method
Rotor/stator principle

Physical Characteristics


Machine footprint
N/A
Feed/discharge method
N/A
Compact footprint
N/A

Custom Options


Control panel type
Touchscreen / PLC
Integration possibilities
SCADA / MES
Custom rotor versions
Available for desired fineness
Sifting section
Removable via sliding drawer
EHEDG version
Available for hygiene
